INP-72A0018MIA

SKU 236322

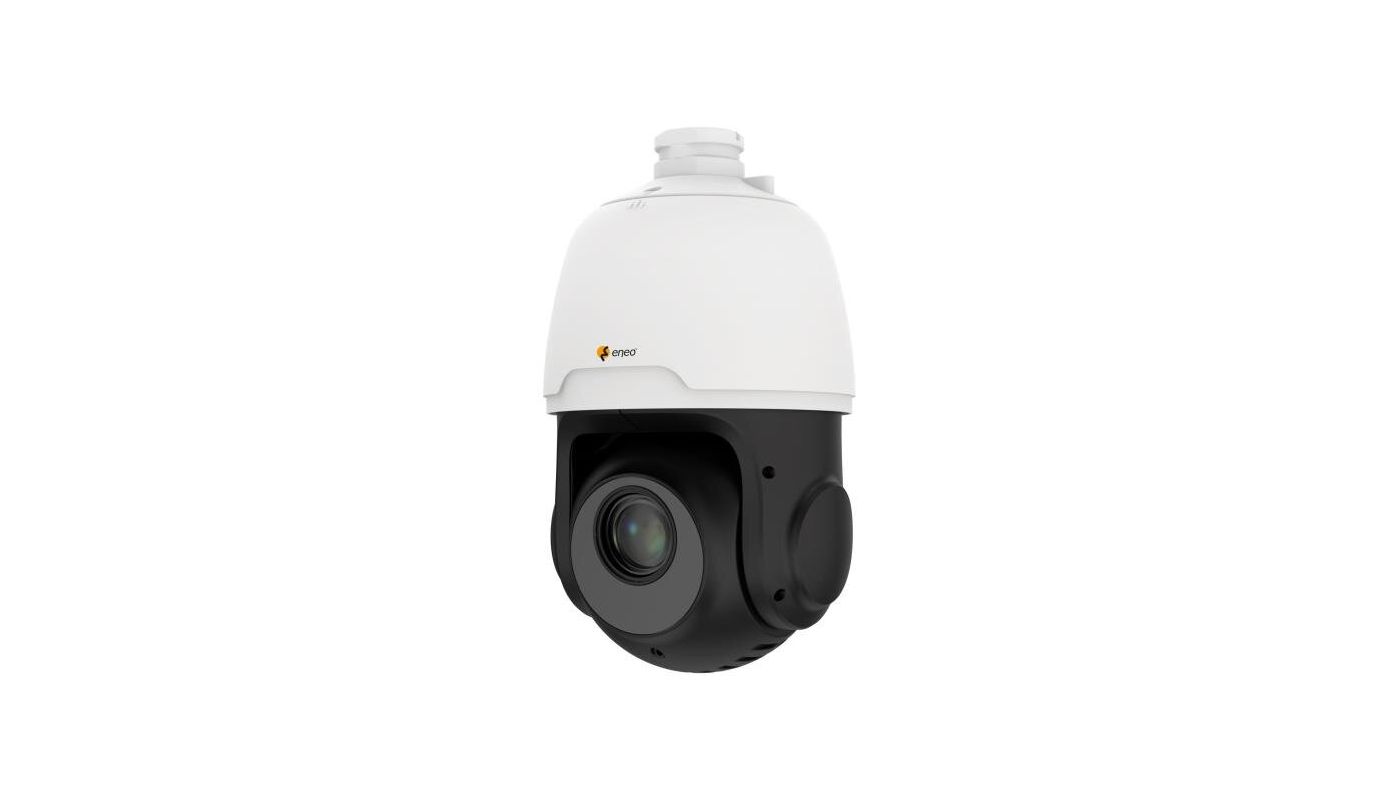

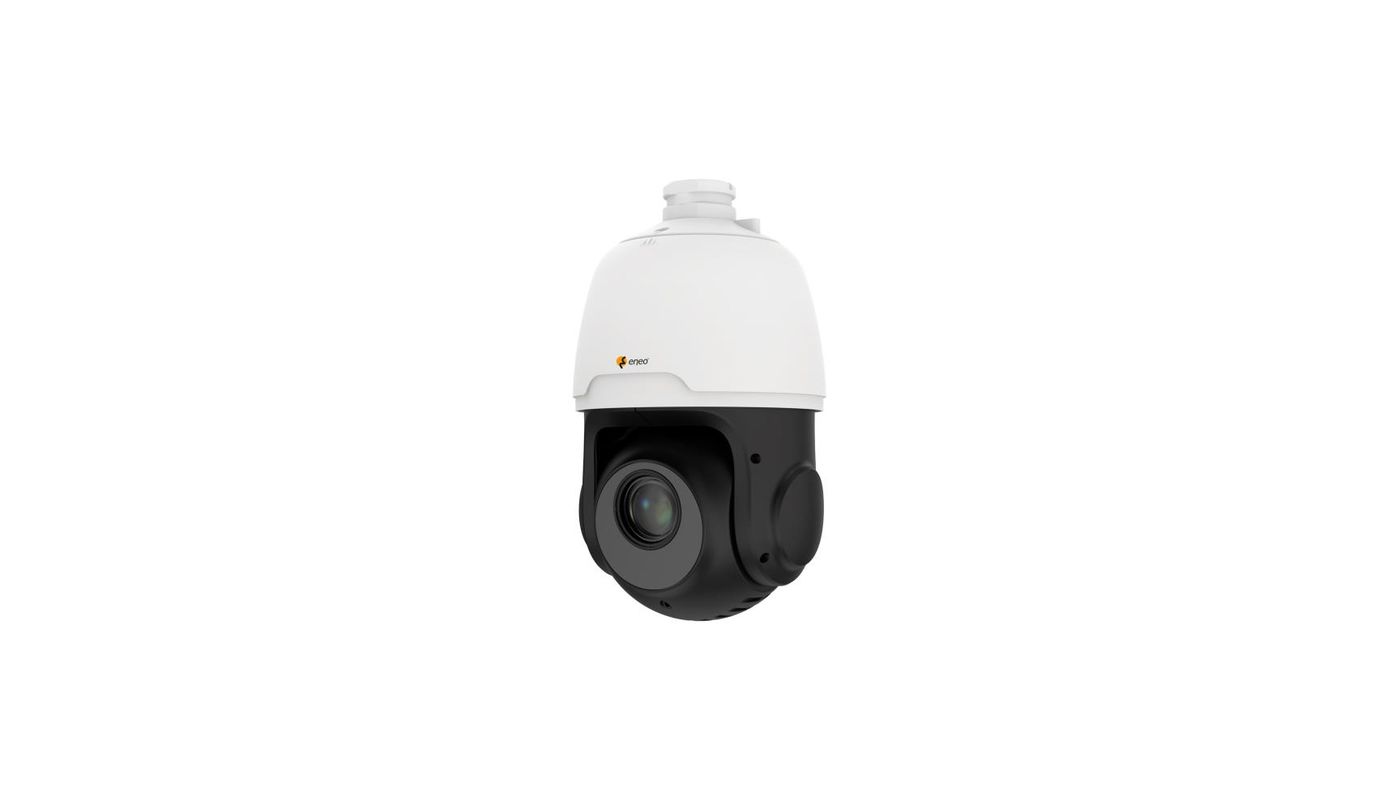

Network Dome, PTZ, 18x, 1920x1080, Day/Night, WDR, AI, Alarm, Audio, 12VDC, PoE+, IP6
Data sheet

Specifications

Manufacturer order number
236322
Brand
eneo
EAN/GTIN
4260229840535
Series
eneo IN-Serie

Camera

Camera shape
PTZ
Chip size
1/2,7"
Resolution standard
2 MP
Recording sensor
CMOS, SC200AI
Photosensitivity
0,0003 Lux bei F1,6
System
True Day&Night
Low Speed Shutter
Yes
Manual Electric Shutter (MES)
1-5~1-20,000sec.
Flickerless function
Yes
Backlight compensation
Yes
Day/night switching
Switchable IR Filter (ICR)
Day/night mode
Automatic,Day,Night,Image,Time
White balance
Automatic,Manual
Signal-to-noise ratio
34 dB

Video

Resolution (extended)
1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3),352:240 (4:3)
Video Compression
H.264, H.264+, H.265, H.265+, M-JPEG
Data stream types
Triple-Stream(Main/Sub/Mobile)
Image transfer rate max.
30 fps

Lens

Lens Type
Auto Focus Zoom
Focal length
5 - 90 mm
MOD (Minimum Object Distance)
0.1 m
Horizontal angle of view
53,3 - 3,8°

Display

Image resolution max.
1920x1080

DORI

Perceiving (25px/m)
78.8 m
Watch (62px/m)
31 m
Detect (125px/m)
14.9 m
Identify (250px/m)
6.5 m

Functions

Multicast
Yes
Motion detector
Yes
Alarm processing
recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,alarm out,Cloud Upload
Tours
1 selectable tour
Turning range
360 °
Speed (manual control)
80 °/sec
Speed (Target Approach)
120 °/sec
Audio support
Yes
Audio
2 Way Audio
Password
Administrator and User
Internal memory
microSD card slot
Menu languages
English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
Browser
Edge, Firefox, Google Chrome, Safari
Digital Noise Reduction (DNR)
Yes
Privacy Zone
Areas-ON/OFF switchable

Network

Network Protocols
DDNS, DHCP, DNA, FTP, HTTP, HTTPS, NTP, RSTP, RTP, SMTP, TCP-IP, UPnP

Interfaces / Inputs/ Outputs

External connections
RJ-45,Audio input/output,Alarm in/output,12VDC input (DC plug),connection cable approx.45cm,micro SD card slot 256 GB
Alarm inputs
1
Control Interfaces
Ethernet

General

Wide Dynamic Range (WDR)
WDR 120dB
Lighting
Infrared
Zoomfactor (optical)
18
Dimensions (WxHxD) (extended)
160x270mm
Illumination range
Approx. 100m
Color (Housing)
RAL9003,Pantone P 179-1,schwarz
Housing type
Outside
Housing material
Aluminium
Camera Type
Face, License plate recognition, People counting, Retail Intelligence
Power consumption
22 W
Mounting type
Wall
ONVIF
ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3at
ESC
1/5 ~ 1/20.000sec.
Protection
IP66
SDK
upon request
Power supply
12VDC, PoE+
Temperature Range (Operating)
-30°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
Text overlay
Switchable on/off

Parts supplied

Scope of delivery
manual,wall bracket,bag of screws

Notes

Remark
NDAA compliance under Section 889,The face detection and license plate recognition functions are only available with an inserted SD card or in conjunction with a recorder from the eneo IN series.,To guarantee you an optimum user experience,we recommend th

Main Features

  • 1/2.7" SmartSens CMOS sensor
  • Maximum resolution 1920x1080 pixels, 30fps
  • AI analysis functions including object classification
  • WDR 120dB, 3D-DNR noise reduction
  • Motorised autofocus zoom lens 18x 5.0-90mm
  • Smart Codec H.265/H.264, multi-streaming
  • Browser independent (Edge, Safari, Firefox, Chrome)
  • Supports ONVIF profiles S/T/G/M
  • Local storage via Micro SD card
  • Audio & alarm input and output
  • NDAA compliance
  • IR LED illumination, IP66
