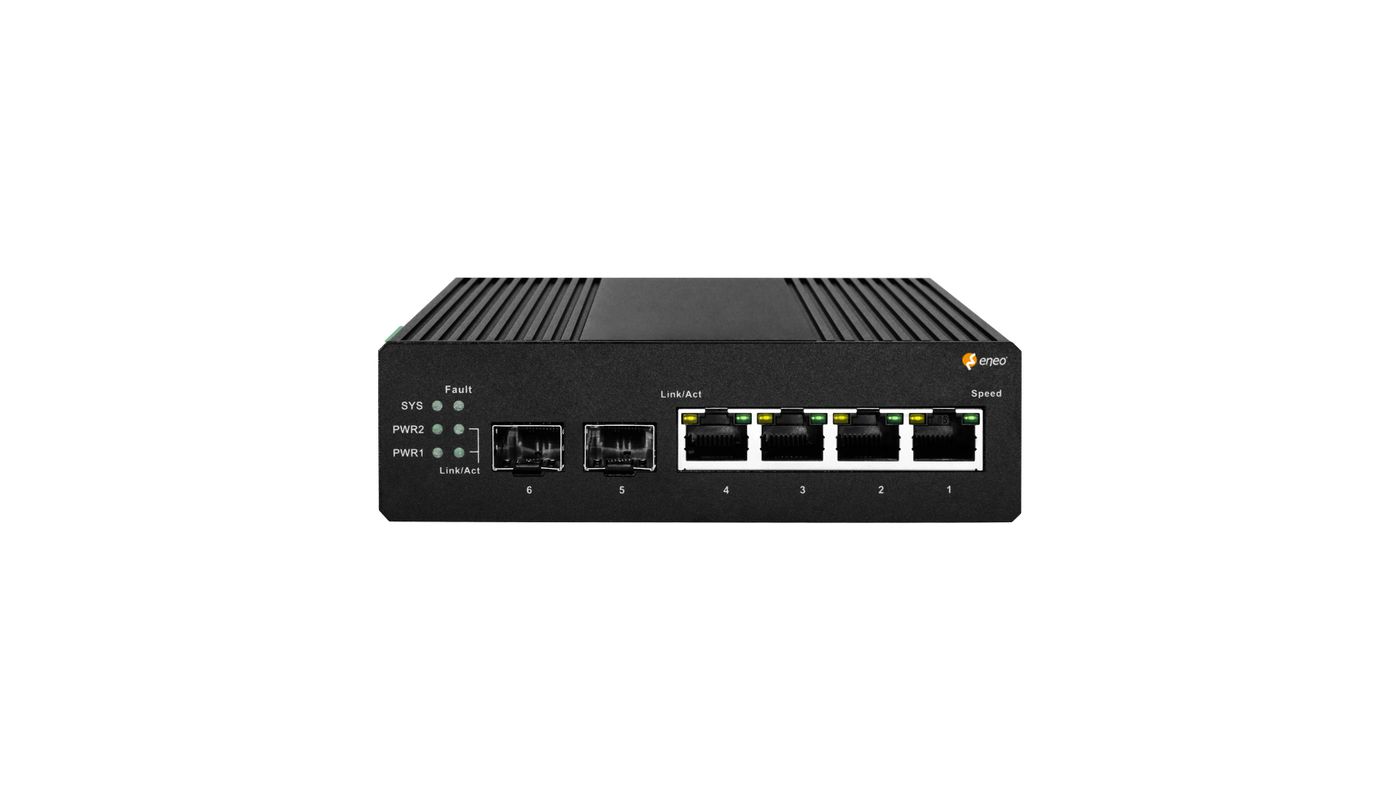

eneo NSMI-4004M0A

SKU 242371
Gigabit Switch Industrial, Managed, 4x PoE, 2xSFP, 30W each Port, -40°C~75°C, 44~57 VDC, w/o power supply
Data sheet

Specifications

Brand
eneo
EAN/GTIN
4260229841631
Manufacturer order number
242371
Series
eneo Switch

Functions

Multicast
Yes
QoS
DSCP Priority, QoS, WRR

Network

Eneo _netzwerkstandards
IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p QoS, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
Internal Switching Capacity (Gbit)
12 Gbps
Security
Fast Ring, Password, Port Isolation, Radius Authentication
VLAN
Yes

Interfaces / Inputs/ Outputs

Ethernet interface
1000Base-T, 100Base-TX, 10Base-T
Ports
4x 10/100/1000Base-T

General

Design
DIN Rail Module

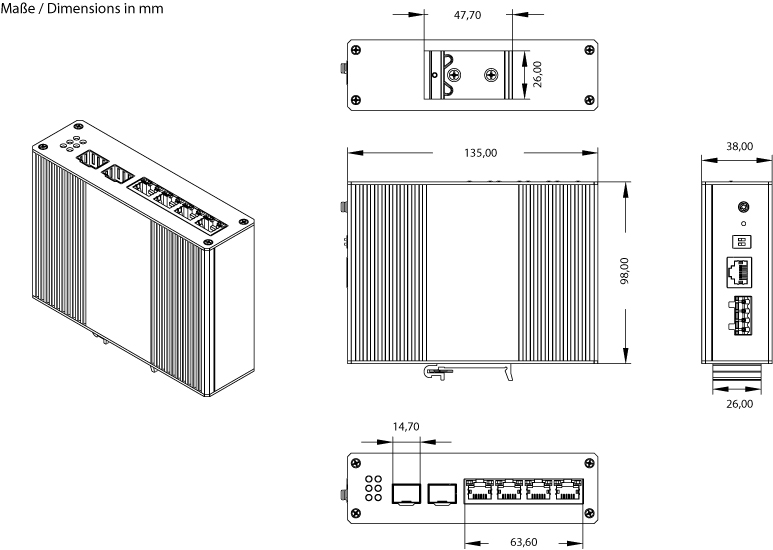

Dimensions (WxHxD) (extended)
38,5x136x108mm
ESD protection
IEC61000-4-2, IEC61000-4-5
Fan
No
Management
Yes
Mounting type
DIN Rail, Wall
Number of PoE ports
4
PoE Budget (Total)
110 W
Power consumption
10 W
Power over Ethernet
IEEE 802.3af, IEEE 802.3at
Power supply
44-57VDC
Temperature Range (Operating)
-40°C ~ +75°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
Type
Smart Switch
Weight
1.168 kg

Parts supplied

Scope of delivery
manual,1x DIN Rail

Notes

Remark
No power supply included. A suitable,optionally available power supply must be used to achieve the full specified PoE budget value.

Additional Productinformation

Application: The industrial PoE switch is ideal for small to mid-sized video surveillance setups in demanding environments. Its fanless design, wide temperature range (-40–75 °C), and redundant DC input make it suitable for industrial sites, outdoor use, and transportation systems. The plug-and-play setup enables quick and simple deployment.

External Power Supply: The recommended standard power depends on the performance of the external power supply unit in industrial quality. This product has 4 PoE ports. In terms of compatibility with a 60W power supply, the PoE power is approximately 50W. If 4 ports are set up with a 120W industrial power supply, a power output of up to 110W can be provided.

Main Features

  • 4 RJ45 ports with 10/100/1000 Mbps
  • 2 Gigabit SFP ports for fiber optic uplink
  • 4 PoE+ ports, each with up to 30W power
  • Total PoE power: up to 110 watts,
  • depending on the connection
  • Supports IEEE 802.3af/at standards
  • High EMC protection level
  • Supports VLAN, ACL, and ERPS ring network
  • Redundant power supply 44-57VDC
  • Robust IP30 housing, DIN-RAIL or wall mounting
  • Operating temperature range: -40-75°C
  • Power supply not included
