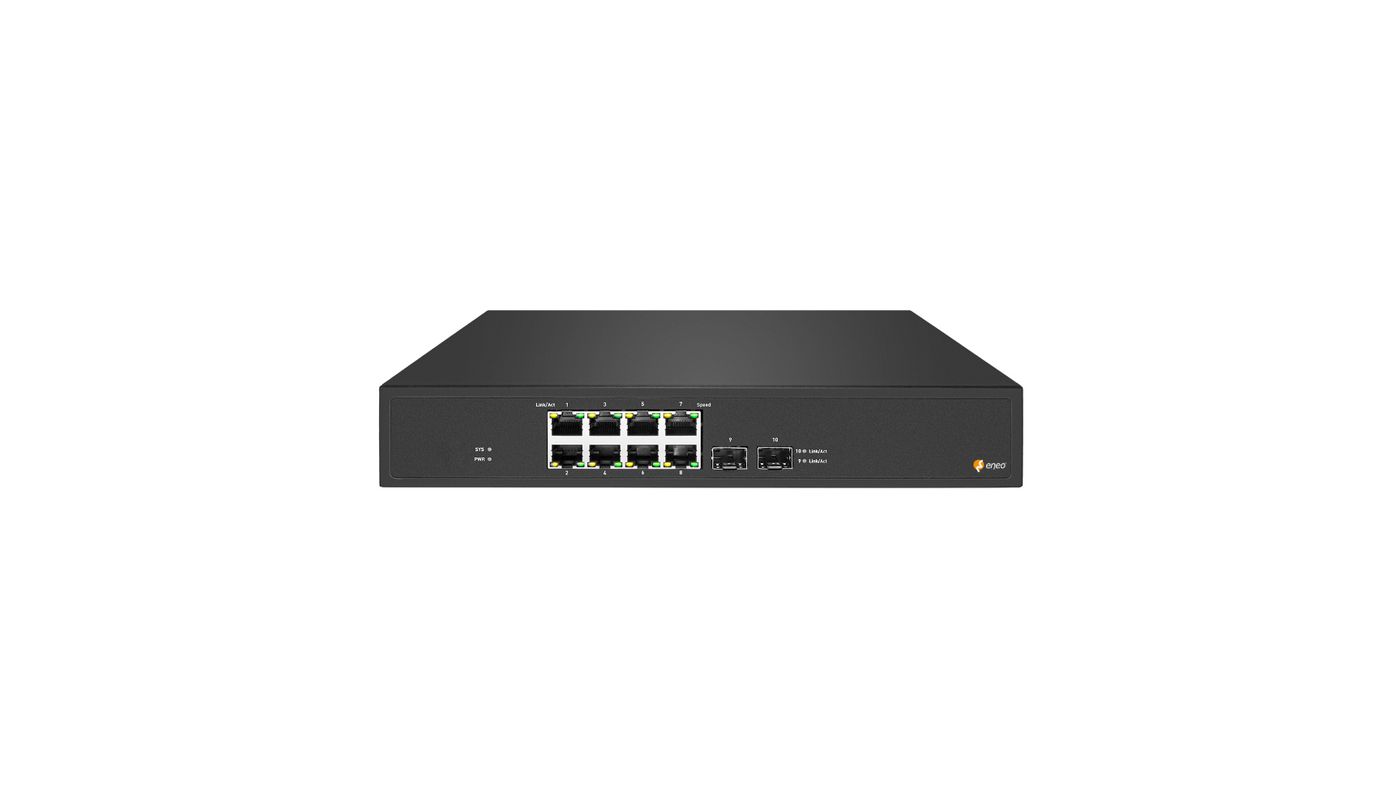

NSUR-1008M0A

SKU 242363
Gigabit Switch Rack, Unmanaged, 8x PoE, 2xSFP, max. 30W each Port, integrated Power Supply max. 150W
Data sheet

Specifications

Manufacturer order number
242363
Brand
eneo
Series
eneo Switch

Network

Eneo _netzwerkstandards
IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX
Internal Switching Capacity (MP per second)
14.88 Mpps
Internal Switching Capacity (Gbit)
20 Gbps

Interfaces / Inputs/ Outputs

Ethernet interface
1000Base-T, 100Base-TX, 10Base-T
Ports
1000base-T

General

Design
Desktop

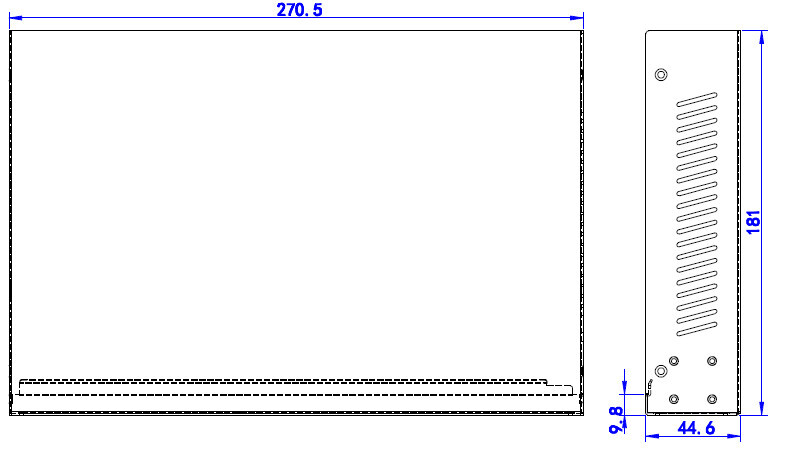

Dimensions (WxHxD) (extended)
44.5x271x181.5mm
Weight
0.6 kg
Number of PoE ports
8
Type
Unmanaged
Power consumption
150 W
Fan
No
Management
No
Mounting type
19" Rack Installation, Desktop
PoE Budget (Total)
130 W
Power over Ethernet
IEEE 802.3af, IEEE 802.3at
Power supply
100~240VAC
Temperature Range (Operating)
0°C ~ +45°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
Application environment
inside
ESD protection
IEC61000-4-2, IEC61000-4-5

Parts supplied

Scope of delivery
manual,19\" rack mount angle,power cord

Additional Productinformation

Possible Application Examples

Video Surveillance & Security Systems

Perfect for powering multiple IP cameras via PoE while simultaneously handling data traffic over a fiber optic cable to the recording device or network center via SFP. Ideal for parking garages, outdoor areas, or large building complexes.

Office Infrastructure

Designed for modern offices where WLAN access points, VoIP phones, and network printers require PoE. The switch can power these devices directly, reducing cable clutter and eliminating the need for additional power supplies.

Smart Building / Building Technology

Control of IoT devices such as sensors, access control systems, or lighting via PoE. The robust operating range also makes it suitable for distribution cabinets or technical rooms with ambient temperatures up to 45 °C.

Event Technology / Mobile Networks

Temporary use at events, trade shows, or outdoor installations where reliable network cabling is needed with limited resources. The switch is easy to transport, set up, or integrate into rack systems.

Main Features

  • 8 RJ45 ports with 10/100/1000 Mbps
  • 2 Gigabit SFP fiber ports for uplink
  • 8 PoE+ ports, up to 30W per port
  • Total PoE power budget: 130 Watts
  • Supports IEEE 802.3af/at standard
  • Store-and-forward switching mode
  • MAC address auto-learning & aging
  • Switching capacity: 20 Gbps backplane
  • Forwarding rate up to 14.88 Mpps
  • Jumbo frame support up to 10K bytes
  • Sturdy metal case, 271×181×44mm
  • Operating temperature: 0-45°C
