NSMR-2008M0A

SKU 242366
Gigabit Switch Rack, Managed, 8x PoE, 2xSFP, max. 30W each Port, internal Power Supply max. 150W
Data sheet

Specifications

Manufacturer order number 242366
Series eneo Switch
Brand eneo
Design Desktop

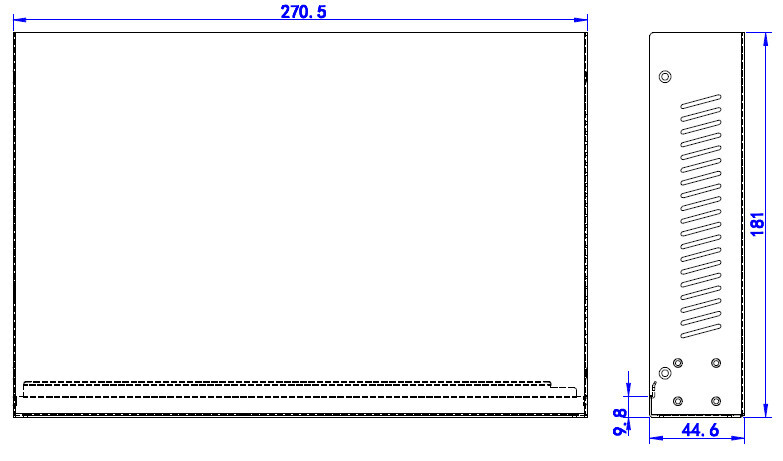

Dimensions (WxHxD) (extended) 44,5x271x181,5mm
ESD protection IEC61000-4-2, IEC61000-4-5
Eneo _netzwerkstandards IEEE 802.1p QoS, IEEE 802.1p QoS, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
Ethernet interface 1000Base-T, 100Base-TX, 10Base-T
Fan No
Internal Switching Capacity (Gbit) 20 Gbps
Internal Switching Capacity (MP per second) 14.88 Mpps
Management Yes
Mounting type 19" Rack Installation, Desktop
Multicast Yes
Number of PoE ports 8
PoE Budget (Total) 150 W
Power over Ethernet IEEE 802.3af, IEEE 802.3at
QoS DSCP Priority, QoS, QoS, QoS, QoS, WRR
Rack installation No
Scope of delivery manual,power cord
Security Password, Port Isolation
Temperature Range (Operating) 0°C ~ +45°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
Type Smart Switch
VLAN Yes
Weight 1.35 kg

Main Features

  • 8 RJ45 ports with 10/100/1000 Mbps

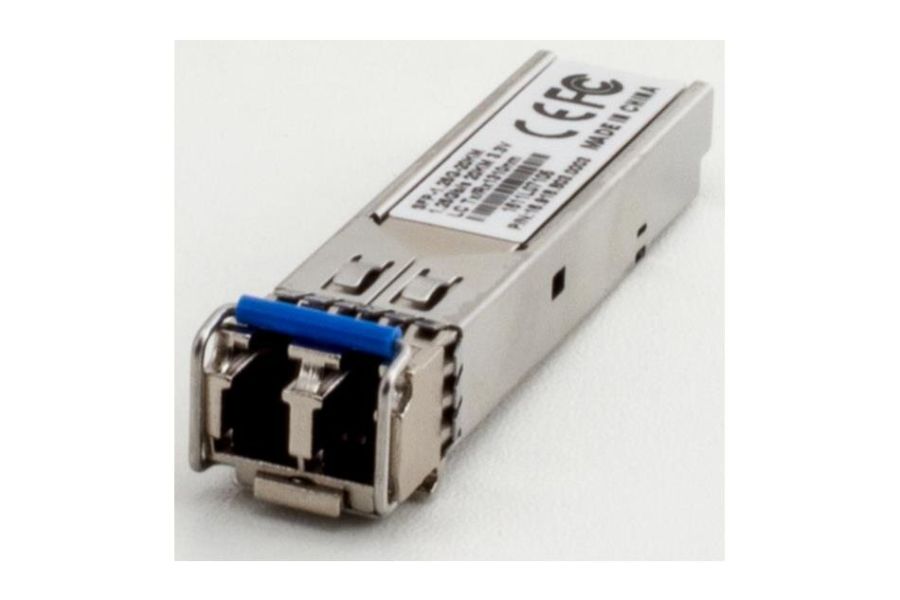

  • 2 Gigabit SFP ports for fiber optic uplink
  • 8 PoE+ ports, each with up to 30W power
  • Total PoE power: up to 150 watts
  • Supports IEEE 802.3af/at/az standards
  • Silent operation thanks to fanless design
  • Supports MAC address auto-learning and auto-aging
  • Supports QoS, port mirroring, and link aggregation protocol
  • PoE watchdog automatically detects and restarts PD devices
  • Supports energy-efficient Ethernet (802.3az)
  • Robust 19" metal housing, 271×182×45 mm
  • Operating temperature: 0-45°C
