NSMR-2016M0A

SKU 242367
Gigabit Switch Rack, Managed, 16x PoE, 2xSFP, max. 30W each Port, integrated Power Suppply max. 250W
Data sheet

Specifications

Manufacturer order number
242367
Brand
eneo
Series
eneo Switch

Functions

Multicast
Yes
QoS
DSCP Priority, QoS, WRR
Security
Password, Port Isolation

Network

Eneo _netzwerkstandards
IEEE 802.1p QoS, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
Internal Switching Capacity (Gbit)
36 Gbps
VLAN
Yes

Interfaces / Inputs/ Outputs

Ethernet interface
1000Base-T, 100Base-TX, 10Base-T

General

Design
Desktop

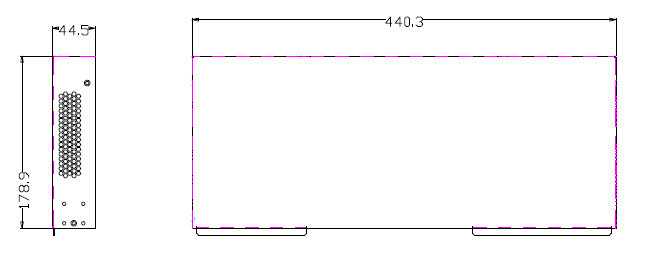

Dimensions (WxHxD) (extended)
44,5x440x180mm
Weight
3.3 kg
Number of PoE ports
16
Type
Smart Switch
Fan
Yes
Management
Yes
Mounting type
19" Rack Installation, Desktop
PoE Budget (Total)
225 W
Power over Ethernet
IEEE 802.3af, IEEE 802.3at
Temperature Range (Operating)
0°C ~ +45°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
ESD protection
IEC61000-4-2, IEC61000-4-5

Parts supplied

Scope of delivery
manual,power cord

Main Features

  • 16 RJ45 ports with 10/100/1000 Mbps
  • 2 Gigabit SFP ports for fiber optic uplink
  • 16 PoE+ ports, each with up to 30W power
  • Total PoE power: up to 225 watts
  • Supports IEEE 802.3af/at/az standards
  • Supports MAC address auto-learning and auto-aging
  • Supports QoS, port mirroring, and link aggregation protocol
  • PoE watchdog automatically detects and restarts PD devices
  • Supports energy-efficient Ethernet (802.3az)
  • Robust 19" metal housing, 440×190×45 mm
  • Operating temperature: 0-45°C
