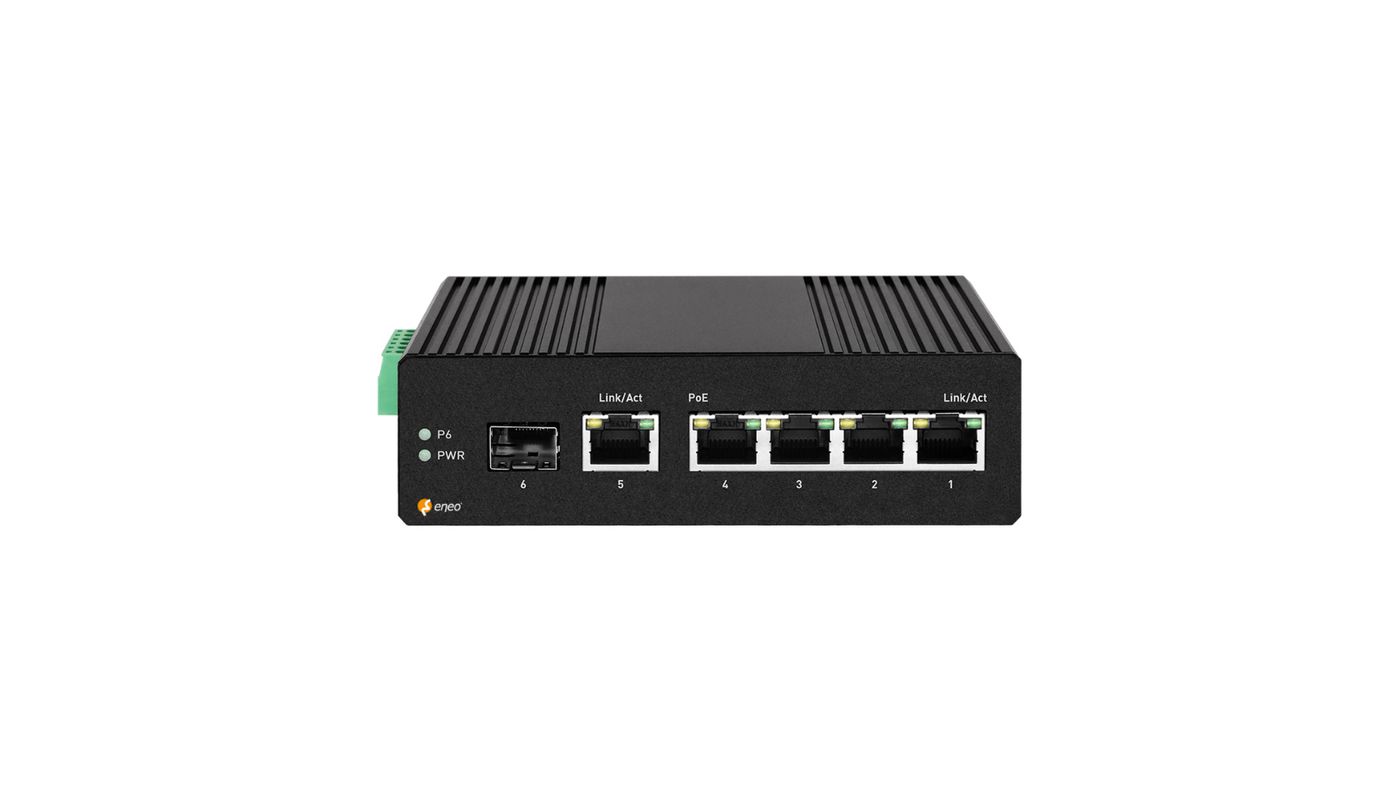

NSUI-3004M0A

SKU 242369
Gigabit Switch Industrial, Unmanaged, 4x PoE, 1xRJ45, 1xSFP, 30W each Port, -40°C~75°C, 44~57 VDC
Data sheet

Specifications

Manufacturer order number 242369
Series eneo Switch
Brand eneo
Design DIN Rail Module

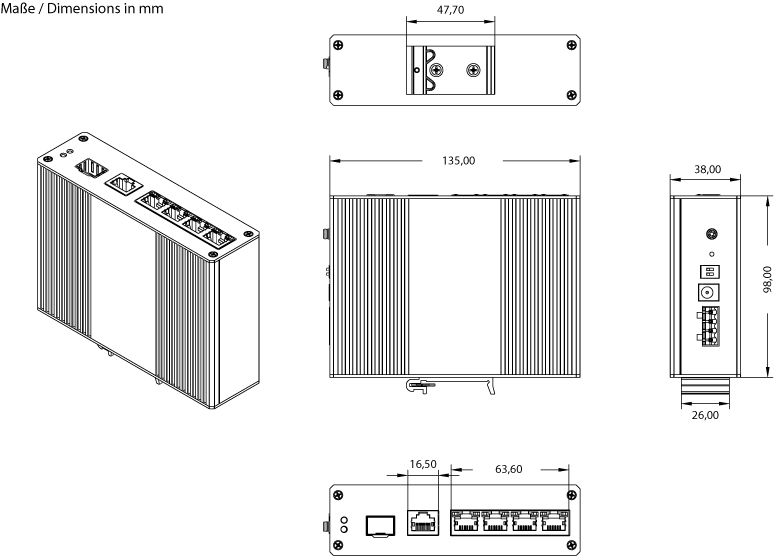

Dimensions (WxHxD) (extended) 38,5x136x108mm
ESD protection IEC61000-4-2, IEC61000-4-5
Eneo _netzwerkstandards IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
Ethernet interface 1000Base-T, 100Base-TX, 10Base-T
Fan No
Internal Switching Capacity (Gbit) 12 Gbps
Internal Switching Capacity (MP per second) 8.9 Mpps
Management No
Mounting type DIN Rail, Wall
Number of PoE ports 4
PoE Budget (Total) 115 W
PoE Standard IEEE802.3af, IEEE802.3at
Ports 1000base-T
Power consumption 5 W
Power over Ethernet IEEE 802.3af, IEEE 802.3at
Power supply 44-57VDC
Remark No power supply included. A suitable,optionally available power supply must be used to achieve the full specified PoE budget value.
Scope of delivery manual,1x DIN Rail
Temperature Range (Operating) -40°C ~ +75°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
Type Unmanaged
Weight 0.9 kg

Additional Productinformation

Application: The industrial PoE switch is ideal for small to mid-sized video surveillance setups in demanding environments. Its fanless design, wide temperature range (-40–75 °C), and redundant DC input make it suitable for industrial sites, outdoor use, and transportation systems. The plug-and-play setup enables quick and simple deployment.

External Power Supply: The recommended standard power depends on the performance of the external power supply unit in industrial quality. This product has 4 PoE ports. In terms of compatibility with a 60W power supply, the PoE power is approximately 55W. If 4 ports are set up with a 120W industrial power supply, a power output of up to 115W can be provided.

Main Features

  • 5 RJ45 ports with 10/100/1000 Mbps
  • 1 Gigabit SFP port for fiber optic uplink
  • 4 PoE+ ports, each with up to 30W power
  • Total PoE power: up to 115 watts,
  • depending on the connection
  • Supports IEEE 802.3af/at standards
  • High EMC protection level
  • Plug-and-play, no configuration, easy to use
  • Redundant power supply 44-57VDC
  • Robust IP30 housing, DIN-RAIL or wall mounting
  • Operating temperature range: -40-75°C
  • Power supply not included
