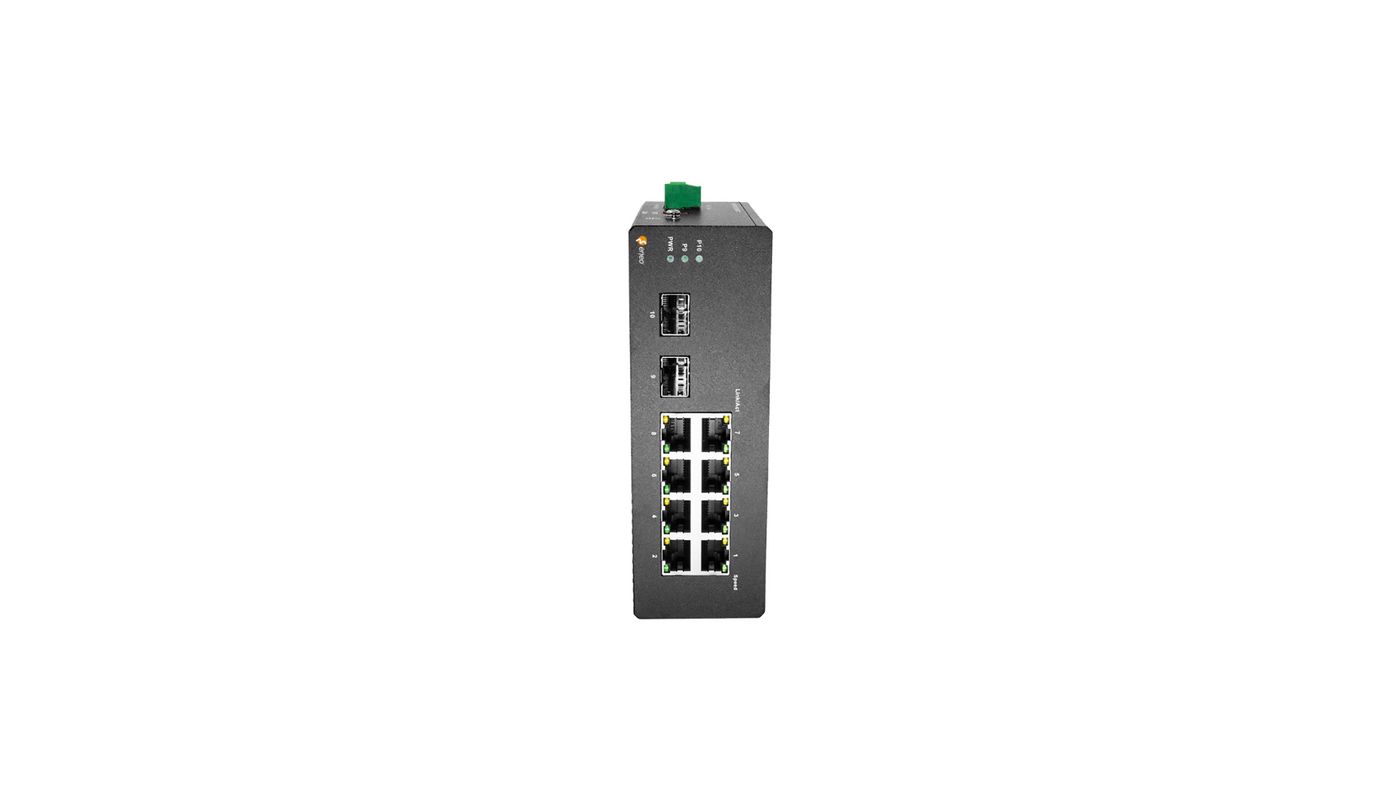

NSUI-3008M0A

SKU 242370
Gigabit Switch Industrial, Unmanaged, 8x PoE, 2xSFP, 30W each Port, -40°C~75°C, 44~57 VDC, w/o power supply
Data sheet

Specifications

Manufacturer order number
242370
Brand
eneo
Series
eneo Switch

Network

Eneo _netzwerkstandards
IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
Internal Switching Capacity (MP per second)
14.88 Mpps
Internal Switching Capacity (Gbit)
20 Gbps

Interfaces / Inputs/ Outputs

Ethernet interface
1000Base-T, 100Base-TX, 10Base-T

General

Design
DIN Rail Module

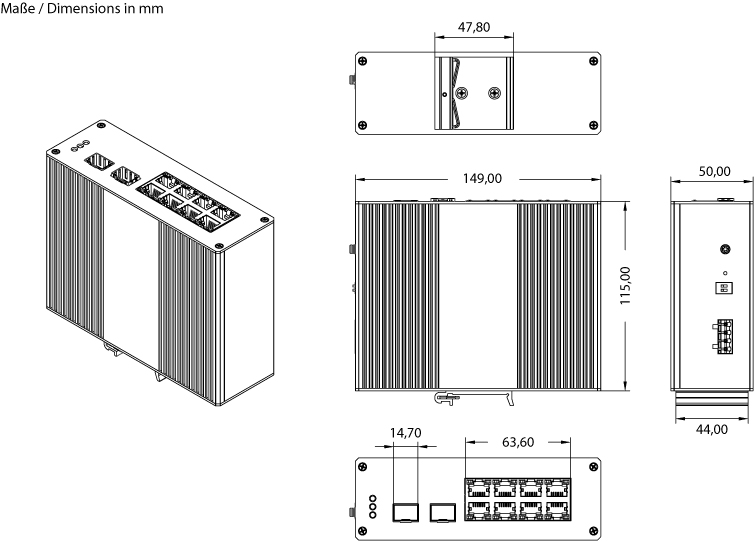

Dimensions (WxHxD) (extended)
50x149,2x122mm
Weight
1.168 kg
Number of PoE ports
8
Type
Unmanaged
Power consumption
18 W
Fan
No
Mounting type
DIN Rail, Wall
PoE Budget (Total)
222 W
Power over Ethernet
IEEE 802.3af, IEEE 802.3at
Power supply
44-57VDC
Temperature Range (Operating)
-40°C ~ +75°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
ESD protection
IEC61000-4-2, IEC61000-4-5

Parts supplied

Scope of delivery
manual,1x DIN Rail

Notes

Remark
No power supply included. A suitable,optionally available power supply must be used to achieve the full specified PoE budget value.

Additional Productinformation

Application: The industrial PoE switch is ideal for small to mid-sized video surveillance setups in demanding environments. Its fanless design, wide temperature range (-40–75 °C), and redundant DC input make it suitable for industrial sites, outdoor use, and transportation systems. The plug-and-play setup enables quick and simple deployment.

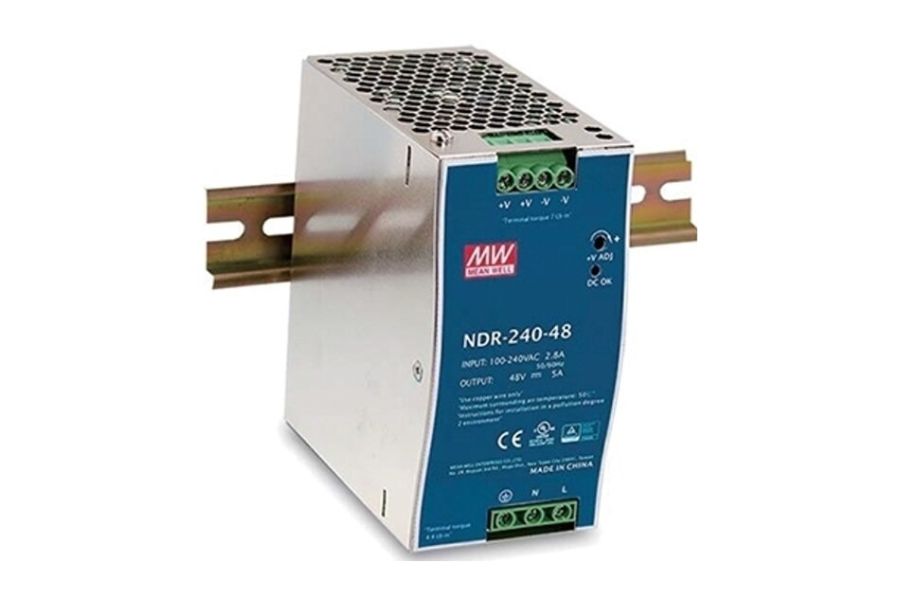

External Power Supply: The recommended standard power depends on the performance of the external power supply unit in industrial quality. This product has 8 PoE ports. In terms of compatibility with a 60W power supply, the PoE power is approximately 42W. If 8 ports are set up with a 240W industrial power supply, a power output of up to 222W can be provided.

Main Features

  • 8 RJ45 ports with 10/100/1000 Mbps
  • 2 Gigabit SFP port for fiber optic uplink
  • 8 PoE+ ports, each with up to 30W power
  • Total PoE power: up to 222 watts,
  • depending on the connection
  • Supports IEEE 802.3af/at standards
  • High EMC protection level
  • Plug-and-play, no configuration, easy to use.
  • Redundant power supply 44-57VDC
  • Robust IP30 housing, DIN-RAIL or wall mounting
  • Operating temperature range: -40-75°C
  • Power supply not included
