eneo NSUR-1016M0A

SKU 242364
Gigabit Switch Rack, Unmanaged, 16x PoE, 2xSFP, max. 30W each Port, integrated Power Supply max. 250W
Data sheet

Specifications

Manufacturer order number
242364
Brand
eneo
EAN/GTIN
4260229841563
Series
eneo Switch

Network

Eneo _netzwerkstandards
IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
Internal Switching Capacity (Gbit)
36 Gbps

Interfaces / Inputs/ Outputs

Ethernet interface
1000Base-T, 100Base-TX, 10Base-T

General

Design
Desktop

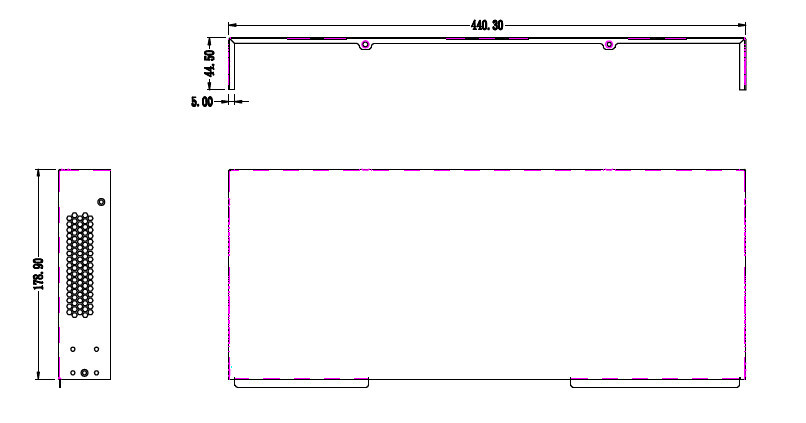

Dimensions (WxHxD) (extended)
44,5x440x190mm
Weight
1.55 kg
Number of PoE ports
16
Type
Unmanaged
Fan
Yes
Mounting type
19" Rack Installation, Desktop
PoE Budget (Total)
225 W
Power over Ethernet
IEEE 802.3af, IEEE 802.3at
Temperature Range (Operating)
0°C ~ +45°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
ESD protection
IEC61000-4-2, IEC61000-4-5

Parts supplied

Scope of delivery
manual,power cord,19\" rack mount angle

Main Features

  • 16 RJ45 ports with 10/100/1000 Mbps
  • 2 Gigabit SFP ports for fiber uplink
  • 16 PoE+ ports, up to 30W per port
  • Total PoE budget: up to 225 Watts
  • Supports IEEE 802.3af/at/az standards
  • Non-blocking wire-speed on all ports
  • 8K MAC address table supported
  • Forwarding rate: up to 26.784 Mpps
  • Switching capacity: 36 Gbps backplane
  • Supports Energy Efficient Ethernet (802.3az)
  • Rugged 19" metal case, 440×190×44 mm
  • Operating temperature: 0–45°C
