eneo NSUR-1024M0A

SKU 242365
Gigabit Switch Rack, Unmanaged, 24x PoE, 2xSFP, max. 30W each Port, integrated Power Supply max. 400W
Data sheet

Specifications

Manufacturer order number
242365
Brand
eneo
EAN/GTIN
4260229841570
Series
eneo Switch

Network

Eneo _netzwerkstandards
IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
Internal Switching Capacity (MP per second)
38,688 Mpps
Internal Switching Capacity (Gbit)
52 Gbps

Interfaces / Inputs/ Outputs

Ethernet interface
1000Base-T, 100Base-TX, 10Base-T
Ports
24x 10/100/1000Base-TX

General

Design
Desktop

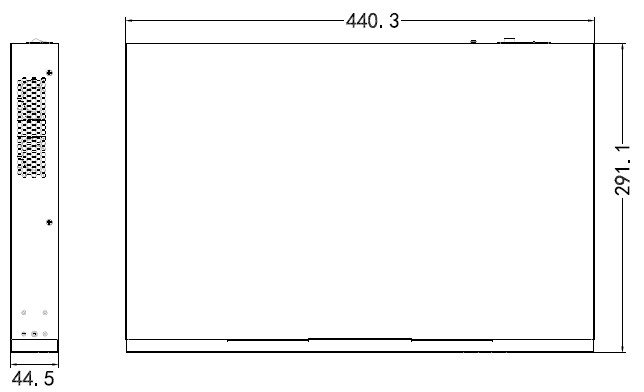

Dimensions (WxHxD) (extended)
44,5x440x290mm
Weight
3.5 kg
Number of PoE ports
24
Type
Unmanaged
Fan
Yes
Mounting type
19" Rack Installation, Desktop
PoE Budget (Total)
380 W
Power over Ethernet
IEEE 802.3af, IEEE 802.3at
Temperature Range (Operating)
0°C ~ +45°C,@ Luftfeuchtigkeit 10%-90% (nicht kondensierend)
ESD protection
IEC61000-4-2, IEC61000-4-5

Parts supplied

Scope of delivery
manual,power cord,19\" rack mount angle

Main Features

  • 24 RJ45 ports with 10/100/1000 Mbps
  • 2 Gigabit SFP ports for fiber uplink
  • 24 PoE+ ports, up to 30W per port
  • Total PoE power budget: 380 Watts
  • Supports IEEE 802.3af/at/az standards
  • Non-blocking wire-speed on all ports
  • 8K MAC address table supported
  • Forwarding rate: up to 38.688 Mpps
  • Switching capacity: 52 Gbps backplane
  • Supports Energy Efficient Ethernet (802.3az)
  • Rugged 19" metal case, 440×290×44 mm
  • Operating temperature: 0–45°C
