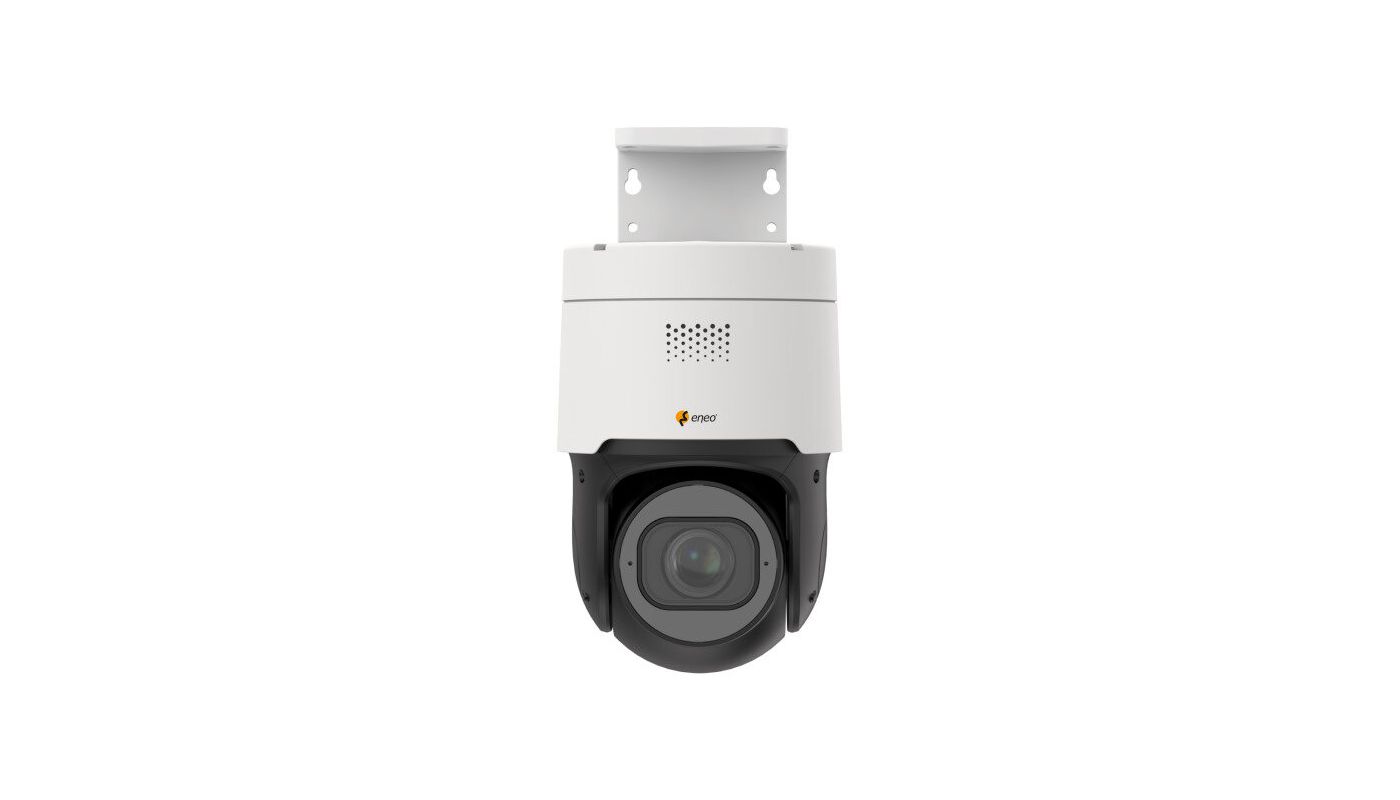

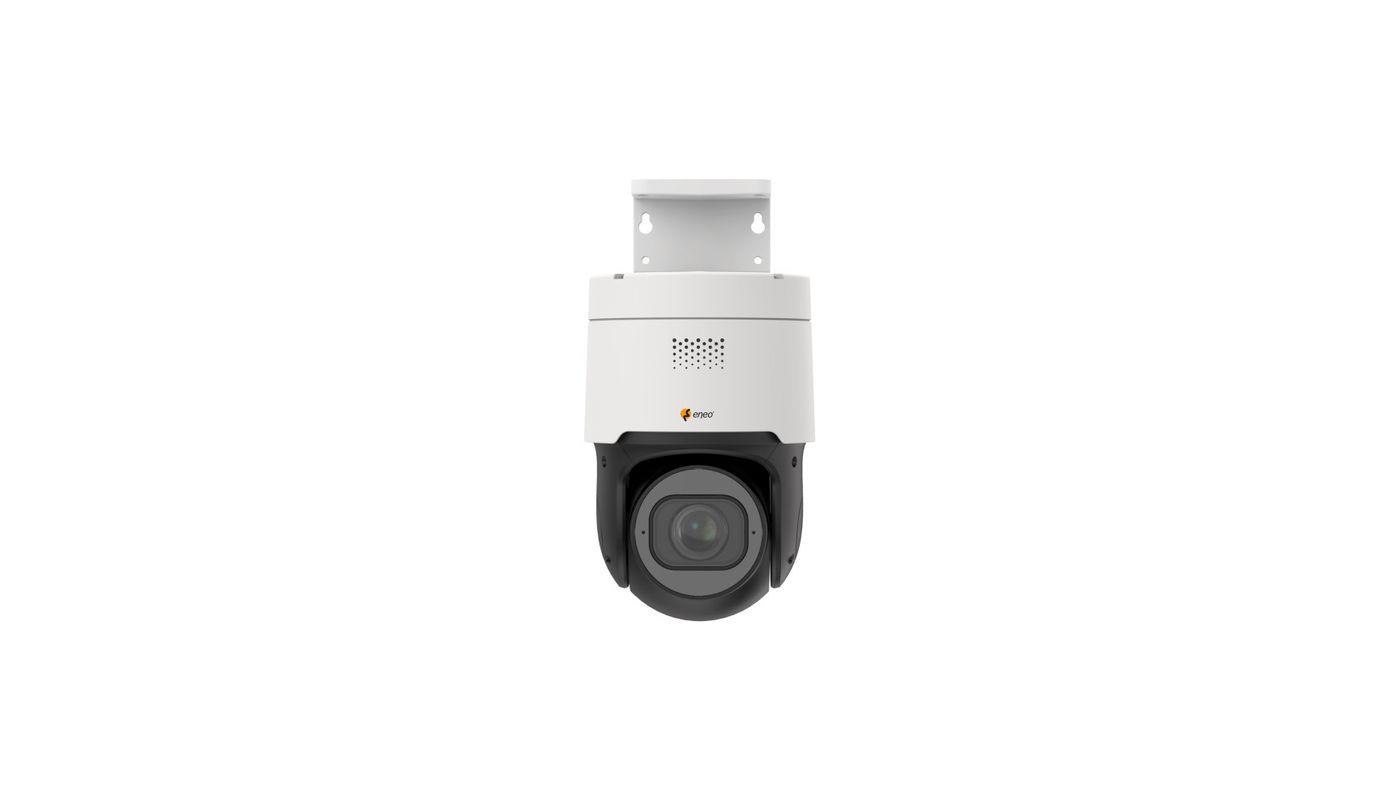

Network Dome, PTZ, 4x MVF, 3840x2160, Day/Night, WDR, AI, Alarm, Audio, 12V, PoE, IP66
SKU
234752
Main Features
- 1/2.7" CMOS sensor, maximum resolution 8 MP/30fps
- AI analysis functions including object classification
- D-WDR, 3D-DNR noise reduction
- Motorized varifocal lens 2.8-12mm
- Smart Codec H.265/H.264, multi-streaming
- Browser independent (IE, Edge, Safari, Firefox, Chrome)
- Supports ONVIF Profile S and Profile T
- Local storage via Micro SD card
- Supports audio and external alarm input and output
- Power supply 12VDC or PoE IEEE 802.3af
- IR LED lighting, IP66, deterrent (light & siren)
- Wall and ceiling mounting included
For Prices and Availability please login.
Brand | eneo |
---|---|
Camera type | PTZ |
Sensor size | 1/2.7" |
Resolution Standard | 8 Megapixel |
Sensitivity | 0,009 Lux at F1,6 |
System | True Day&Night |
Imager | CMOS |
Day&Night switch | ICR |
Low Speed Shutter | yes |
Digital Noise Reduction | yes |
Backlight Compensation | BLC, HLC |
Image resolution max. | 3840x2160 |
Wide Dynamic Range (WDR) | D-WDR |
Motion Detector | yes |
Lens Type | Varifocal (motorized) |
Image Transmission Rate | 25 fps |
Iris Control | DC |
Video compression | H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG |
Lens Type | Varifocal (motorized) |
llumination | Infrared |
Focal Length | 2,8 - 12 mm |
Digital Zoom | yes |
MOD (Mininum Object Distance) | 0,8 m |
Vertical Angle of View | 58,4 - 17,6° |
Horizontal Angle of View | 113 - 31,4° |
Detect (25px/m) | 90 - 346,2 m |
Observe (62 px/m) | 35,6 - 139,4 m |
Recognize (125 px/m) | 17 - 68,6 m |
Identify (250 px/m) | 8,2 - 35,2 m |
Analysis functions | Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD) |
Rotation range | 355° |
Speed (manual) | 45°/Sek. |
Speed (preset) | 45°/Sek. |
Audio support | yes |
Audio | 103±3dB max., 2 Way Audio, built-in loudspeaker, built-in microphone |
Internal storage | 256GB, microSDHC card, microSDXC card |
Remote configuration | Browser |
Ethernet interface | 100Base-TX, 10Base-T |
Supply voltage | 12VDC, PoE |
Alarm inputs | no |
Alarm outputs | no |
Serial interfaces | Ethernet |
Series | eneo IN-Series |

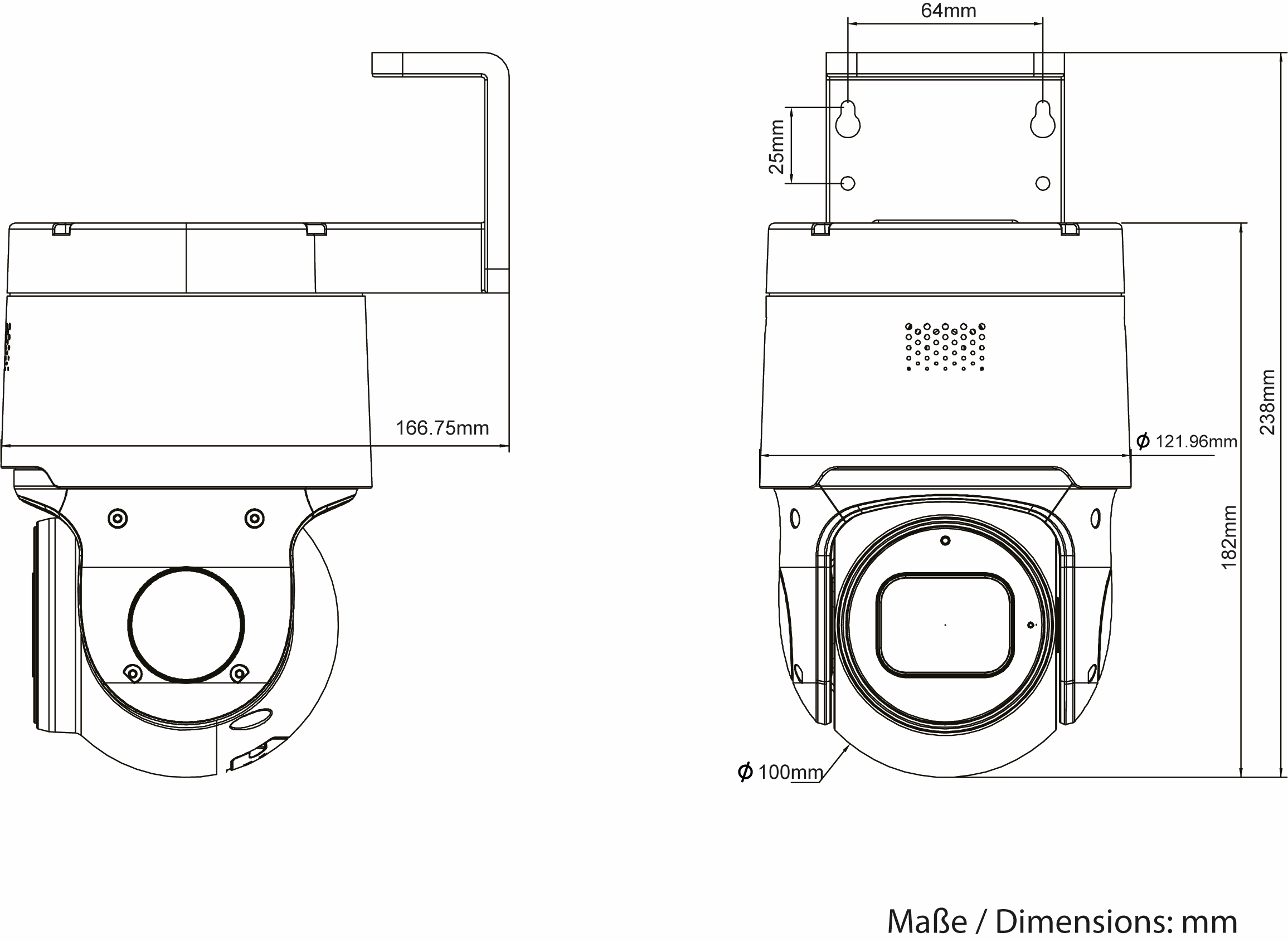

Dimensions (HxWxD) | 166,75x238mm |
Weight | 920g |
Illumination range | approx. 30m |
Color (housing) | black, Pantone P 179-1, RAL9003 |
Housing | Outdoor |
Hosuing material | Plastic |
Heater | no |
Camera Type | Face recognition, License plate recognition, People Count, Retail Intelligence |
Power consumption | 13W |
Blower | no |
Mounting | Ceiling mount, Wall mount |
ONVIF | ONVIF Profile G, ONVIF Profile S, ONVIF Profile T |
Protection rating | IP66 |
Operating temperature | -30°C ~ +60°C, @ Humidity 90% or less (non-condensing) |
Vandal proof | no |
EAN/GTIN | 4260229840115 |
Manufacturer order number | 234752 |
