IND-32F0016P0A

SKU 236318

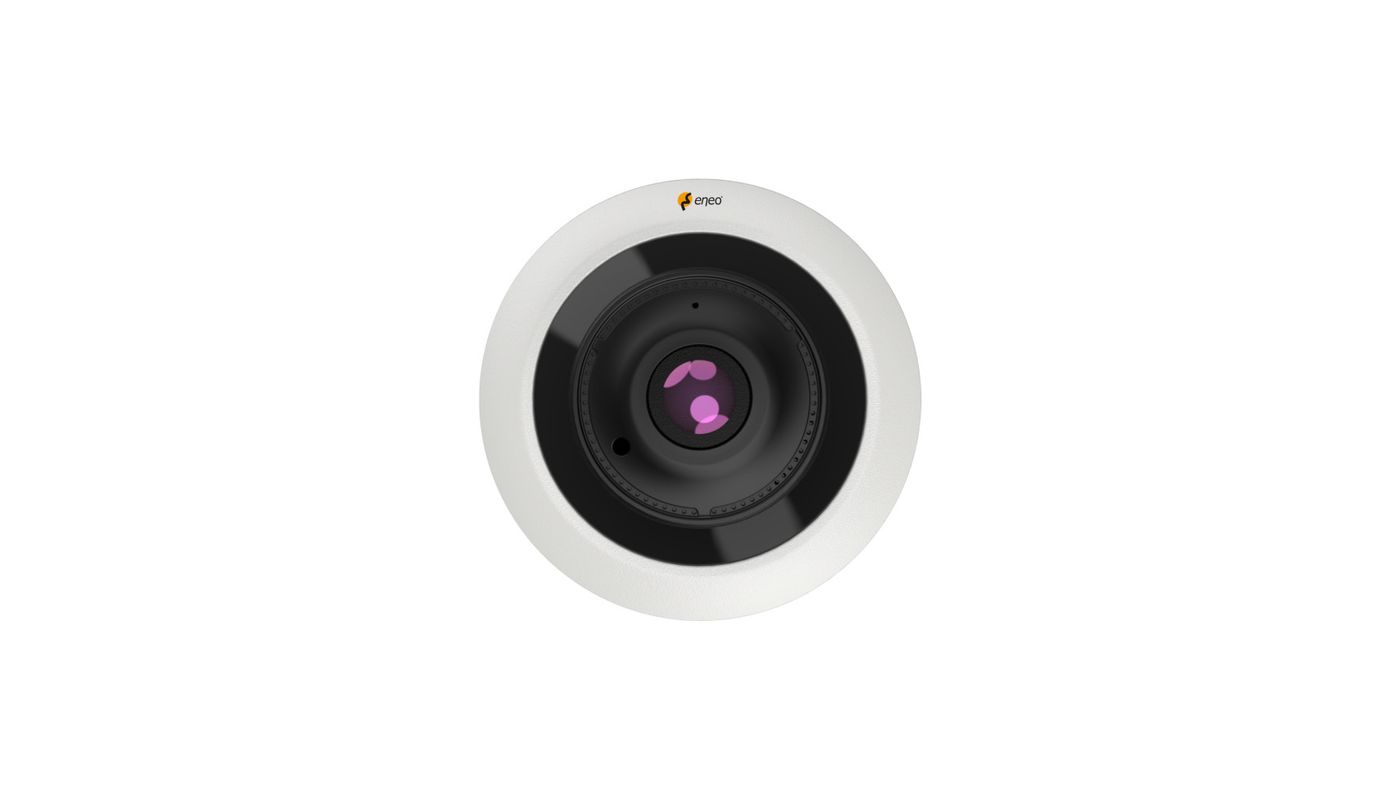

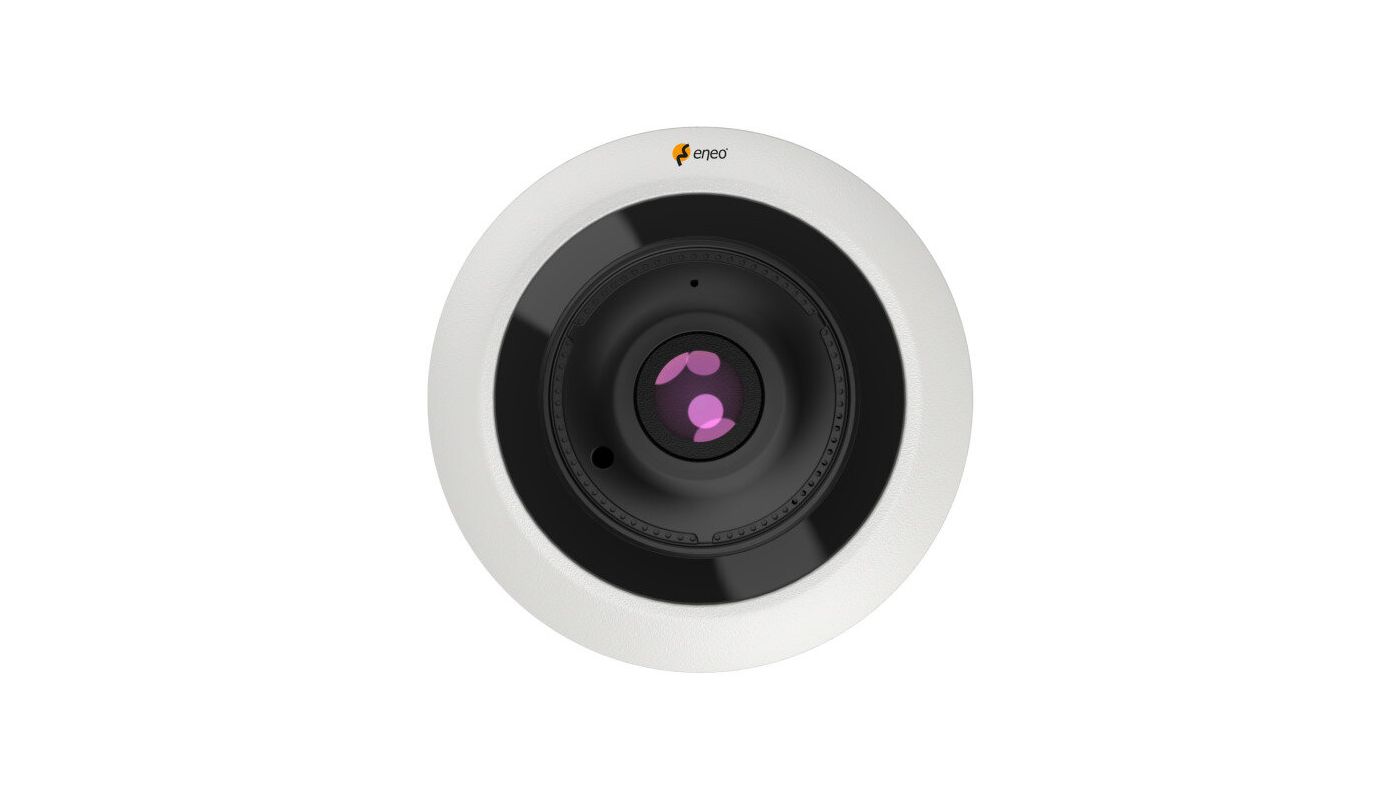

Network Dome Fix, 360° 4000x3000, Day/Night, DWDR, 1,6mm, IR, 12VDC, PoE, IP66
Data sheet

Specifications

Manufacturer order number
236318
Brand
eneo
EAN/GTIN
4260229840573
Series
eneo IN-Serie

Camera

Camera shape
Minsters
Chip size
1/2,3"
Resolution standard
12 MP
Recording sensor
CMOS, OmmiVision OV12895-J94A
Photosensitivity
0,01 Lux bei F1,6
System
True Day&Night
Manual Electric Shutter (MES)
1-5~1-20,000sec.
Flickerless function
Yes
Day/night switching
Switchable IR Filter (ICR)
Day/night mode
Automatic,Day,Night,Image,Time
White balance
Automatic,Manual
Signal-to-noise ratio
39 dB

Video

Resolution (extended)
4000x3000,3000x3000,2560x2560,2160x2160,1520x1520,1280x960,1080x1080,720x720,640x480
Picture size
360° panorama
Video Compression
H.264, H.264+, H.265, H.265+, M-JPEG
Data stream types
Triple-Stream(Main/Sub/Mobile)
Image transfer rate max.
15 fps

Lens

Lens Type
Prime lens
Focal length
1,6 mm
MOD (Minimum Object Distance)
0.3 m
Horizontal angle of view
360°

Display

Image resolution max.
4000x3000

DORI

Perceiving (25px/m)
38 m
Watch (62px/m)
14.9 m
Detect (125px/m)
6.5 m
Identify (250px/m)
3.8 m

Functions

Multicast
Yes
Alarm processing
recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,alarm out,Siren,Cloud Upload
Audio support
Yes
Audio
93±3dB max., Built-in microphone, Built-in speaker
Password
Administrator and User
Internal memory
microSD card slot
Menu languages
English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
Browser
Edge, Firefox, Google Chrome, Safari
Digital Noise Reduction (DNR)
Yes
Privacy Zone
Areas-ON/OFF switchable

Network

Network Protocols
DDNS, DHCP, DNA, FTP, HTTP, HTTPS, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP

Interfaces / Inputs/ Outputs

External connections
RJ-45,Alarm in/outputs,12VDC input (DC plug),micro SD card slot 256 GB
Alarm inputs
1
Control Interfaces
Ethernet

General

Wide Dynamic Range (WDR)
D-WDR
Lighting
Infrared

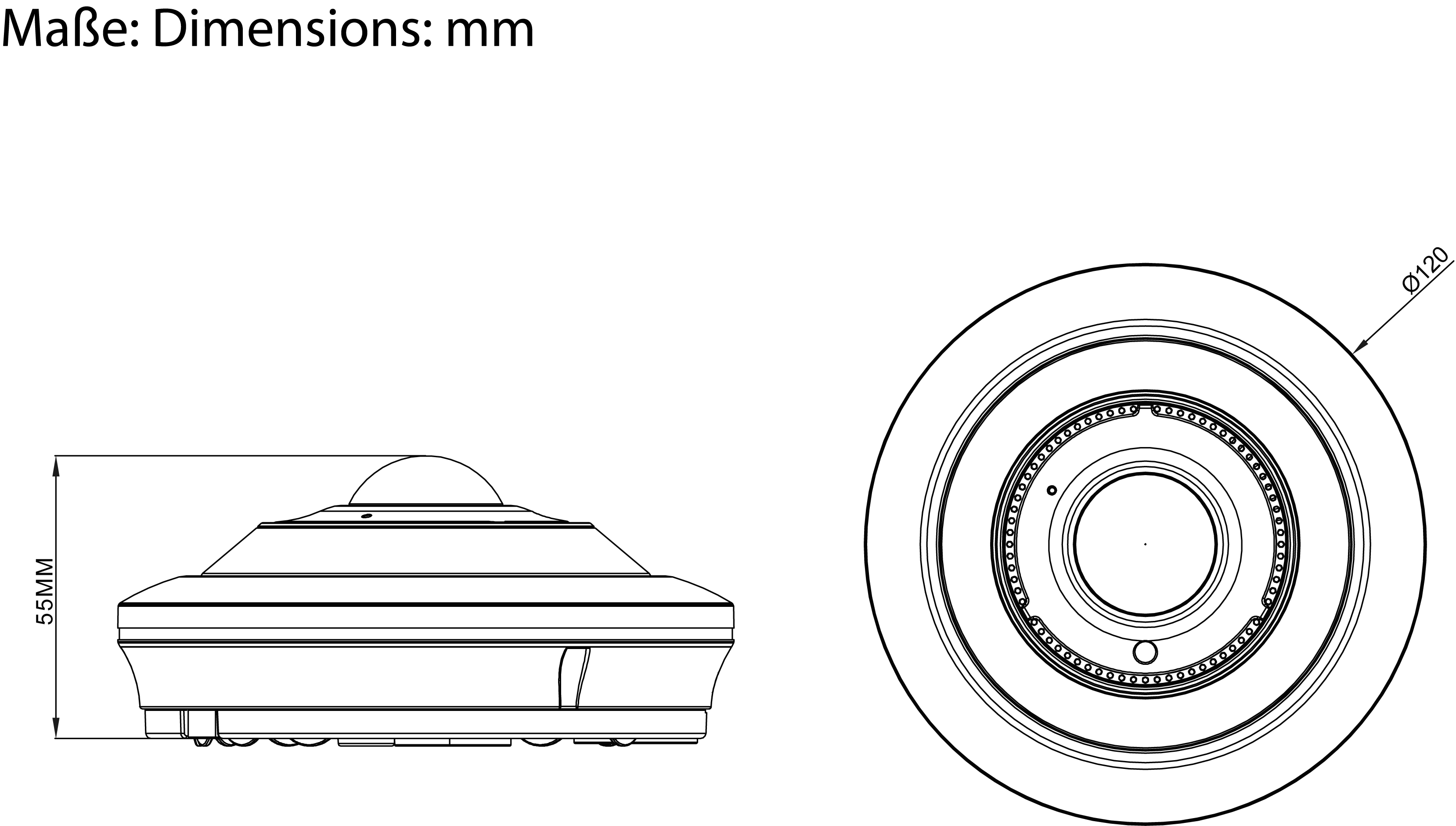

Dimensions (WxHxD) (extended)
120x55mm
Illumination range
Approx. 10m
Color (Housing)
RAL9003,Pantone P 179-1
Housing type
Outside
Housing material
Metal, Plastic
Camera Type
Fisheye Camera
Mounting type
Ceiling, Wall
ONVIF
ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
ESC
1/5 ~ 1/20.000sec.
Protection
IP66
SDK
upon request
Power supply
12VDC, Poe
Temperature Range (Operating)
-35°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
Text overlay
Switchable on/off

Parts supplied

Scope of delivery
manual,bag of screws

Notes

Remark
From firmware version 8.2.4.1,the analysis function Object Classification Human / Vehicle (PD&VD) is available

Additional Productinformation

The face detection and license plate recognition functions are only available with an inserted SD card or in conjunction with a recorder from the eneo IN series. To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number 229235 at VIDEOR).

Main Features

  • 1/2.3" Omnivision CMOS sensor
  • 1.6mm fixed focal length FishEye lens
  • 360° panoramic, quad, panomorphic view,ceiling, wall
  • Integration with eneo INsight software & App
  • Day/night function, 3D-DNR, slow speed shutter
  • Resolution max. 4000x3000@15fps
  • Smart Codec H.265/H.264, Multi-Streaming
  • Triple stream (main, sub, mobile)
  • Browser independent (Edge, Safari, Firefox, Chrome)
  • IR-LED illumination, microphone and loudspeaker integrated
  • NDAA compliance
  • For indoor and outdoor use, IP66
