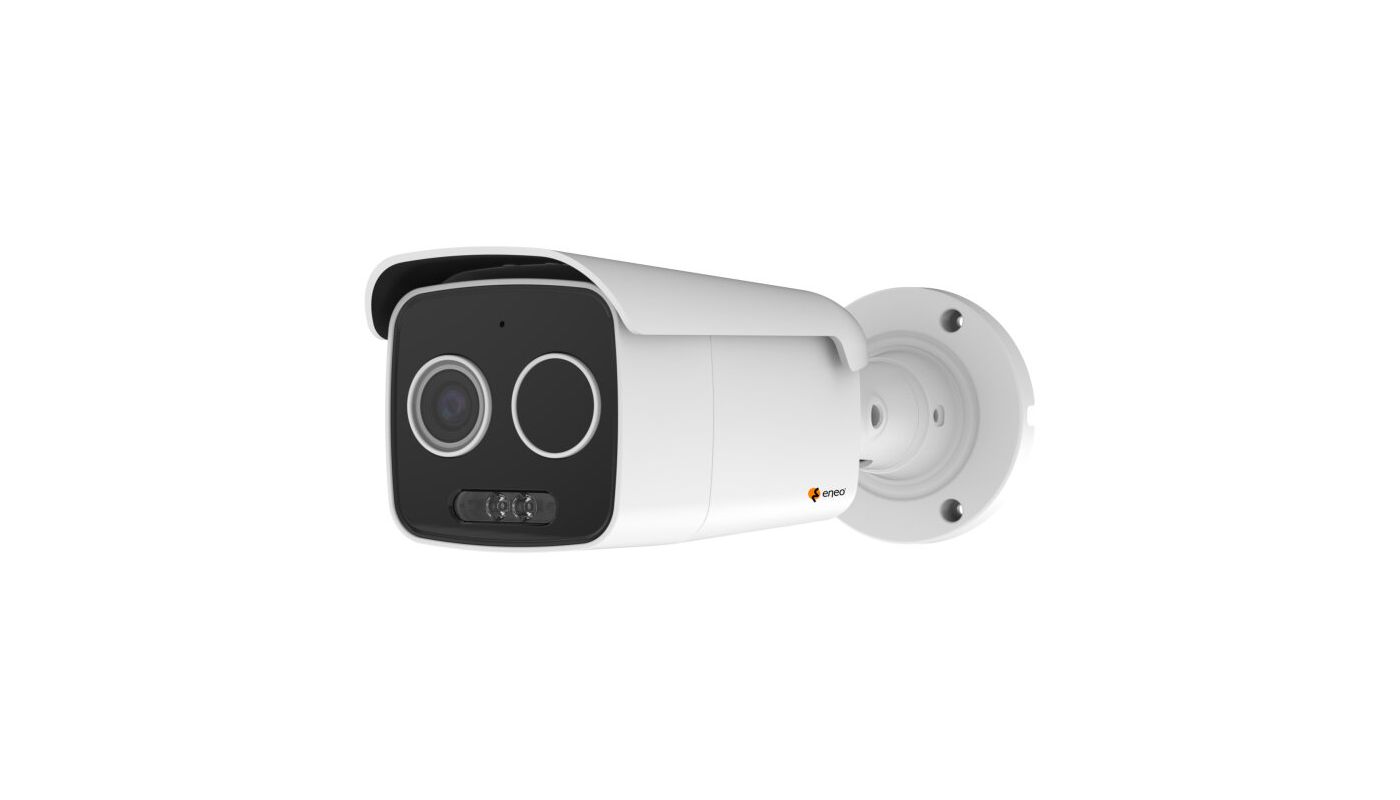

eneo INT-8SF0003M0A
SKU 236317
Specifications
- Brand
- eneo
- EAN/GTIN
- 4260229840603
- Manufacturer order number
- 236317
- Series
- eneo IN-Serie
Camera
- Backlight compensation
- Yes
- Flickerless function
- Yes
- Low Speed Shutter
- Yes
- Manual Electric Shutter (MES)
- 1-25~1-25,000Sec
- Photosensitivity
- 0,003 Lux @ F1,6 AGC on
- Recording sensor
- CMOS
- Signal-to-noise ratio
- 39 dB
- System
- Thermal image, True Day&Night
DORI
- Detect (125px/m)
- 14 m
- Identify (250px/m)
- 7 m
- Perceiving (25px/m)
- 68,5 m
- Watch (63px/m)
- 27,3 m
Thermal
- IFOV (Instantaneous Field of View)
- 3.7 mrad
- Image transfer rate max. (Thermal)
- 25 fps
- Recording sensor (Thermal)
- Vanadium Oxide Uncooled Focal Plane Arrays
- Response Waveband
- 8 -14 µm
- Temperature Measurement
- -20 °C - + 150 °C
- Thermal sensitivity (NETD)
- 40 mK
DRI
- Detect Human (D)
- 148 m
- Detect Vehicle (D)
- 421 m
- Identify Human (I)
- 21 m
- Identify Vehicle (I)
- 53 m
- Recognize Human (R)
- 36 m
- Recognize Vehicle (R)
- 90 m
Lens
- Focal length
- 3,6 mm
- Focal length (Thermal)
- 3,2 mm
- Horizontal angle of view
- 81°
- Horizontal angle of view (Thermal)
- 56°
- Lens Type
- Prime lens
- Lens Type (Thermal)
- Prime lens
- Minimum focus distance (Thermal)
- 0.3 m
- Vertical angle of view
- 57°
- Vertical angle of view (Thermal)
- 42°
- Zoomfactor (Thermal)
- 99
Video
- Data stream types
- Triple-Stream(Main/Sub/Mobile)
- Image transfer rate max.
- 25 fps
- Picture size
- 16:9
- Video Compression
- H.264, H.265, M-JPEG
Display
- Image resolution max.
- 2592x1944
Functions
- Alarm processing
- SD recording,relay output,smart capture,FTP upload,email linkage,audio alarm,Red & Blue flashing light
- Analysis
- Abandoned and Removed Objects (SOD), Attendance (FA), Crowds (CD), Enter Region, Face Capture (FD), Face Recognition (FR), Fire alarm, Heat Map (HM), Intrusion, Leave Region, Line crossing (LCD), Object Classification Human / Vehicle (PD&VD), Passage count (CC), Queues (QD), Rare Sounds (RSD), Temperature Exception Alarm
- Audio support
- Yes
- Browser
- Edge, Firefox, Google Chrome, MS Internet Explorer 10/11, Safari
- Detection range (m)
- 44 m
- Digital Noise Reduction (DNR)
- Yes
- Eneo Privacy
- Areas-ON/OFF switchable
- Internal memory
- microSD card slot
- Menu languages
- English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
- Motion detector
- Yes
- Password
- Administrator and User
Network
- Network Protocols
- DDNS, DHCP, DNA, FTP, HTTP, HTTPS, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP
- Security
- Complicated password, HTTPS encryption, IP address filtering
Interfaces / Inputs/ Outputs
- Alarm inputs
- 1
- Control Interfaces
- Ethernet
- Ethernet interface
- 100Base-TX, 10Base-T
General
- Audio compression
- G.711a, G.711u
- Camera Type
- Thermal Hybrid Bullet
- Color (Housing)
- RAL9003,Other colors available upon request
- ESC
- 1/25 ~ 1/25.000Sek.
- Heating
- No
- Housing material
- Aluminium
- Housing type
- Outside
- Integrated wall mount
- Yes
- Lighting
- Infrared, Warm Light
- Mounting type
- Ceiling, Wall
- ONVIF
- ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
- Pixel Edge Length
- 12 µm
- Power consumption
- 18.2 W
- Power over Ethernet
- IEEE 802.3af
- Power supply
- 12VDC, Poe
- Protection
- IP67, NEMA 4X
- Sunshade canopy
- Yes
- Temperature Range (Operating)
- -30°C ~ +60°C
- Text overlay
- Switchable on/off
- Thermal resolution
- 256x192
- Vandalism-resistant
- No
- Weight
- 1.25 kg
- Wide Dynamic Range (WDR)
- WDR 120dB
Parts supplied
- Scope of delivery
- Quick installation guide,drilling template,3x wall plugs with screws,1x Allen wrench,waterproof cover for RJ45 connector
Notes
- Remark
- The viewing angles of the camera modules vary. We recommend only using components from the same brand together. You can find more information about our paid compatibility check with other brands at VIDEOR #229235.
Additional Productinformation
Early fire detection can be used in a variety of areas to respond to fire threats early, minimizing property damage, personal injury, and business interruption.
Here are some possible areas of application:
Residential buildings: To protect residents and property from fires that could be caused by household appliances, candles, smoking, or electrical problems.
Office buildings: To ensure employee safety and prevent data loss and property damage from fire.
Industrial facilities: Particularly important in manufacturing facilities, warehouses, and factories where flammable materials and machinery pose a higher fire risk.
Critical infrastructure: Hospitals, schools, airports, train stations, and other important facilities where a fire could have catastrophic consequences.
Agricultural operations: To protect crops, livestock, and farm buildings from fire.
Server rooms and data centres: To ensure the protection of sensitive data and expensive hardware that could be destroyed by fire.
Vehicles and ships: In transportation such as buses, trains, airplanes, and ships to ensure the safety of passengers and cargo.
Historic buildings and museums: To protect priceless cultural assets and historical artifacts from fire.
Large events and public places: To protect crowds at concerts, sporting events and other public gatherings.
Forests and nature reserves: For early detection of forest fires to minimize environmental and property damage and prevent the spread of fires.
In addition, this camera supports various AI functions for the thermal and optical camera modules. Please refer to our AI Matrix in the download area for further details.
Main Features
- Dual network bullet camera
- Optical resolution 2592x1944 pixels
- Thermal resolution 256x192 pixels
- Fixed focal 3.6mm (optical) H:81°, V:57°
- Fixed focal 3.2mm (thermal) H:56°, V:42°
- AI analysis functions including object classification (optical)
- Temperature alarm measuring range -20°~ +150° (±8°)
- Supports audio and alarm inputs and outputs
- Local storage via micro SD card
- Supports ONVIF profiles S/T/G/M
- NDAA compliance
- Suitable for outdoor use IP66
