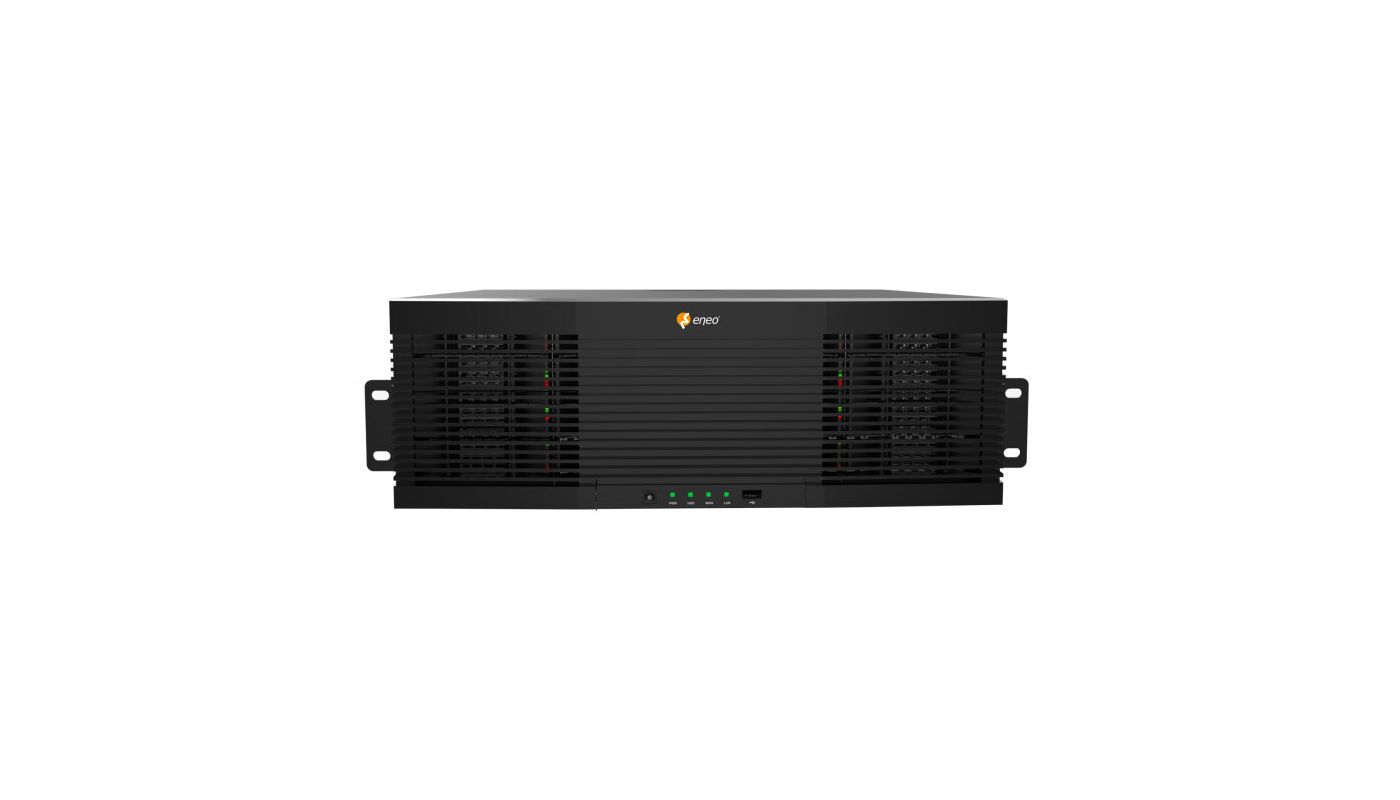

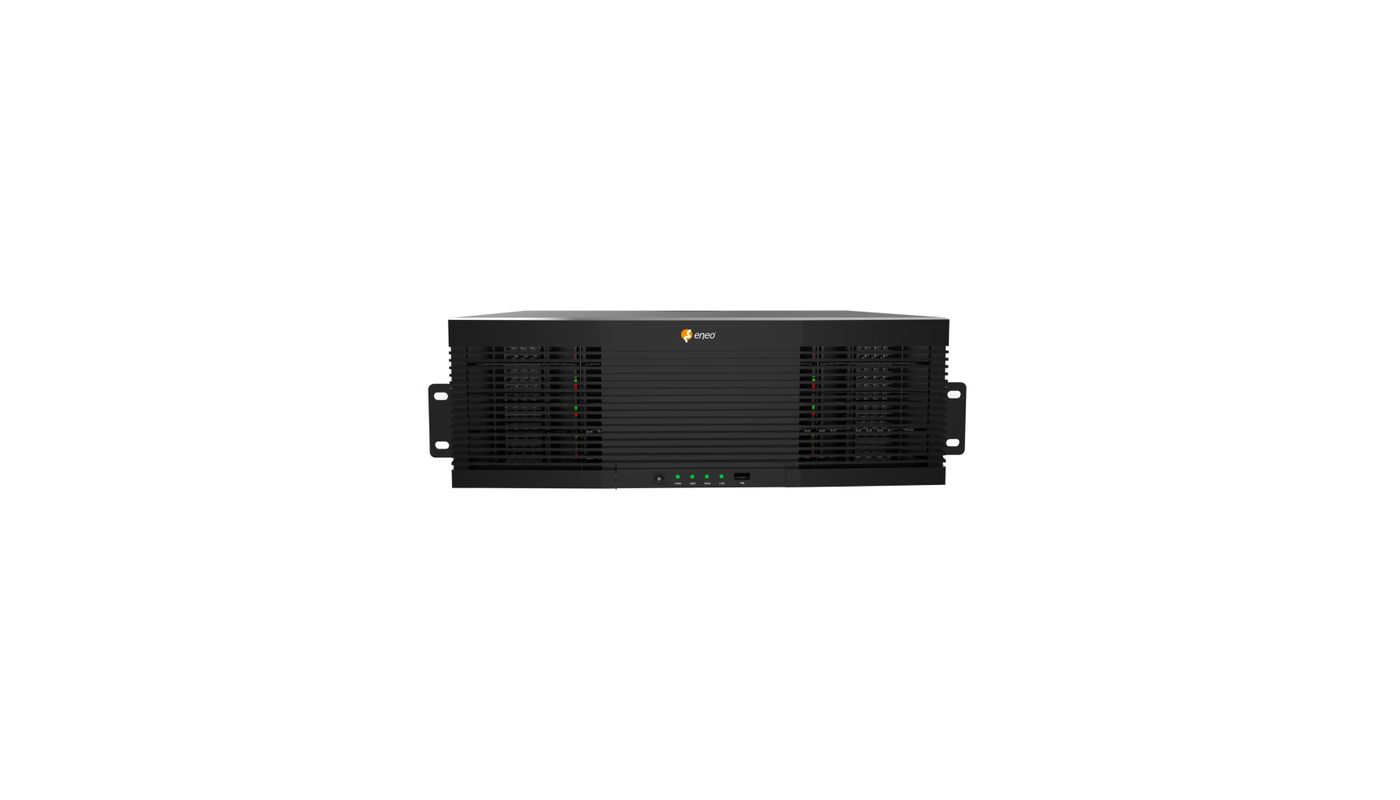

INR-58N640005A
Network Video Recorder 64x IP, RAID, 16xSATA, 4xHDMI, H.265, H.264, without HDD
SKU
238664
Main Features
- Maximum resolution 12MP (recording)
- Recording modes continuous, manual or AI-based
- Maximum data rate input 640Mbps, output 640Mbps
- Maximum 16 internal hard drives possible, hotswap capable
- RAID 0,1,5,6,10 support
- Supports 16 alarm inputs and 4 alarm outputs
- 4x HDMI output, 2x RJ45 network connection, 1xUSB connection
- 1 x audio input and output
- eSATA connection for external memory expansion
- Remote access via browser, eneo Insight or Insight mobile
- ONVIF Profile S support, NDAA compliance
- USB mouse and 19" mounting bracket included in the scope of delivery
For Prices and Availability please login.
| Brand | eneo |
|---|---|
| Compression | H.264, H.264+, H.265, H.265+ |
| Max. recording resolution | 4000x3000 |
| Analysis functions | Depending on connected IP camera |
| Audio support | yes |
| HDD hotswap | yes |
| Remote access | Android, iPhone, remote software, WEB Browser (Java) |
| Remote configuration | Remote software |
| Network | 2x 10/100/1000 Base-Tx, RJ45 |
| Network connection | 2 x 10/100/1000BASE-T |
| Data tranfer rate max. | 1280 Mbps |
| Data transfer rate incoming | 640 Mbps |
| IP channels | 64 |
| Channels total | 64 |
| Monitor Outputs | 4x HDMI |
| Spot monitor | no |
| USB ports | 1x USB 2.0, 2x USB 3.0 |
| Alarm inputs | 16 |
| Alarm output | 4 |
| Audio inputs | 1 |
| Audio output | 1 |
| Serial interfaces | RS-232, RS-485 |
| Operating system | Linux |
| Series | eneo IN-Series |
| Dimensions (HxWxD) | 1498x440x460mm |
| Weight | 9kg |
| 19" rack mount | yes |
| HDD slots | 16x SATA |
| Internal HDD capacity | 0 TB |
| Max. internal HDD capacity | 288 TB |
| Integrated writer | no |
| Power consumption | 8W, without HDD |
| Blower | yes |
| ONVIF | ONVIF Profile S, yes |
| RAID | + Hot Spare, RAID 0, RAID 1, RAID 10, RAID 5, RAID 6 |
| Supply voltage | 100-240VAC; ATX250W intern |
| Operating temperature | -10°C ~ +50°C, @ Humidity 90% or less (non-condensing) |
| Manufacturer order number | 238664 |
Further product information
Before installing the device in a 19" rack, please ensure that a shelf or suitable slide rails are installed in the cabinet. It is not possible to support the recorder using only the 19" mounting brackets supplied. These are only used to fix the position of the device.To ensure heat dissipation and proper functioning of the device, it is forbidden to stack the device or place other heavy objects on top of it.Use of the 4 HDMI outputs: 3x HDMI supported resolutions: 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 , 1920x1080 , 1600x1200，1920x1200, 3840x2160, 7680x4320; 1x HDMI supported resolutions: 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080; Note:If the output resolution of HDMI 1 is set to 8K, the maximum output resolution of HDMI 3 and 4 is limited to 1080P and HDMI 2 will be disabled.
