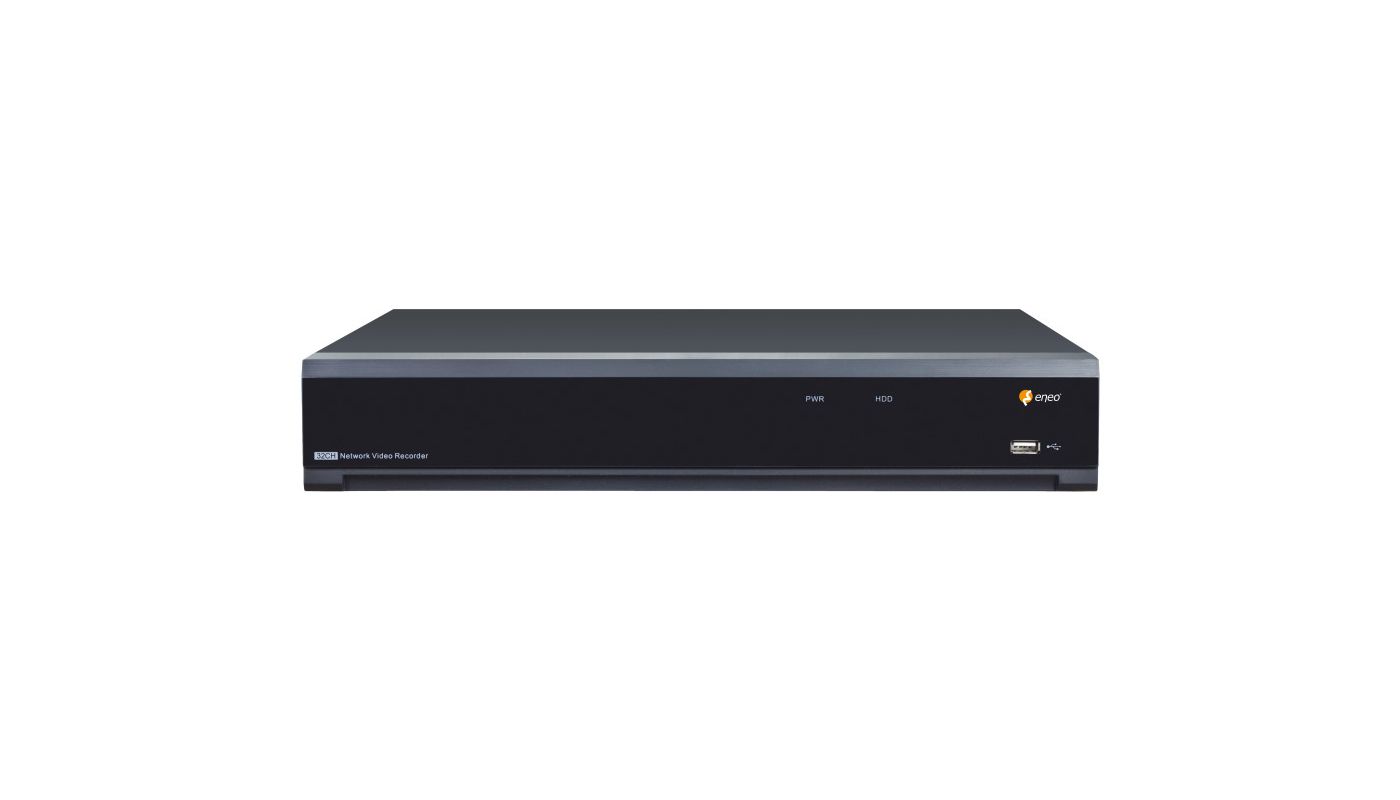

Network Video Recorder 32x IP total, 16x IP PoE, HDMI, 4xSATA, w/o HDD
SKU
234750
Main Features
- Maximum resolution 8MP (recording)
- Recording and research AI analysis functions
- Recording modes continuous, manual or AI-based
- Maximum data rate input 256Mbps, output 128Mbps
- Various options for alarm messages
- Maximum 4 internal hard disk possible
- Supports 16 x alarm inputs and 1 x alarm output
- 3 x USB inputs, 1 x RS-485, 1 x audio input and output
- eSATA port for external storage expansion
- NetDrive or cloud storage (Google Drive/Dropbox)
- Remote access via browser, eneo Insight or Insight mobile
- 32 IP channels, 16 x RJ45 PoE port (220 Watt PoE budget)
For Prices and Availability please login.
Brand | eneo |
---|---|
Compression | H.264, H.264+, H.265, H.265+ |
Playback | 16 channel split, 4 channel split, 8 channel split, full screen, sequence |
Max. recording resolution | 3840x2160 |
Alarm inputs | 16 |
Analysis functions | Depending on connected IP camera |
Audio support | yes |
HDD hotswap | no |
Remote access | Android, iPhone, remote software, WEB Browser (Java) |
Remote configuration | Remote software |
Network | 1x 10/100/1000 Base-T RJ45 |
Network connection | 1 x 10/100/1000BASE-T, 16x PoE RJ45 10/100 Base-T |
Data tranfer rate max. | 384 Mbps |
Data transfer rate incoming | 256 Mbps |
Data transfer rate outgoing | 128 Mbps |
IP channels | 32 |
Channels total | 32 |
Monitor Outputs | 1x HDMI (2MP), 1x HDMI (4K), VGA |
Spot monitor | no |
USB ports | 1x USB 3.0, 2x USB 2.0 |
Interfaces external storage | USB |
Alarm inputs | 16 |
Alarm output | 1 |
Audio inputs | 1 |
Audio output | 1 |
Serial interfaces | RS-485 |
Operating system | Linux |
Series | eneo IN-Series |
Dimensions (HxWxD) | 378x325,8x66mm |
Weight | 2.95kg |
19" rack mount | yes |
HDD slots | 4x SATA |
Internal HDD capacity | 0 TB |
Max. internal HDD capacity | 40 TB |
Integrated writer | no |
Power consumption | 12W, without HDD |
Blower | yes |
ONVIF | ONVIF Profile S, yes |
PoE budget | 220 W |
Power over Ethernet | IEEE 802.3af, IEEE 802.3at |
RAID | n/a |
Supply voltage | 230VAC |
Operating temperature | 0°C ~ +40°C |
EAN/GTIN | 4260229840016 |
Manufacturer order number | 234750 |
