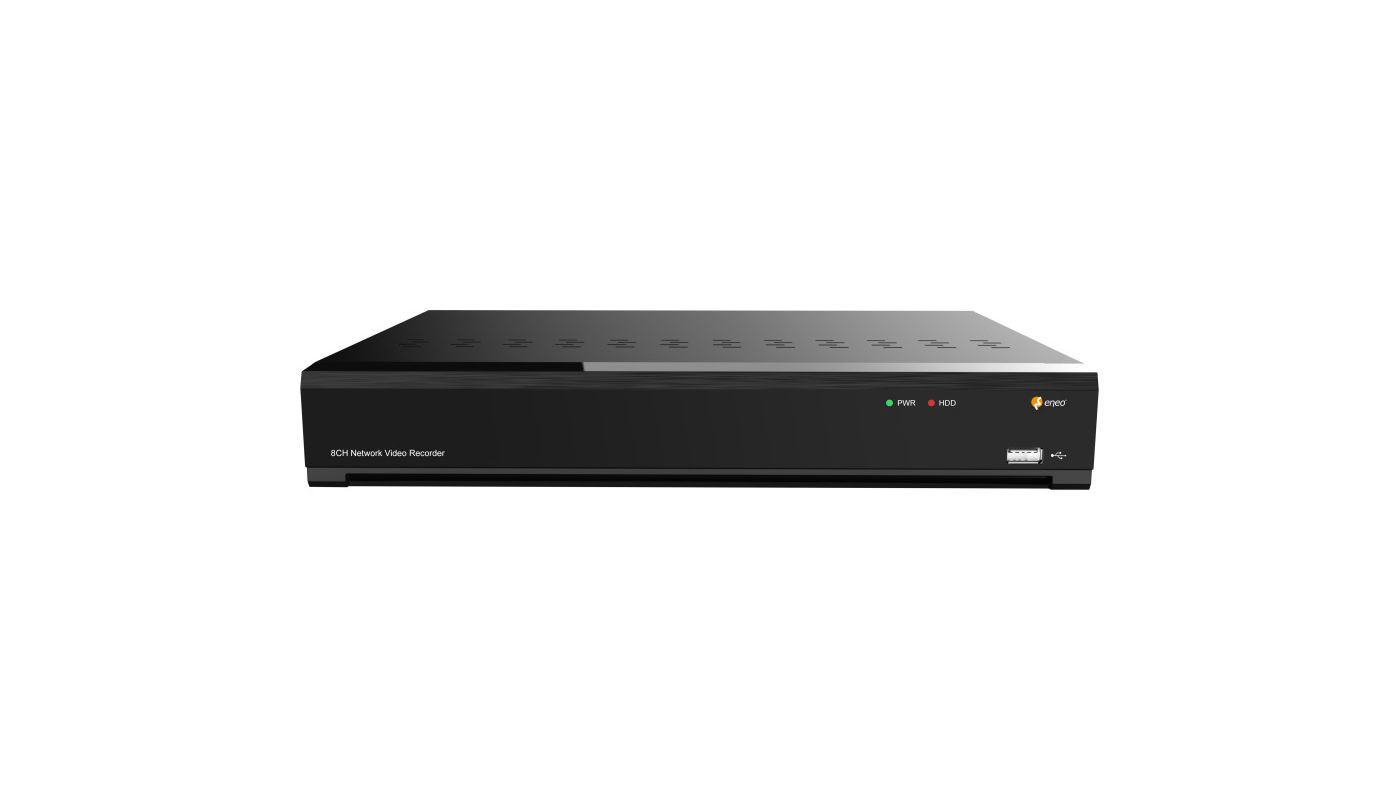

eneo INR-28N080005A

SKU 234749
Network Video Rekorder 8x IP PoE, H.265, HDMI, VGA 1xSATA, w/o HDD
Data sheet

Specifications

Brand
eneo
EAN/GTIN
4260229840085
Manufacturer order number
234749
Series
eneo IN-Serie

Video

Video Compression
H.264, H.264+, H.265, H.265+

Recording

Hard disk capacity max
10 TB
Resolution Recording (max)
3840x2160

Functions

Alarm response
Alarm Output, Buzzer, E-mail dispatch, FTP, Live Popup, PTZ Preset, Push (Mobile), Spot Popup
Alarm triggers
AI, Contact, Disk Error, Image loss, Movement
Analysis
Depending on connected IP camera
Audio support
Yes
HDD Hotswap
No
Menu languages
Arabic, Bulgarian, Danish, Dutch, English, Finnish, French, German, Greek, Hebrew, Hindi, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Spanish, Thai, Turkish
Password
Administrator and User
Remote Access
Android, Ios, Remote Software, WEB Browser (Java)
Search function
Event, Instant playback, Museum, Text, Thumbnail, VCA Search

Network

Data throughput (maximum)
128 Mbps
Data throughput (outbound)
128 Mbps
Network Protocols
DDNS, DHCP, DNA, FTP, HTTP, HTTPS, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP
Security
Brute-Force Defense, Complicated password, Digest-Authentication, Dual-user authentication (available from firmware version 8.2.4.1), HTTPS TLS 1.2/1.3, IEEE 802.1X-Authentication (available from firmware version 8.2.4.1), IP address filtering, Password, RTSP over HTTPS, Security Audit Log, SNMPv1.3, WSSE for ONVIF

Interfaces / Inputs/ Outputs

Alarm Input
Yes
Alarm output
Yes
Audio Inputs
1
Control Interfaces
RS-485
Ethernet interface
100Base-TX, 10Base-T
Memory interface (external)
USB
Number of IP Channels
8
Video Outputs
1x HDMI, VGA

General

Audio compression
G.711a, G.711u
Control software
eneo INsight
Dimensions (WxHxD) (extended)
300x53x227mm
External Eneo Operating Devices
Mouse
HDD Slots Number
1,bis zu 10 TB je slot (Enterprise-Class)
ONVIF
ONVIF Profile S
Power consumption
6 W
Power supply
48VDC
Temperature Range (Operating)
0°C ~ +40°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)

System requirements

Operating system
Linux

Parts supplied

Scope of delivery
PSU,Power cord,HDD assembly-kit,mouse,manual

Notes

Remark
IP cameras of the PXB,PXC,PXD and PTB series are not supported by this product. NDAA compliance under Section 889

Additional Productinformation

Note: For two freely definable channels, the alarm recording can be saved in the cloud. To guarantee you an optimum user experience, we recommend that you only use components of the same brand in a system. If several brands are used in combination, eneo cannot guarantee functionality. If combined use is necessary, we offer a compatibility check for a fee (for more information, see article number 229235 at VIDEOR).

Main Features

  • Maximum resolution 8MP (recording)
  • Recording and research AI analysis functions
  • Recording modes continuous, manual or AI-based
  • Maximum data rate input 128Mbps, output 128Mbps
  • Four-eyes principle for remote playback
  • 8 x RJ45 PoE port (59 Watt PoE budget total)
  • Maximum 1 internal hard disk possible
  • Supports 8 x alarm inputs and 1 x alarm output
  • 2 x USB inputs, 1 x RS-485, 1 x audio input and output
  • eSATA port for external storage expansion
  • NetDrive or cloud storage (Google Drive/Dropbox)
  • Remote access via browser, eneo Insight or Insight mobile
