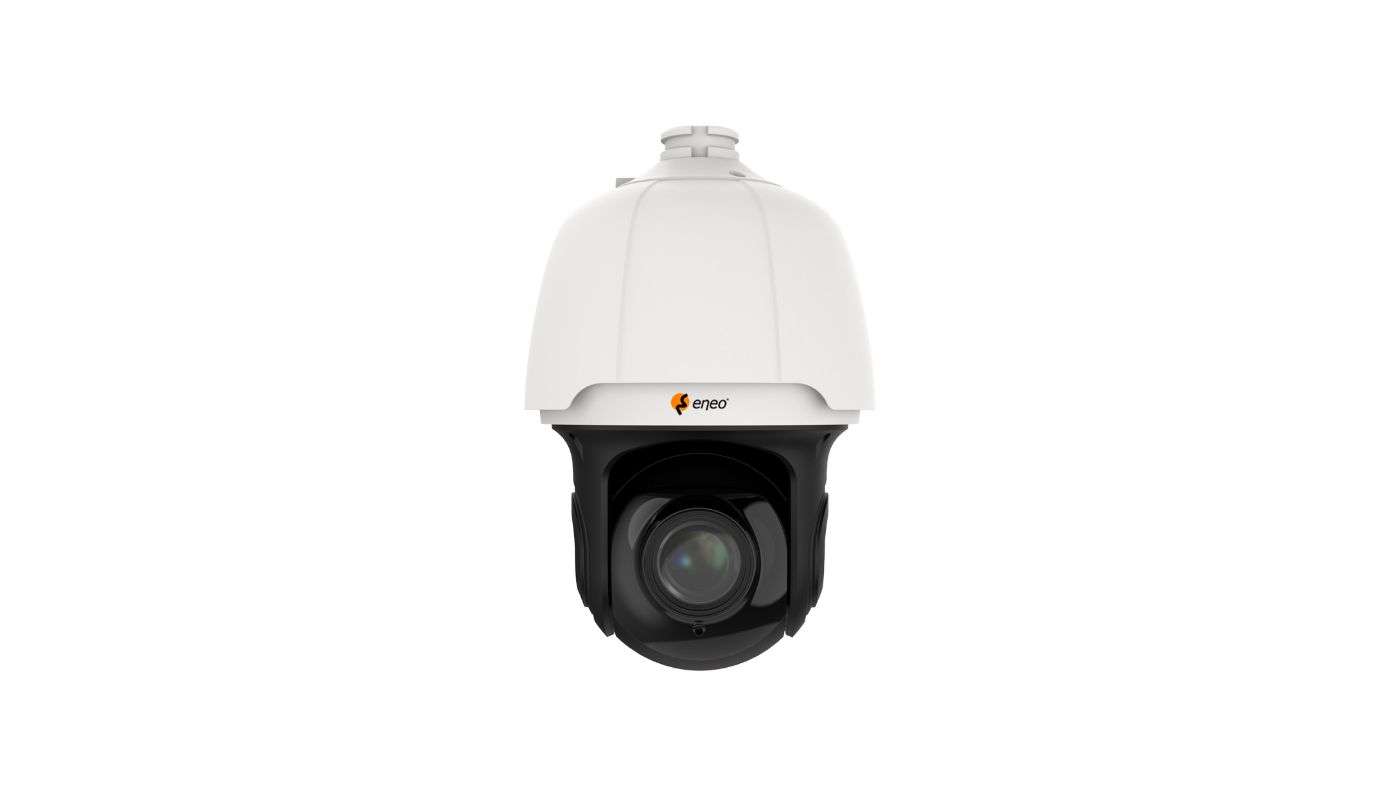

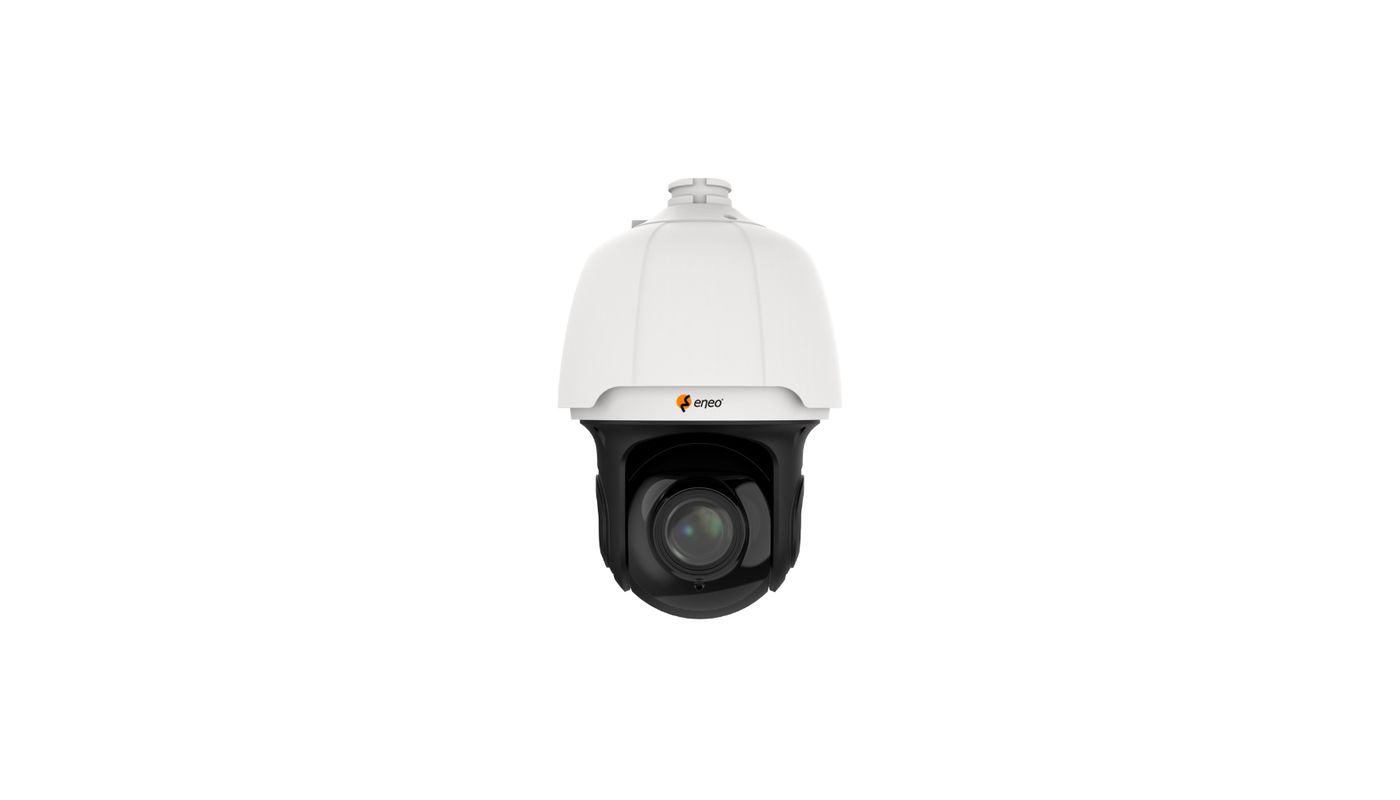

eneo INP-75A0033MIB

Manufacturer order number

240083

Brand

eneo

EAN/GTIN

4260229840665

Series

eneo IN-Serie

Camera

Camera shape

PTZ

Chip size

1/2,7"

Resolution standard

5 MP

Recording sensor

Chipset NT98528, CMOS, OmniVision OS05A20

Photosensitivity

0,003 Lux bei F1,6

System

True Day&Night

Low Speed Shutter

Yes

Manual Electric Shutter (MES)

1-5~1-20,000sec.

Flickerless function

Yes

Backlight compensation

Yes

Day/night switching

Switchable IR Filter (ICR)

Day/night mode

Automatic,Night,Time

White balance

Automatic,Manual

Video

Resolution (extended)

2592x1944 (4:3),2592x1520 (16:9),2048x1536 (4:3),2304x1296 (16:9),1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3),320x240 (4:3)

Picture size

16:9, 4:3

Video Compression

H.264, H.264+, H.265, H.265+, M-JPEG

Data stream types

Triple-Stream(Main/Sub/Mobile)

Image transfer rate max.

30 fps

Lens

Lens Type

Auto Focus Zoom

Focal length

4,3 - 142 mm

MOD (Minimum Object Distance)

1.5 m

Aperture Range (F)

F1.6

Vertical angle of view

41,6 - 1,7°

Horizontal angle of view

55 - 2,3°

Zoomfactor (optical)

33

Display

Image resolution max.

2592x1944

DORI

Perceiving (25px/m)

107 - 2574 m

Watch (62px/m)

42,5 - 1039 m

Detect (125px/m)

20,7 - 518 m

Identify (250px/m)

10 - 258 m

Functions

Multicast

Yes

Motion detector

Yes

Analysis

Abandoned and Removed Objects (SOD), Attendance (FA), Crowds (CD), Enter Region, Face Attributes (AD), Face Capture (FD), Face Recognition (FR), Heat Map (HM), Intrusion, Intrusion (PID), Leave Region, License plate recognition (LPD), License plate recognition (LPR), Line crossing (LCD), Manipulation (TD), Object Classification Human / Vehicle (PD&VD), Passage count (CC), Queues (QD), Rare Sounds (RSD)

Alarm processing

recording internal storage (SD card),E-Mail,FTP,Cloud Upload

Tours

1 selectable tour

Turning range

360

Speed (manual control)

200 °/sec

Speed (Target Approach)

200 °/sec

Audio support

Yes

Audio

2 Way Audio

Password

Administrator and User

Internal memory

256GB, microSDHC card, microSDXC card

Menu languages

English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish

Browser

Edge, Firefox, Google Chrome, Safari

Digital Noise Reduction (DNR)

Yes

Privacy Zone

Areas-ON/OFF switchable

Network

Network Protocols

DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, IPv4, IPv6, NTP, PPPoE, RTP, RTSP, SMTP, TCP-IP, UDP, UPnP

Interfaces / Inputs/ Outputs

External connections

RJ-45,Audio input,12VDC input (DC plug),Alarm in/output,micro SD card slot 256 GB,connection cable approx.45cm

Ethernet interface

100Base-TX, 10Base-T

Alarm inputs

1

Control Interfaces

Ethernet

General

Wide Dynamic Range (WDR)

WDR 120dB

Lighting

Infrared

Audio compression

G.711

Dimensions (WxHxD) (extended)

206,4×351,8mm

Weight

3.7 kg

Illumination range

Approx 150m

Color (Housing)

RAL9003,Pantone P 179-1 / Other colors available upon request

Housing type

Outside

Housing material

Aluminium

Heating

No

Camera Type

Domecamera

Power consumption

25.6 W

Mounting type

Wall

ONVIF

ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T

Power over Ethernet

IEEE 802.3at

ESC

1/5 ~ 1/20.000sec.

Protection

IP66

SDK

upon request

Power supply

12VDC, PoE+

Temperature Range (Operating)

-30°C ~ +60°C,@ Luftfeuchtigkeit 95% oder weniger (nicht kondensierend)

Text overlay

Switchable on/off

Parts supplied

Scope of delivery

Quick installation guide,drilling template,wall bracket,4x heavy-duty anchors,1x Allen wrench,1x waterproof cover for RJ45 connector

Notes

Remark

Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).
