INP-54M2812M0A

SKU 236326

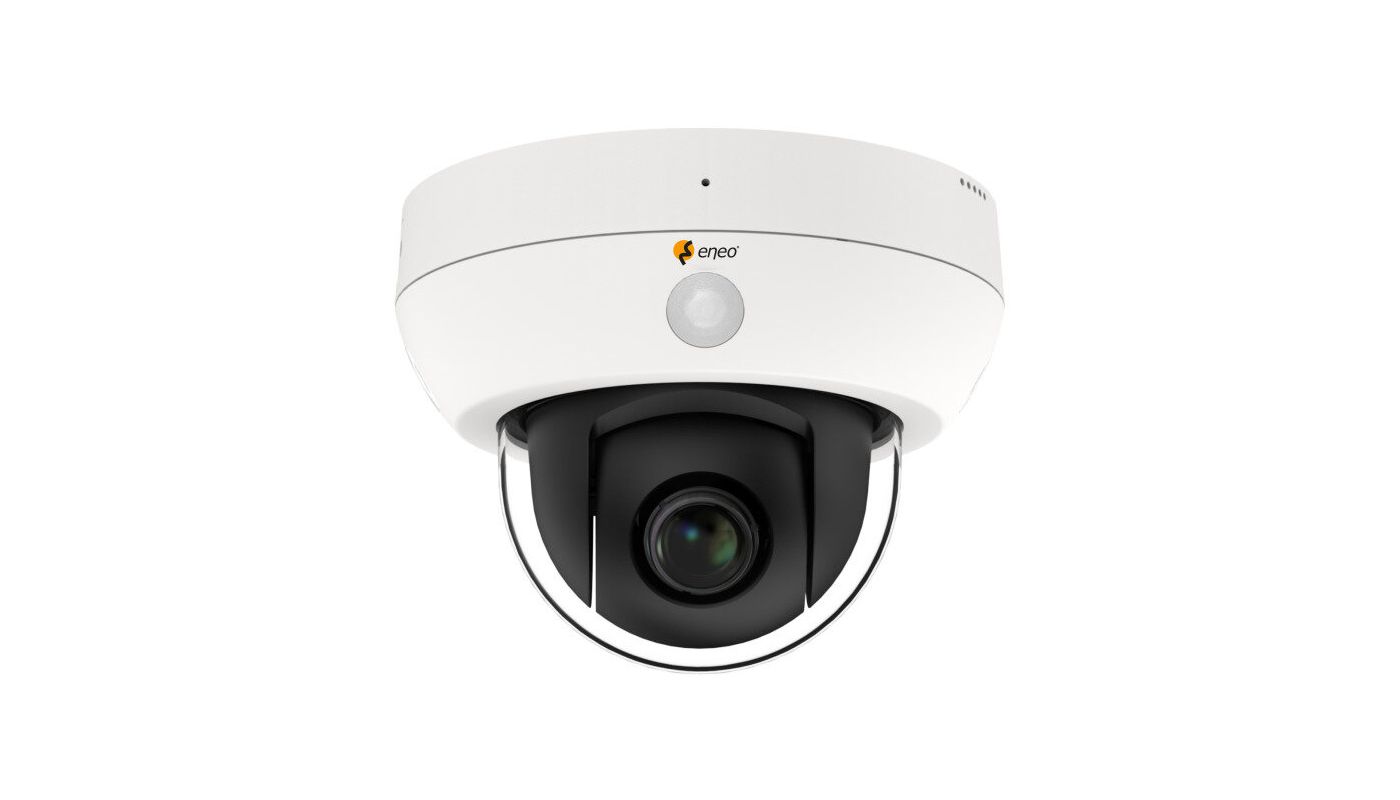

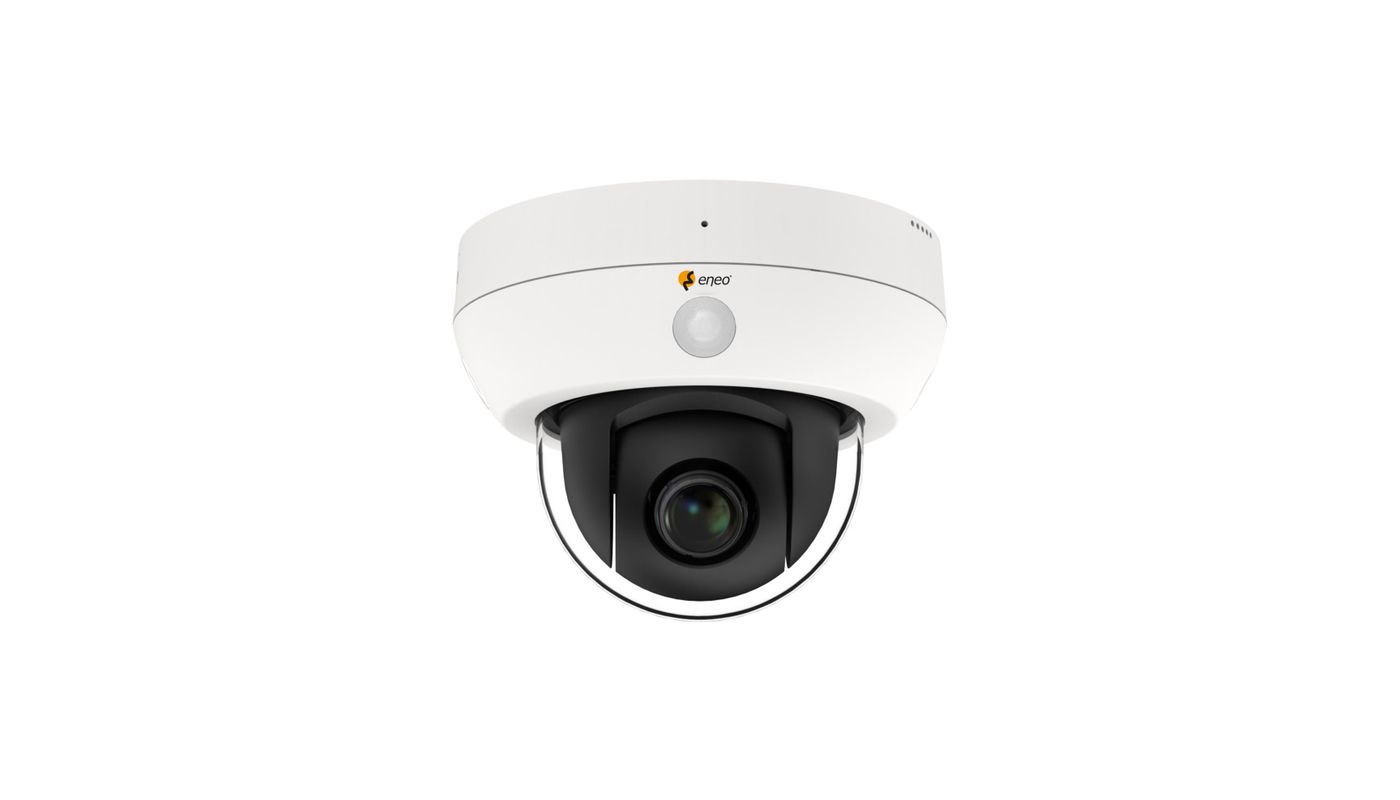

Network Dome, PTZ, 4x MVF, 2560x1440, Day/Night, WDR, A Audio, 12VDC, PoE, IP66, IK10
Data sheet

Specifications

Manufacturer order number
236326
Brand
eneo
EAN/GTIN
4260229840528
Series
eneo IN-Serie

Camera

Camera shape
PTZ
Chip size
1/1,8"
Resolution standard
4 MP
Recording sensor
CMOS, SC4210
Photosensitivity
0,001 Lux bei F1,6
System
True Day&Night
Low Speed Shutter
Yes
Manual Electric Shutter (MES)
1-5~1-20,000sec.
Flickerless function
Yes
Backlight compensation
Yes
Day/night switching
Switchable IR Filter (ICR)
Day/night mode
Automatic,Day,Time
White balance
Automatic,Manual
Signal-to-noise ratio
49.2 dB

Video

Resolution (extended)
2560x1440 (16:9),2304x1296 (16:9),1920x1080 (16:9),1280x720 (16:9),640x480 (4:3),352:240 (4:3)
Picture size
16:9, 4:3
Video Compression
H.264, H.264+, H.265, H.265+
Data stream types
Triple-Stream(Main/Sub/Mobile)
Image transfer rate max.
60 fps

Lens

Lens Type
Varifocal (motorized)
Focal length
2,8 - 12 mm
MOD (Minimum Object Distance)
1.75 m
Aperture Range (F)
F1.3
Horizontal angle of view
114,6 - 48,3°

Display

Image resolution max.
2560x1440

DORI

Perceiving (25px/m)
36.7 m
Watch (62px/m)
13.8 m
Detect (125px/m)
5.5 m

Functions

Multicast
Yes
Motion detector
Yes
Alarm processing
recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,Siren,Strobe light,Cloud Upload
Tours
no
Turning range
350
Speed (manual control)
50 °/sec
Speed (Target Approach)
50 °/sec
Audio support
Yes
Audio
93±3dB max., Built-in microphone, Built-in speaker
Password
Administrator and User
Internal memory
microSD card slot
Menu languages
English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
Browser
Edge, Firefox, Google Chrome, Safari
Digital Noise Reduction (DNR)
Yes
Privacy Zone
Areas-ON/OFF switchable

Network

Network Protocols
DDNS, DHCP, DNA, FTP, HTTP, HTTPS, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP

Interfaces / Inputs/ Outputs

External connections
RJ-45,12VDC input (DC plug),connection cable approx.45cm,micro SD card slot 256 GB
Alarm inputs
0
Control Interfaces
Ethernet

General

Wide Dynamic Range (WDR)
WDR 120dB
Lighting
Infrared, White
Zoomfactor (optical)
4
Dimensions (WxHxD) (extended)
153x118,8mm
Illumination range
Approx. 20m
Color (Housing)
RAL9003,Pantone P 179-1
Housing type
Outside
Housing material
Aluminium
Camera Type
Face, License plate recognition, People counting, Retail Intelligence
Mounting type
Ceiling, Wall
ONVIF
ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
ESC
1/5 ~ 1/20.000sec.
Protection
IP66
SDK
upon request
Power supply
12VDC, Poe
Temperature Range (Operating)
-30°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
Text overlay
Switchable on/off
Vandalism-resistant
Yes
Certifications
IK10

Parts supplied

Scope of delivery
manual,bag of screws

Notes

Remark
NDAA compliance under Section 889,The face recognition functions are only available with an inserted SD card or in conjunction with a recorder of the eneo IN series.,To guarantee you an optimum user experience,we recommend that you only use components of

Additional Productinformation

Simple PTZ dome camera for remote pan/tilt, zoom and focus adjustment.

Not suitable for continuous operation.

Main Features

  • 1/1.8" High Sensitivity SmartSens CMOS sensor,
  • Maximum resolution 2560x1440 pixels, 60fps
  • AI analysis functions including object classification
  • WDR 120dB, 3D-DNR noise reduction
  • Motorised varifocal lens 2.8-12mm
  • Smart Codec H.265/H.264, multi-streaming
  • Browser independent (Edge, Safari, Firefox, Chrome)
  • Supports ONVIF profiles S/T/G/M
  • Local storage via Micro SD card
  • Built-in loudspeaker and microphone
  • NDAA compliance
  • IR and white light LED illumination, IP66, IK10
