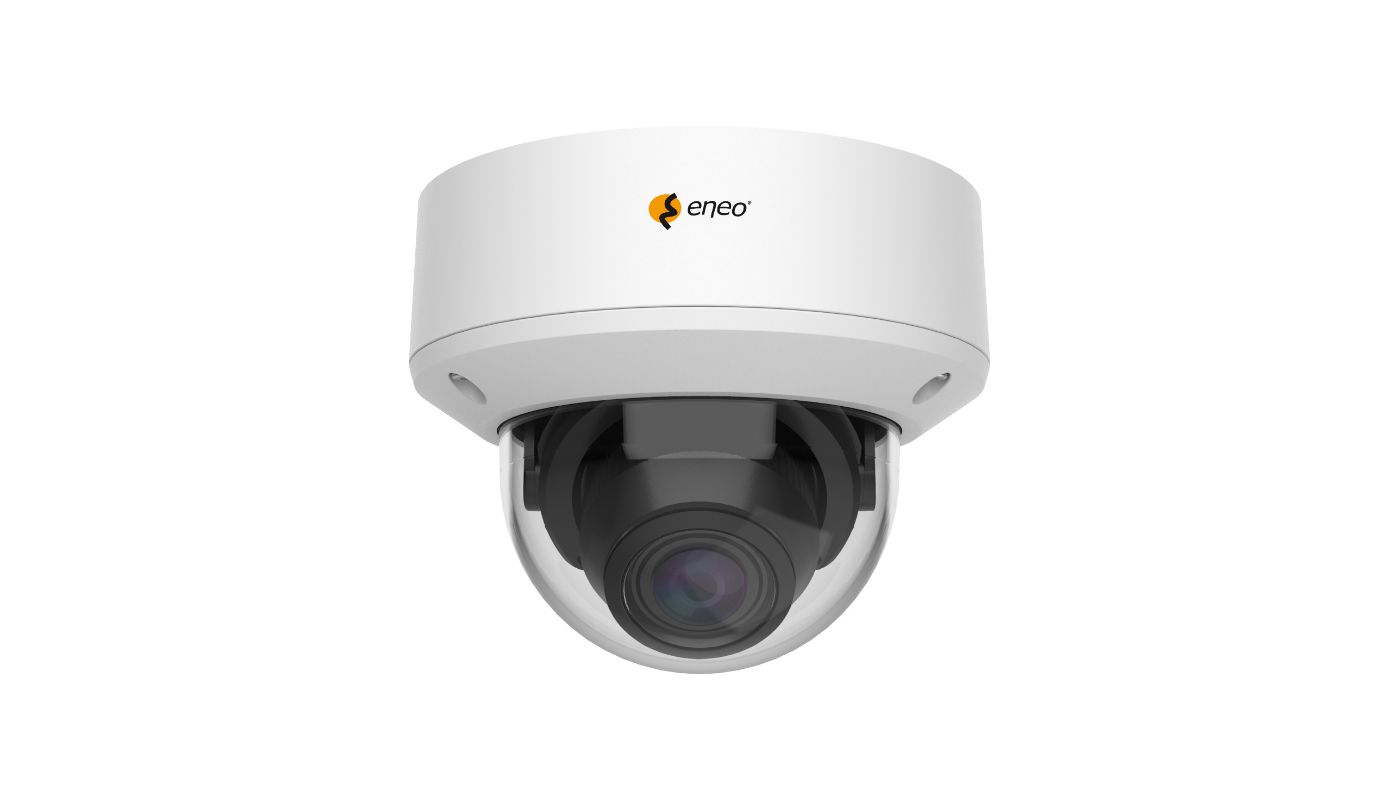

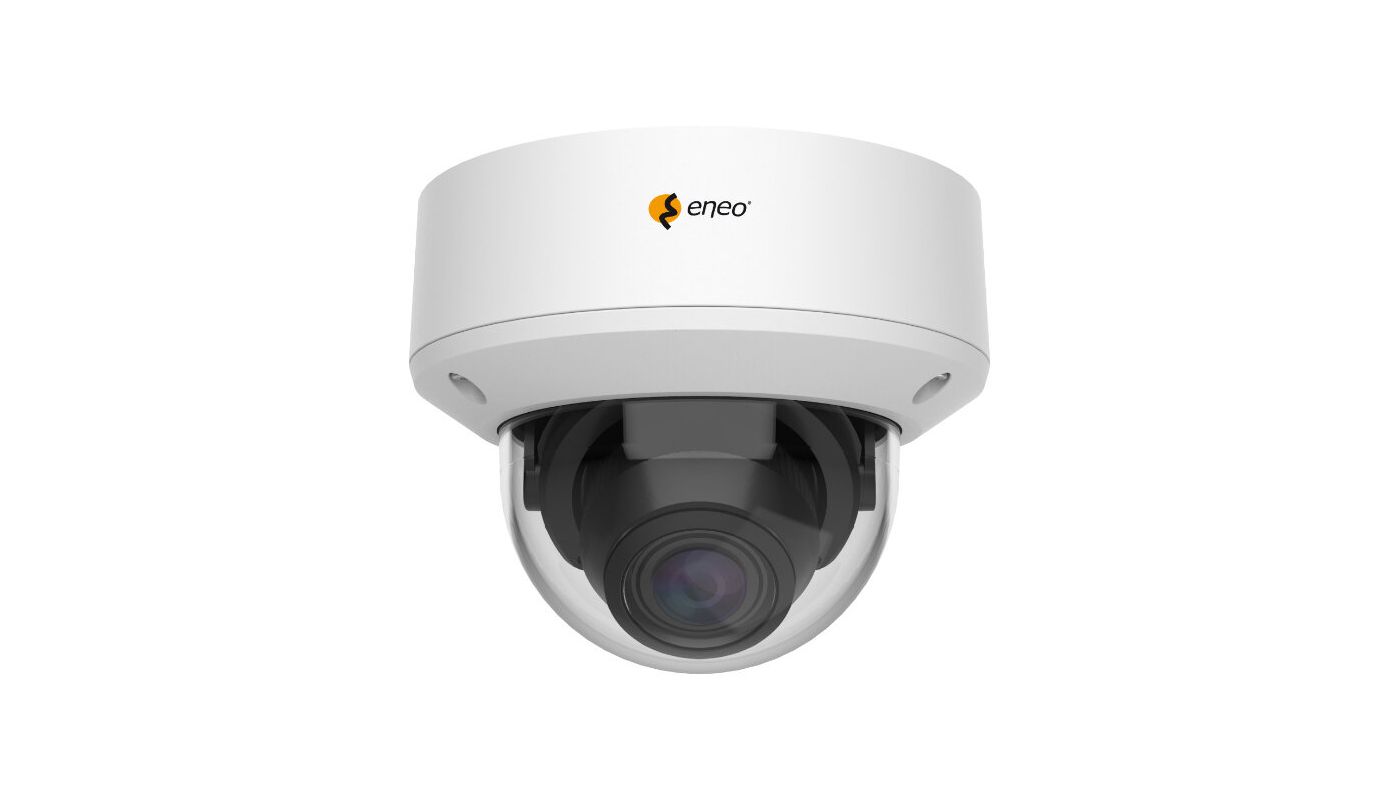

Network Dome Fix, 2592x1944, Day/Night, WDR, AI 2,7-13,5mm, IR, 12VDC, IP67
SKU
235253
Main Features
- 1/2.7" CMOS sensor,5 MP/30fps
- AI analysis functions including object classification
- WDR 120dB, 3D-DNR Noise Reduction
- Motorized varifocal lens 2.7-13.5mm
- Smart Codec H.265/H.264, multi-streaming
- Browser independent (IE, Edge, Safari, Firefox, Chrome)
- Supports ONVIF Profile S and Profile T
- Multilingual menu navigation (OSD)
- Local storage via Micro SD card
- Supports audio and external alarm input and output
- Power supply 12VDC or PoE IEEE 802.3af
- IR LED illumination, IP67 and vandal proof IK10
For Prices and Availability please login.
Brand | eneo |
---|---|
Camera type | Dome |
Sensor size | 1/2.7" |
Resolution Standard | 5 Megapixel |
Sensitivity | 0,003 Lux at F1,6 |
System | True Day&Night |
Imager | CMOS |
Day&Night switch | ICR |
Low Speed Shutter | no, yes |
Backlight Compensation | BLC, HLC |
Image resolution max. | 2592x1944 |
Wide Dynamic Range (WDR) | WDR 120dB |
Motion Detector | yes |
Image Transmission Rate | 30 fps |
Video compression | H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG |
Lens Type | Varifocal (motorized) |
llumination | Infrared |
Zoom Factor | 4x |
Focal Length | 2,7 - 13,5 mm |
Digital Zoom | yes |
MOD (Mininum Object Distance) | 0,3 m |
Iris Control | DC |
Vertical Angle of View | 73 - 23° |
Horizontal Angle of View | 102 - 31° |
Detect (25px/m) | 62,5 - 260,3 m |
Observe (62 px/m) | 24,3 - 104,5 m |
Recognize (125 px/m) | 11,5 - 52,2 m |
Identify (250 px/m) | 5,2 - 25,6 m |
Analysis functions | Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD) |
Rotation range | 350° |
Audio support | yes |
Audio | 1/1 Line input and output, 2 Way Audio |
Internal storage | 256GB, microSDHC card, microSDXC card |
Remote configuration | Browser |
Digital Noise Reduction | yes |
Ethernet interface | 100Base-TX, 10Base-T |
Alarm inputs | 1 |
Alarm outputs | 1 |
Serial interfaces | Ethernet |
Series | eneo IN-Series |
Dimensions (HxWxD) | 109x148,7mm |
Weight | 950g |
Illumination range | approx. 30m |
Color (housing) | Pantone P 179-1, RAL9003 |
Color (bubble) | clear |
Housing | Outdoor |
Hosuing material | Aluminium |
Heater | no |
Camera Type | Face recognition, License plate recognition, People Count, Retail Intelligence |
Power consumption | 7.5W |
Blower | no |
Mounting | Ceiling mount, Wall mount |
ONVIF | ONVIF Profile G, ONVIF Profile S, ONVIF Profile T |
Power over Ethernet | IEEE 802.3af |
Protection rating | IP67 |
Supply voltage | 12VDC, PoE |
Operating temperature | -35°C ~ +55°C, @ Humidity 90% or less (non-condensing) |
Vandal proof | yes |
Certifications | IK10 |
EAN/GTIN | 4260229840023 |
Manufacturer order number | 235253 |
- Marketing Infos PDF Produkt Katalog_DE.pdf Produkt Katalog 1.1 MB
- Tools HTML eneo_Site_Manager.html eneoSite ManagerTool 914 B
- Software HTML eneo_Product_ Software.html eneo_Product_Software_Download Portal 823 B
- Firmware HTML eneo_Product_ Firmware.html Produkt Firmware_CAD Files 835 B
- Manufacturer data sheet PDF 235253_en_sup.pdf Original product information from the manufacturer 827 kB
- Marketing Infos PDF Product Guide_EN.pdf Product Guide 1.1 MB
- Marketing Infos PDF RTSP-Konfiguration_eneo.pdf RTSP Streams Konfiguration für eneo Kameras und Rekorder 220.3 kB
- Marketing Infos PDF Zubehoeruebersicht_eneo_IN-Serie.pdf Zubehörübersicht_eneo_IN-Serie 1.6 MB
- Marketing Infos PDF OPEN SOURCE SOFTWARE LICENSE INFORMATION.pdf Open Source Software License Information 72.2 kB
- Marketing Infos PDF eneo IN-Serie_AI_Matrix.pdf eneo IN-Serie_AI_Matrix 563.4 kB
- Marketing Infos PDF eneo_AI_FAQ_DE.pdf FAQ für die KI-Funktionen der neuen eneo IN-Serie 516.8 kB
- Marketing Infos PDF eneo_AI_FAQ_EN.pdf FAQ for the AI Functions of the new eneo IN series 467.8 kB
- Marketing Infos PDF NDAA konforme Produkte.pdf NDAA konforme Produkte 202.9 kB
- Manufacturer datasheet PDF Original product information from the manufacturer
- Data sheet PDF 235253_ind-65m2713m0a.pdf Data sheet with specifications generated live from the product database <350KB
- Specifications text DOC 235253_ind-65m2713m0a.doc Technical data as Word document, generated live from the product database <50KB
