IND-58F0028MTLA
SKU 238647Specifications
Manufacturer order number | 238647 |
---|---|
EAN/GTIN | 4260229840641 |
Series | eneo IN-Serie |
Alarm inputs | 0 |
---|---|
Alarm processing | recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,Red & bule flashing lights,Siren,Cloud Upload |
Audio | 2 Way Audio, Built-in microphone, Built-in speaker |
Audio support | Yes |
Backlight compensation | No |
Brand | eneo |
Browser | Edge, Firefox, Google Chrome, Safari |
Camera Type | Face, License plate recognition, People counting, Retail Intelligence |
Camera shape | Minsters |
Chip size | 1/1,8" |
Control Interfaces | Ethernet |
Data stream types | Triple-Stream(Main/Sub/Mobile) |
Day/night mode | not available |
Day/night switching | no |
Detect (125px/m) | 7.8 m |
Digital Noise Reduction (DNR) | Yes |

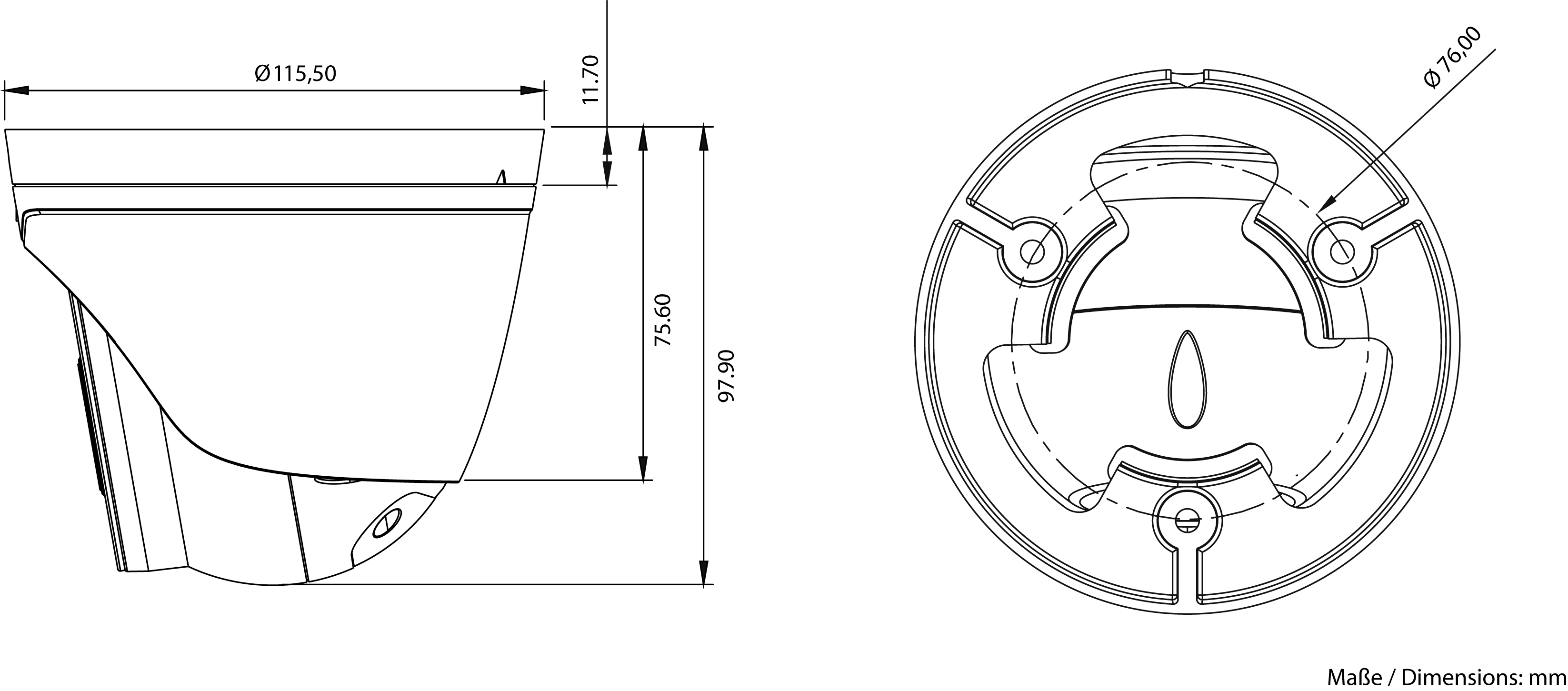

Dimensions (WxHxD) (extended) | 97,9x115,5mm |
External connections | RJ-45,12VDC input (DC plug),connection cable approx.30cm,micro SD card slot 256 GB |
Flickerless function | Yes |
Focal length | 2,8 mm |
Heating | Yes |
Horizontal angle of view | 112° |
Housing material | Aluminium |
Housing type | Outside |
Identify (250px/m) | 7.8 m |
Image resolution max. | 3640x2160 |
Image transfer rate max. | 30 fps |
Integrated wall mount | No |
Internal memory | microSD card slot |
Lens Type | Prime lens |
Lighting | White |
Low Speed Shutter | No |
MOD (Minimum Object Distance) | 0.7 m |
Menu languages | English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish |
Motion detector | No |
Mounting type | Ceiling, Wall |
Multicast | Yes |
ONVIF | ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T |
Password | Administrator and User |
Perceiving (25px/m) | 84.4 m |
Photosensitivity | 0.0005 Lux @ F1,0 |
Power over Ethernet | IEEE 802.3af |
Power supply | 12VDC, Poe |
Protection | IP67 |
Recording sensor | CMOS |
Remark | The face detection and license plate recognition functions are only available with an inserted SD card or in conjunction with a recorder from the eneo IN series.,NDAA compliance under Section 889,To guarantee you an optimum user experience,we recommend th |
Resolution (extended) | 3840x2160 (16:9),2592x1944 (4:3),3072x1728 (16:9),2592x1520 (16:9),2304x1296 (16:9),1920x1080 (16:9),640x480 (4:3),320x240 (4:3) |
Resolution standard | 8 MP |
SDK | upon request |
Scope of delivery | manual,bag of screws |
Signal-to-noise ratio | 49 dB |
Sunshade canopy | No |
System | 24h Color |
Temperature Range (Operating) | -30°C ~ +55°C,@ Luftfeuchtigkeit 95% oder weniger (nicht kondensierend) |
Vandalism-resistant | No |
Video Compression | H.264, H.264+, H.265, H.265+, M-JPEG |
Watch (62px/m) | 33.3 m |
White balance | Automatic,Manual |
Wide Dynamic Range (WDR) | WDR 120dB |
Wiper | No |
Zoom Factor (Digital) | 0 |
Additional Productinformation

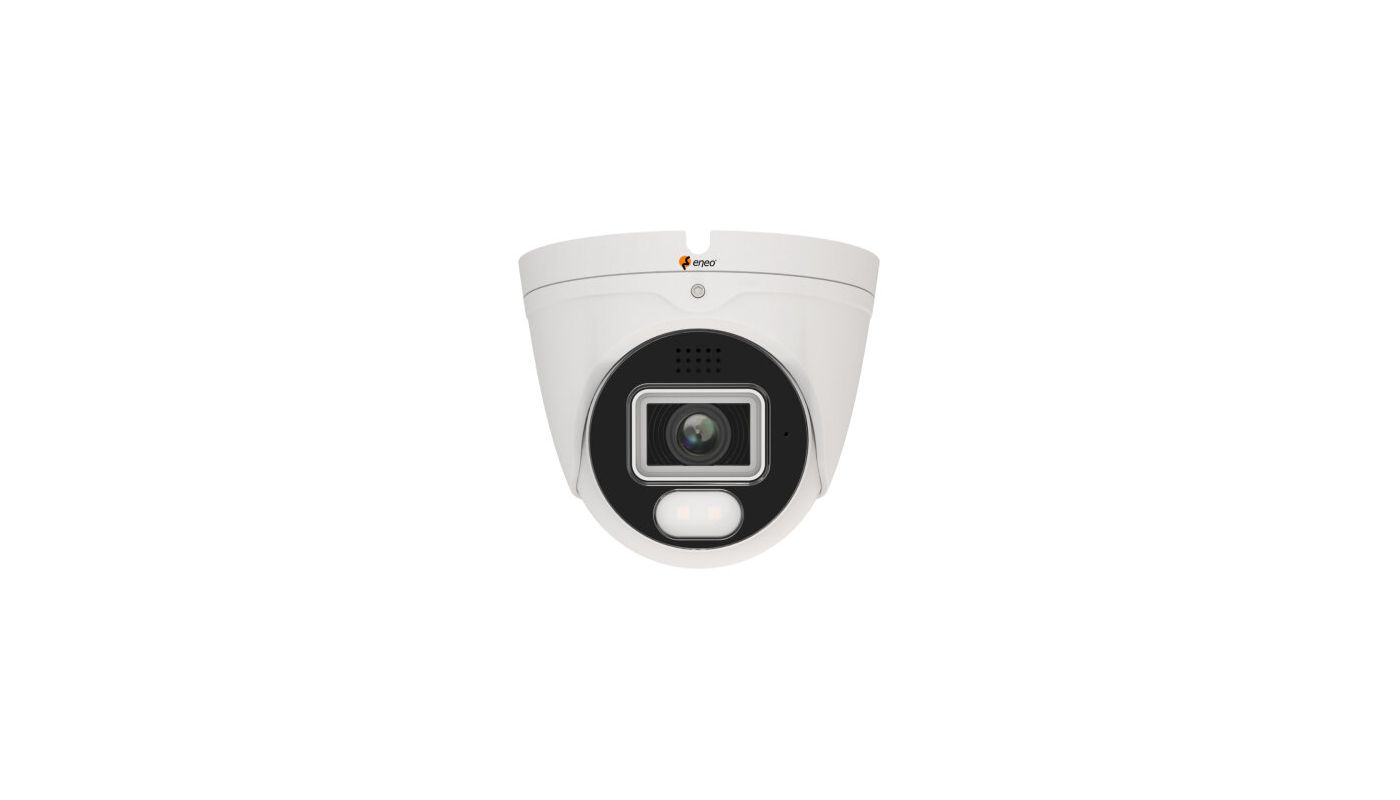

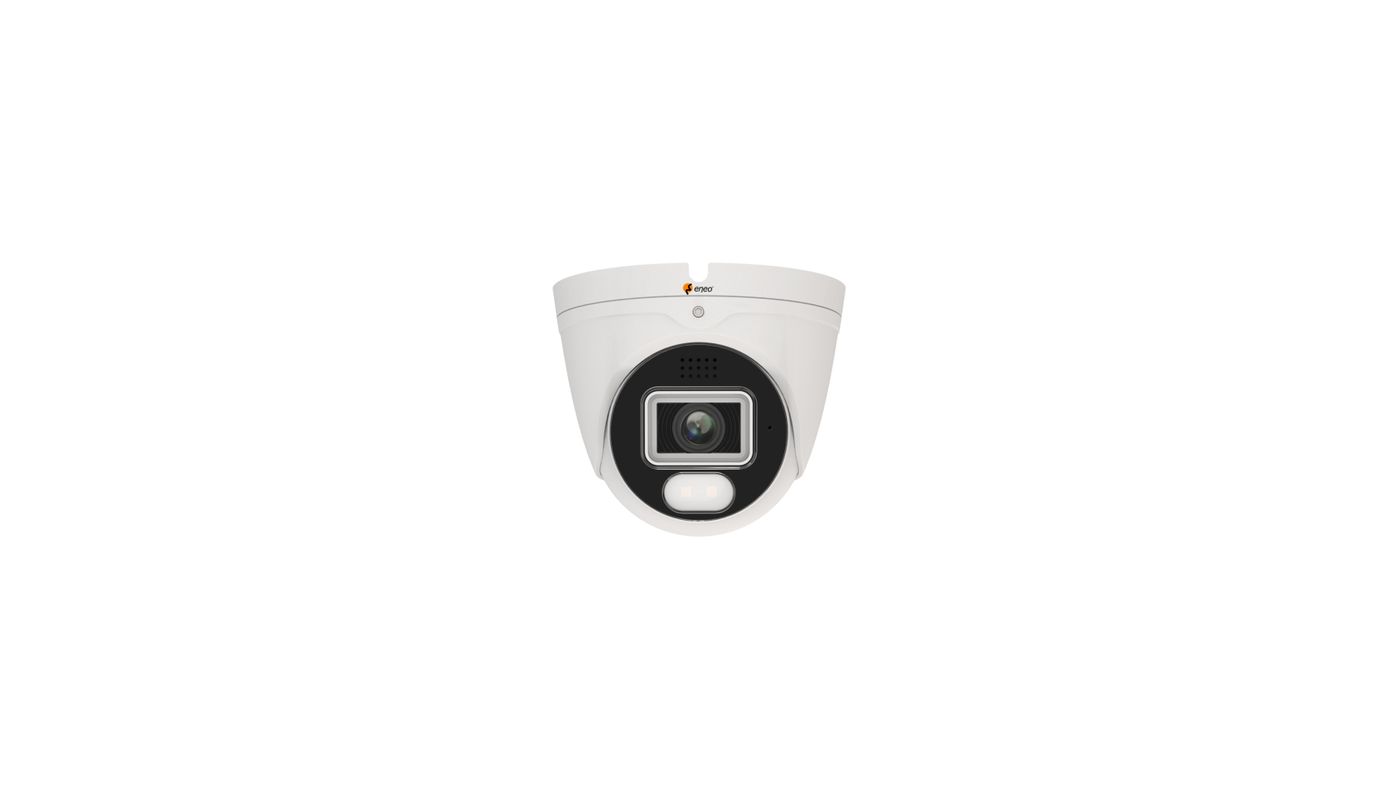

The eneo 8 megapixel dome camera offers advanced surveillance technology, ideal for use in demanding environments. Equipped with a highly sensitive 1/1.8&34; Sony STARVIS CMOS sensor, it guarantees exceptional detail detection, even in dimly lit areas. Thanks to the 4K resolution of 3840x2160 pixels at 30 frames per second, the camera delivers razor-sharp and smooth images that capture every movement precisely.
The integrated AI analysis functions, including object classification, face and license plate recognition and people counting, enable smart and automated surveillance. These functions are ideal for use in retail, traffic monitoring and security applications. Thanks to the WDR of 120 dB and the 3D-DNR noise reduction, excellent images are achieved even in challenging lighting conditions and backlight.
The fixed focal length of 2.8 mm offers comprehensive coverage with a horizontal angle of view of 112 °. With the integrated white light LED lighting and a range of up to 25 meters, surveillance is ensured even in complete darkness.
Another highlight is the versatility in connectivity: Thanks to ONVIF profiles S, T and G, the camera can be easily integrated into existing surveillance systems. It is browser-independent, supports all common web browsers and offers 2-way audio for direct communication. Local storage via a MicroSD card provides additional flexibility when backing up data.
With its robust IP67 aluminum housing, the camera is ideal for outdoor use and can withstand extreme weather conditions. Its compact design and low weight of 575 g enable easy installation on walls or ceilings.
The eneo 8 megapixel dome camera combines advanced technology with reliable performance - perfect for professional use in any environment.
Main Features
- 1/1.8" Sony STARVIS CMOS sensor
- Very good detail recognition even in dark areas
- Maximum resolution 3840x2160 pixels, 30fps
- AI analysis functions including object classification
- WDR 120dB, 3D DNR noise reduction
- Lens fixed focal length 2.8mm
- Smart codec H.265/H.264, multi-streaming
- Browser-independent (Edge, Safari, Firefox, Chrome)
- Supports ONVIF profiles S/T/G
- Local storage via micro SD card
- NDAA compliance
- White light LED illumination, IP67
