IND-45F0022M0A
SKU 236320

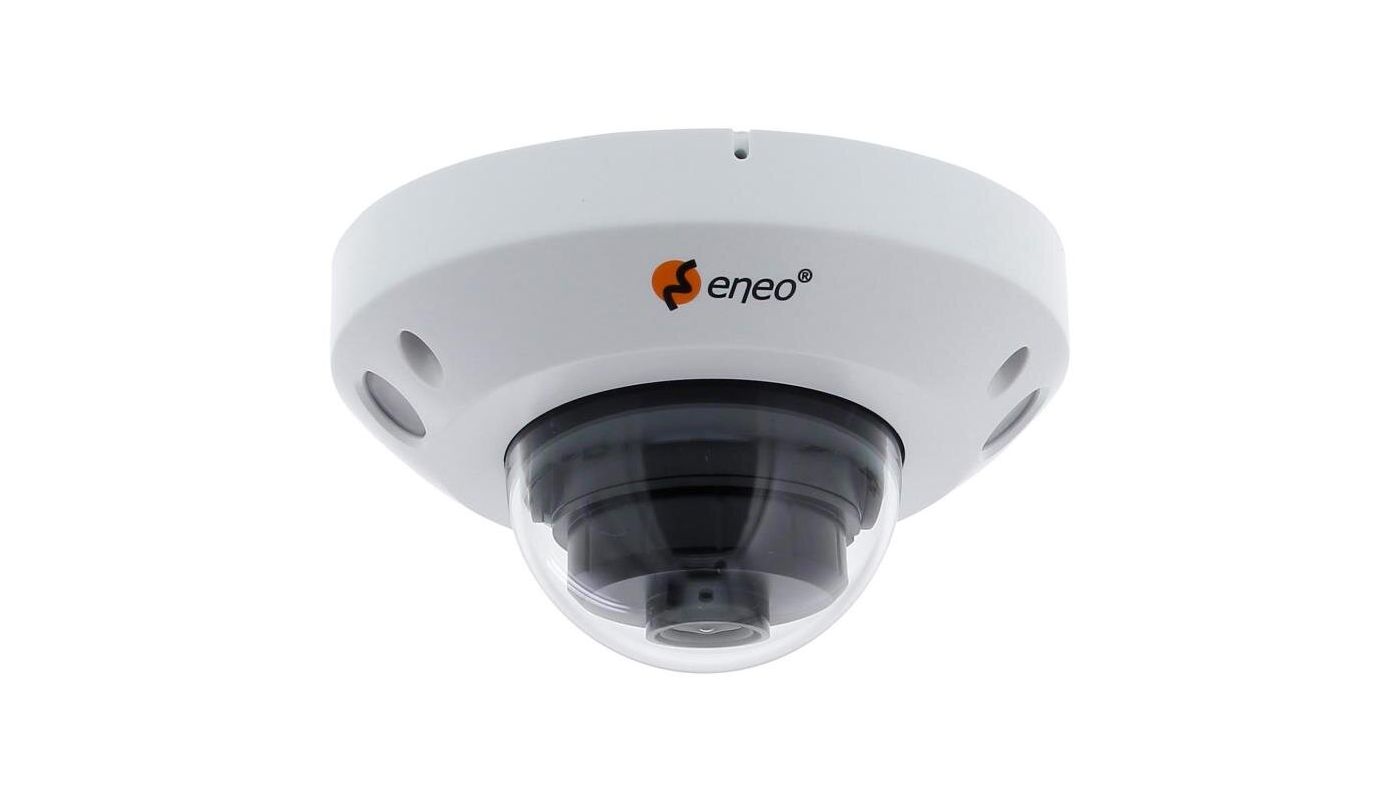

Mini Network Dome Fix, 2880x1620, Day/Night, WDR, AI 2,2mm, IR, 12VDC, PoE, IP66
For Prices and Availability please login.
Specifications
- Manufacturer order number
- 236320
- Brand
- eneo
- EAN/GTIN
- 4260229840542
- Series
- eneo IN-Serie
Camera
- Camera shape
- Minsters
- Chip size
- 1/2,7"
- Resolution standard
- 5 MP
- Recording sensor
- CMOS, Sensor SC500AI
- Photosensitivity
- 0,002 Lux bei F1,6
- System
- True Day&Night
- Low Speed Shutter
- Yes
- Manual Electric Shutter (MES)
- 1-5~1-20,000sec.
- Flickerless function
- Yes
- Backlight compensation
- Yes
- Day/night switching
- Switchable IR Filter (ICR)
- Day/night mode
- Automatic,Day,Night,Image,Time
- White balance
- Automatic,Manual
- Signal-to-noise ratio
- 39 dB
Video
- Resolution (extended)
- 2880x1620 (16:9),2592x1520 (16:9),2304x1296 (16:9),1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3),320x240 (4:3)
- Video Compression
- H.264, H.264+, H.265, H.265+, M-JPEG
- Data stream types
- Triple-Stream(Main/Sub/Mobile)
- Image transfer rate max.
- 30 fps
Lens
- Lens Type
- Prime lens
- Focal length
- 2,2 mm
- MOD (Minimum Object Distance)
- 0.2 m
- Aperture Range (F)
- F2.0
- Horizontal angle of view
- 156°
Display
- Image resolution max.
- 2880x1620
DORI
- Perceiving (25px/m)
- 14,6 m
- Watch (62px/m)
- 5,1 m
- Detect (125px/m)
- 2,3 m
- Identify (250px/m)
- 1,3 m
Functions
- Multicast
- Yes
- Motion detector
- Yes
- Alarm processing
- recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,Cloud Upload
- Audio support
- Yes
- Audio
- 1 Way Audio, Built-in microphone
- Password
- Administrator and User
- Internal memory
- microSD card slot
- Menu languages
- English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
- Browser
- Edge, Firefox, Google Chrome, Safari
- Digital Noise Reduction (DNR)
- Yes
- Privacy Zone
- Areas-ON/OFF switchable
Network
- Network Protocols
- DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP
Interfaces / Inputs/ Outputs
- External connections
- RJ-45,micro SD card slot 256 GB
- Alarm inputs
- 0
- Control Interfaces
- Ethernet
General
- Wide Dynamic Range (WDR)
- WDR 120dB
- Lighting
- Infrared
- Dimensions (WxHxD) (extended)
- 64,3x115,3mm
- Illumination range
- Approx. 20m
- Color (Housing)
- RAL9003,Pantone P 179-1
- Color (dome)
- clear
- Housing type
- Outside
- Housing material
- Aluminium, Plastic
- Heating
- No
- Camera Type
- Face, License plate recognition, People counting, Retail Intelligence
- Mounting type
- Ceiling, Wall
- ONVIF
- ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- ESC
- 1/5 ~ 1/20.000sec.
- Protection
- IP66
- SDK
- upon request
- Power supply
- Poe
- Temperature Range (Operating)
- -35°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
- Text overlay
- Switchable on/off
Parts supplied
- Scope of delivery
- manual,bag of screws
Notes
- Remark
- Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).
Additional Productinformation
The facial recognition and license plate recognition functions are only available with an inserted SD card or in conjunction with an eneo IN series recorder. To ensure an optimal user experience, we recommend using only components from the same brand in a system. eneo cannot guarantee functionality if multiple brands are used together. If combined use is necessary, we offer a paid compatibility check (for more information, see item number 229235 at VIDEOR).
Main Features
- 1/2.7" CMOS sensor, maximum resolution 5 MP/30fps
- AI analysis functions including object classification
- WDR 120dB, 3D-DNR noise reduction
- Fixed focal length lens 2.2mm (HFoV 156°)
- Smart Codec H.265/H.264, multi-streaming
- Browser independent (IE, Edge, Safari, Firefox, Chrome)
- Supports ONVIF profiles S/T/G/M
- Multilingual menu navigation (OSD)
- Local storage via Micro SD card
- Supports audio (built-in microphone)
- NDAA compliance
