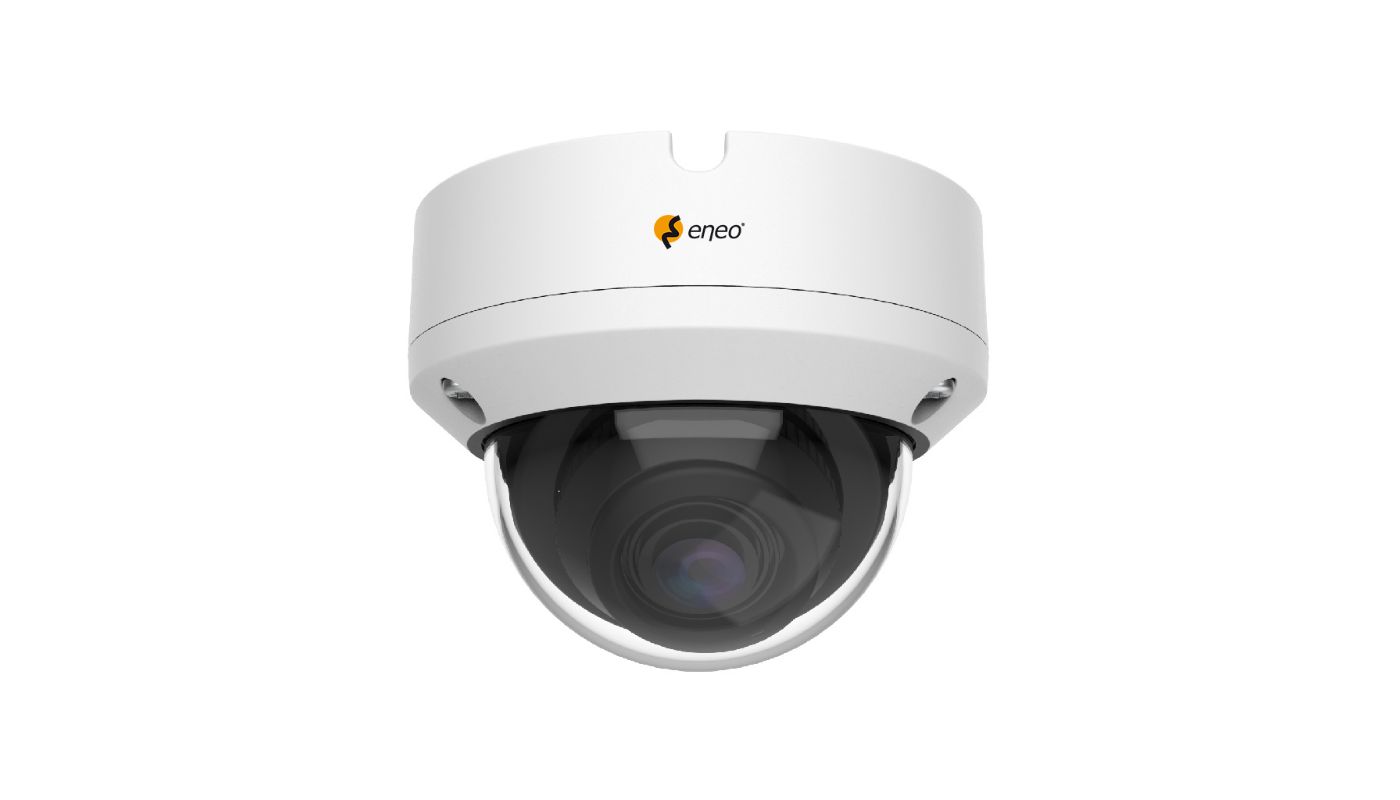

eneo IND-42M2808M0A
SKU 233796
Mini Network Dome Camera Fix, 1920x1080, Day/Night, WDR, AI 2,8-8mm, IR, 12VDC, PoE, IP66, IK10
For Prices and Availability please login.
phased-out
calcActive())">
Specifications
- Brand
- eneo
- EAN/GTIN
- 4260229840191
- Manufacturer order number
- 233796
- Series
- eneo IN-Serie
Camera
- Backlight compensation
- Yes
- Camera shape
- Minsters
- Chip size
- 1/2,8"
- Day/night mode
- Automatic,Day,Night,Image,Time
- Day/night switching
- Switchable IR Filter (ICR)
- Flickerless function
- Yes
- Low Speed Shutter
- Yes
- Manual Electric Shutter (MES)
- 1-5~1-20,000sec.
- Photosensitivity
- 0,002 Lux bei F1,2
- Recording sensor
- CMOS, Sony IMX307
- Resolution standard
- 2 MP
- Signal-to-noise ratio
- 36 dB
- System
- True Day&Night
- White balance
- Automatic,Manual
DORI
- Detect (125px/m)
- 7,4 - 19,3 m
- Identify (250px/m)
- 2,7 - 9,7 m
- Perceiving (25px/m)
- 45,7 - 99,5 m
- Watch (62px/m)
- 16,8 - 39,3 m
Lens
- Aperture Range (F)
- F1,2
- Focal length
- 2,8 - 8 mm
- Horizontal angle of view
- 107° - 45°
- Lens Type
- Varifocal (motorized)
- MOD (Minimum Object Distance)
- 0.8 m
- Vertical angle of view
- 55° - 26°
- Zoomfactor (optical)
- 2.8
Video
- Data stream types
- Triple-Stream(Main/Sub/Mobile)
- Image transfer rate max.
- 60 fps
- Picture size
- 16:9, 4:3
- Resolution (extended)
- 1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3),320x240 (4:3)
- Video Compression
- H.264, H.264+, H.265, H.265+, M-JPEG
Display
- Image resolution max.
- 1920x1080
Functions
- Alarm processing
- recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,alarm out,Cloud Upload
- Analysis
- Image rotation for cameras mounted at a 90° angle, Abandoned and Removed Objects (SOD), Attendance (FA), Crowds (CD), Enter Region, Face Attributes (AD), Face Capture (FD), Face Recognition (FR), Heat Map (HM), Intrusion (PID), Leave Region, License plate recognition (LPD), License plate recognition (LPR), Line crossing (LCD), Manipulation (TD), Object Classification Human / Vehicle (PD&VD), Passage count (CC), Queues (QD), Rare Sounds (RSD)
- Audio
- 2 Way Audio
- Audio support
- Yes
- Browser
- Edge, Firefox, Google Chrome, Safari
- Digital Noise Reduction (DNR)
- Yes
- Internal memory
- microSD card slot
- Menu languages
- English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
- Motion detector
- Yes
- Multicast
- Yes
- Password
- Administrator and User
- Privacy Zone
- Areas-ON/OFF switchable
- Turning range
- 350 °
- Vertical tilt range
- 0~ +80°
Network
- Network Protocols
- DDNS, DHCP, DNA, FTP, HTTP, HTTPS, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP
- Security
- Complicated password, IEEE 802.1X-Authentication (available from firmware version 8.2.4.1), IP address filtering, Password
Interfaces / Inputs/ Outputs
- Alarm inputs
- 1
- Control Interfaces
- Ethernet
- Ethernet interface
- 100Base-TX, 10Base-T
- External connections
- RJ-45,Alarm in/output,Audio input/output,12VDC input (DC plug),connection cable approx.45cm,micro SD card slot 256 GB
General
- Audio compression
- G.711
- Camera Type
- Domecamera
- Certifications
- IK10
- Color (dome)
- clear
- Color (Housing)
- RAL9003,Pantone P 179-1 / Other colors available upon request

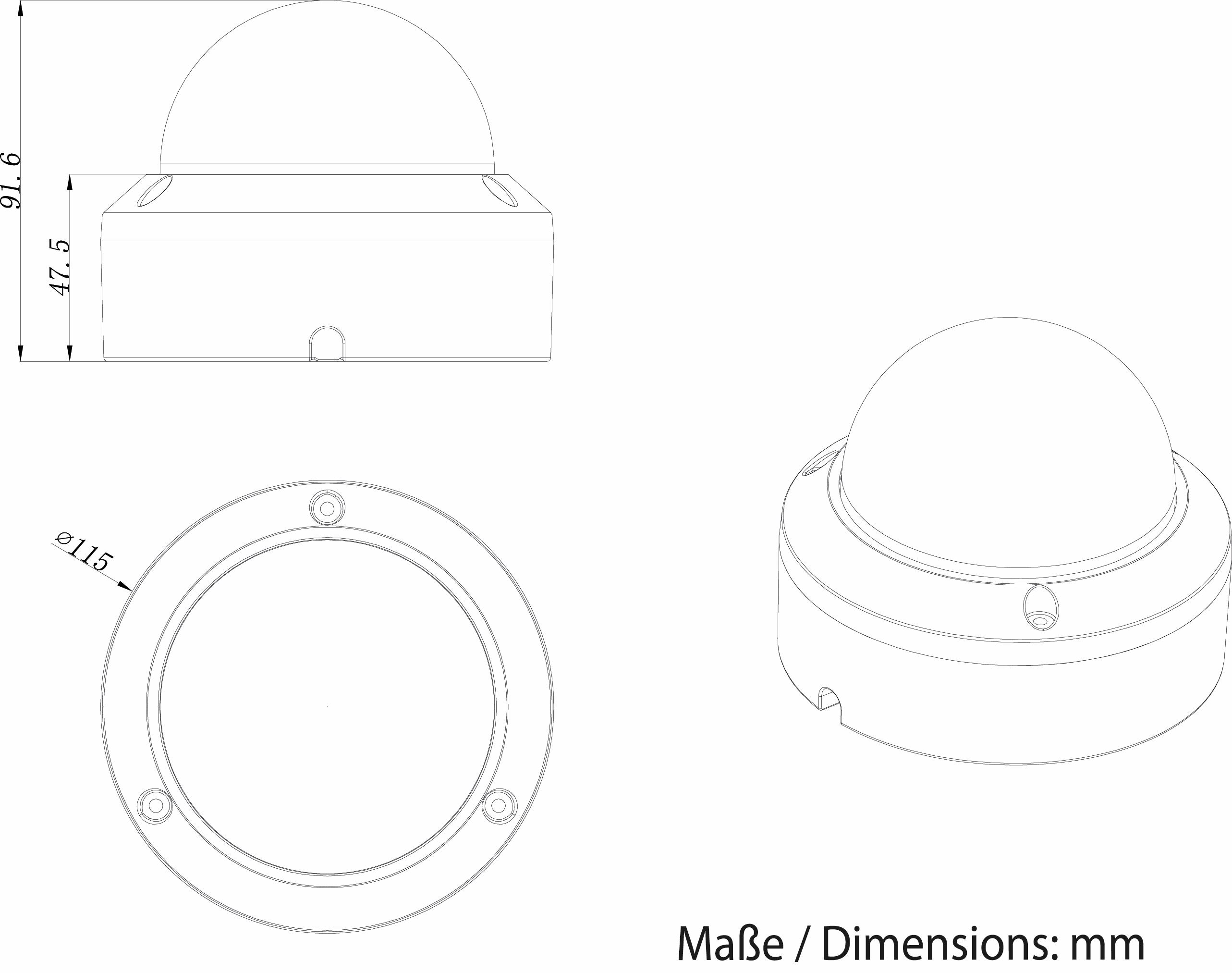

- Dimensions (WxHxD) (extended)
- 115x91,6mm
- ESC
- 1/5 ~ 1/20.000sec.
- Heating
- No
- Housing material
- Aluminium
- Housing type
- Outside
- Illumination range
- Approx. 20m
- Lighting
- Infrared
- Mounting type
- Ceiling, Wall
- ONVIF
- ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
- Power consumption
- 7 W
- Power over Ethernet
- IEEE 802.3af
- Power supply
- 12VDC, Poe
- Protection
- IP66
- SDK/API
- upon request
- Temperature Range (Operating)
- -35°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
- Text overlay
- Switchable on/off
- Vandalism-resistant
- Yes
- Weight
- 0.48 kg
- Wide Dynamic Range (WDR)
- 120dB, D-WDR
Parts supplied
- Scope of delivery
- Quick installation guide,drilling template,4 wall plugs with screws,1 Torx wrench,waterproof cover for RJ45 connector
Notes
- Remark
- Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).
Main Features
- 1/2.8" Sony STARVIS CMOS sensor,2 MP/60fps
- AI analysis functions including object classification
- WDR 120dB, 3D-DNR Noise Reduction
- Motorized varifocal lens 2.8-8mm
- Smart Codec H.265/H.264, multi-streaming
- Browser independent (IE, Edge, Safari, Firefox, Chrome)
- Supports ONVIF profiles S/T/G/M
- Multilingual menu navigation (OSD)
- Local storage via Micro SD card
- Supports audio and external alarm input and output
- NDAA compliance
- IR LED illumination, IP66 and vandal proof IK10
