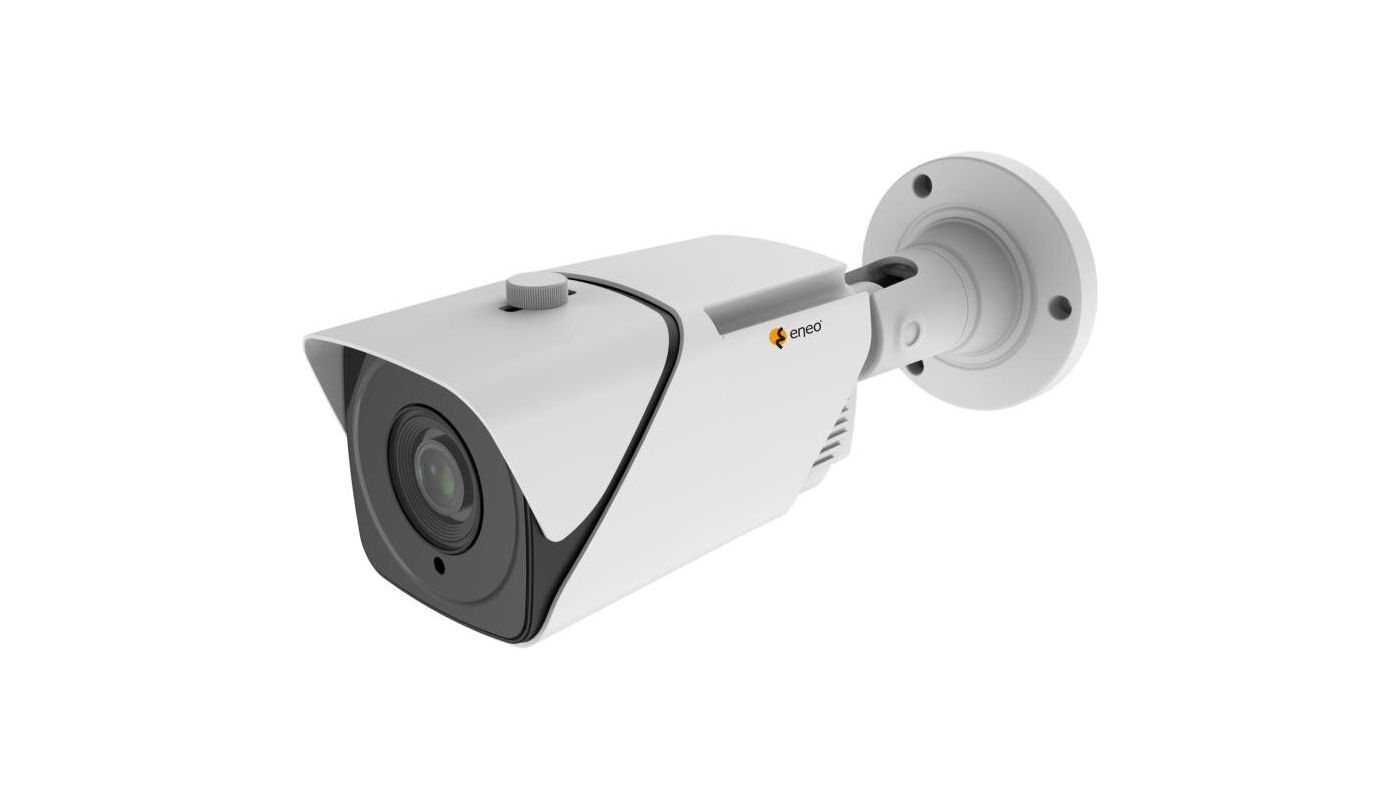

Netzwerk Kamera Bullet, Network Camera Bullet, 5,0-50mm, IR, 12VDC, PoE, IP67
SKU
236661
Main Features
- 1/2.7" Omnivision CMOS sensor,
- Maximum resolution 2592x1944 pixels, 30fps
- AI analysis functions including object classification
- WDR 120dB, 3D-DNR noise reduction
- Motorised varifocal lens 5.0-50mm
- Smart Codec H.265/H.264, multi-streaming
- Browser independent (Edge, Safari, Firefox, Chrome)
- Supports ONVIF profiles S/T/G
- Local storage via Micro SD card
- Supports audio and external alarm input and output
- Power supply 12VDC or PoE IEEE 802.3af
- IR LED illumination, IP67
For Prices and Availability please login.
Brand | eneo |
---|---|
Camera type | Bullet |
Sensor size | 1/2.7" |
Resolution Standard | 5 Megapixel |
Sensitivity | 0,003 Lux at F1,6 |
System | True Day&Night |
Imager | CMOS |
Day&Night switch | ICR |
Low Speed Shutter | yes |
Backlight Compensation | BLC, HLC |
Image resolution max. | 2592x1944 |
Wide Dynamic Range (WDR) | WDR 120dB |
Motion Detector | yes |
Image Transmission Rate | 30 fps |
Video compression | H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG |
Lens Type | Varifocal (motorized) |
llumination | Infrared |
Zoom Factor | 10x |
Focal Length | 5 - 50 mm |
Digital Zoom | yes |
MOD (Mininum Object Distance) | 0,2 m |
Iris Control | DC |
Vertical Angle of View | 33 - 5° |
Horizontal Angle of View | 45 - 7° |
Detect (25px/m) | 102,4 - 964 m |
Observe (62 px/m) | 41 - 385 m |
Recognize (125 px/m) | 20,1 - 193,2 m |
Identify (250 px/m) | 9,6 - 97 m |
Analysis functions | Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD) |
Audio support | yes |
Audio | 1/1 Line input and output, 2 Way Audio |
Internal storage | 256GB, microSDHC card, microSDXC card |
Remote configuration | Browser |
Digital Noise Reduction | yes |
Video outputs | no |
Ethernet interface | 100Base-TX, 10Base-T |
Alarm inputs | 1 |
Alarm outputs | 1 |
Serial interfaces | Ethernet |
Series | eneo IN-Series |
Dimensions (HxWxD) | 89.95x96.70x301.11mm |
Illumination range | approx. 80m |
Color (housing) | Pantone P 179-1, RAL9003 |
Housing | Outdoor |
Hosuing material | Aluminium |
Heater | no |
Camera Type | Face recognition, License plate recognition, People Count, Retail Intelligence |
Power consumption | 12W |
Blower | no |
Mounting | Ceiling mount, Wall mount |
ONVIF | ONVIF Profile G, ONVIF Profile S, ONVIF Profile T |
Power over Ethernet | IEEE 802.3af |
Protection rating | IP67 |
Supply voltage | 12VDC, PoE |
Operating temperature | -35°C ~ +60°C, @ Humidity 90% or less (non-condensing) |
Vandal proof | no |
EAN/GTIN | 4260229840504 |
Manufacturer order number | 236661 |
