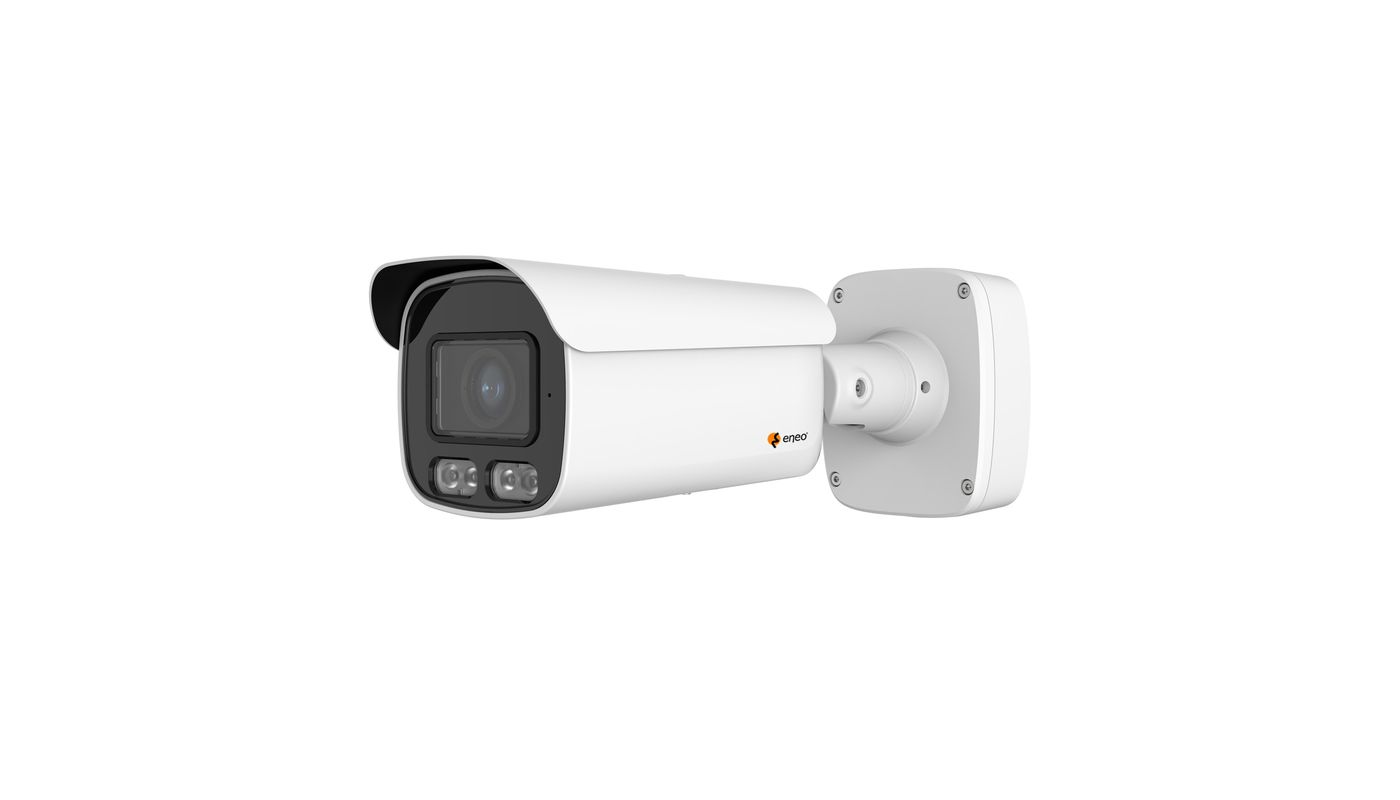

INB-68M2812MJBA

SKU 243990
Network Camera Bullet incl. junction box 3840x2160, Day/Night, WDR, AI 2,8-12mm, IR, WL, 12VDC, PoE, IP67
Data sheet

Specifications

Manufacturer order number
243990
Brand
eneo
EAN/GTIN
4260229840740
Series
eneo IN-Serie

Camera

Camera shape
Bullet
Chip size
1/2,8"
Resolution standard
8 MP
Recording sensor
Chipset NT98529, CMOS, Sony IMX415
Photosensitivity
0.007 Lux bei F1.0
System
True Day&Night
Low Speed Shutter
Yes
Manual Electric Shutter (MES)
1-5~1-20,000sec.
Flickerless function
Yes
Backlight compensation
Yes
Day/night switching
Switchable IR Filter (ICR)
Day/night mode
Yes
White balance
Automatic,Manual

Video

Resolution (extended)
3840x2160 (16:9),2592x1944 (4:3),2592x1520 (16:9),2304x1296 (16:9),1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3),320x240 (4:3)
Picture size
16:9, 4:3
Video Compression
H.264, H.264+, H.265, H.265+, M-JPEG
Data stream types
Triple-Stream(Main/Sub/Mobile)
Image transfer rate max.
30 fps

Lens

Lens Type
Varifocal (motorized)
Focal length
2,8 - 12 mm
MOD (Minimum Object Distance)
1.5 m
Vertical angle of view
56 - 19°
Horizontal angle of view
107 - 34°

Display

Image resolution max.
3840x2160

DORI

Perceiving (25px/m)
63,3 - 254,7 m
Watch (62px/m)
25 - 102,4 m
Detect (125px/m)
12 - 50,4 m
Identify (250px/m)
5,6 - 25,1 m

Functions

Multicast
Yes
Motion detector
Yes
Alarm processing
recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,alarm out,Cloud Upload
Audio support
Yes
Audio
1/1 Line Input and Output, 2 Way Audio
Password
Administrator and User
Internal memory
microSD card slot
Menu languages
English, French, German, Italian, Japanese, Portuguese, Spanish, Turkish
Browser
Edge, Firefox, Google Chrome, MS Internet Explorer 10/11, Safari
Digital Noise Reduction (DNR)
Yes
Privacy Zone
Areas-ON/OFF switchable

Network

Network Protocols
DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP

Interfaces / Inputs/ Outputs

External connections
RJ-45,Alarm in/output,Audio input/output,micro SD card slot 256 GB
Ethernet interface
100Base-TX, 10Base-T
Alarm inputs
1
Control Interfaces
Ethernet

General

Wide Dynamic Range (WDR)
WDR 120dB
Lighting
Infrared
Audio compression
G.711
Zoomfactor (optical)
4

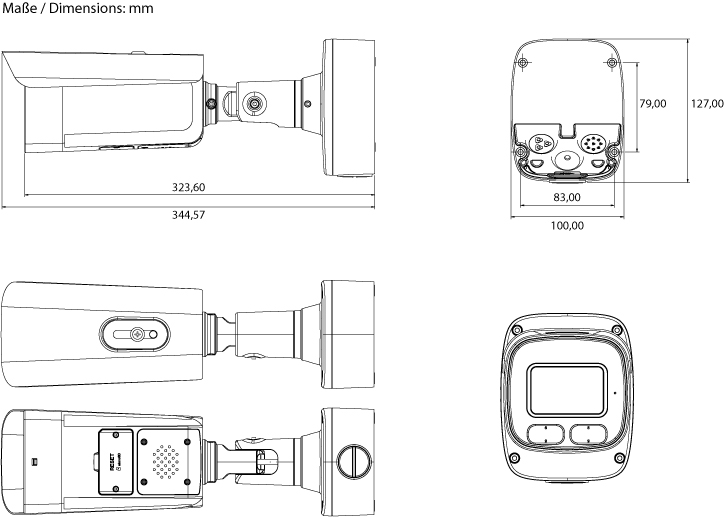

Dimensions (WxHxD) (extended)
135,2x353,8mm
Illumination range
Approx. 35m IR,approx. 30m Warm Light
Color (Housing)
RAL9003,Pantone P 179-1
Housing type
Outside
Housing material
Aluminium
Integrated wall mount
Yes
Camera Type
Face, License plate recognition
Power consumption
12 W
Mounting type
Ceiling, Wall
ONVIF
ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
ESC
1/5 ~ 1/20.000sec.
Protection
IP67
SDK
upon request
Sunshade canopy
Yes
Power supply
12VDC, Poe
Temperature Range (Operating)
-35°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
Text overlay
Switchable on/off

Parts supplied

Scope of delivery
manual,bag of screws

Notes

Remark
"Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands

Additional Productinformation

Special feature

Easy installation thanks to integrated connection box with RJ-45 beech connection board, alternatively 8-pin connection strip for connecting a network cable, 8-pin connection strip for audio, alarm signals and power supply

Possible application examples

Car park surveillance / access roads: The variable focal length range (2,8-12 or 5–50 mm) allows distant objects to be magnified and close-up areas to be covered. The camera should be aligned so that vehicles or number plates are optimally captured.

Perimeter security / site boundaries: A combination of AI analysis functions, IR / white light and a robust housing enables monitoring even in darkness or poor lighting conditions. For very long distances, it may be necessary to combine several cameras.

Entrance areas/access gates: WDR (wide dynamic range) and lighting ensure consistent images in changing light conditions. Glare or direct sunlight should be taken into account.

Monitoring of access roads/passageways: The motorised lens allows adjustment of the field of view and zoom, e.g. for number plate recognition. Stable mounting reduces vibrations.

Commercial outdoor areas (warehouses, hall forecourts): Robust housing and analysis functions allow automatic detection of unauthorised access or movement in defined zones. Specifications for AI detection and range should be checked.

Security monitoring in industrial facilities: Particularly suitable for outdoor areas with harsh environmental conditions (dust, moisture, temperature fluctuations). Image quality may be impaired by highly reflective surfaces, fog or dust – additional lighting may be necessary.

Main Features

  • 1/2.8" Sony STARVIS CMOS sensor, 8 MP/30 fps
  • AI analysis functions including object classification
  • Integrated connection box for quick and clean installation
  • WDR 120 dB, 3D-DNR noise reduction
  • Motorised varifocal lens 2.8–12mm
  • Smart Codec H.265/H.264, multi-streaming
  • Browser-independent (IE, Edge, Safari, Firefox, Chrome)
  • Supports ONVIF profiles S/T/M/G
  • Local storage via micro SD card
  • Supports audio and external alarm input and output
  • NDAA compliance
  • IR and white light LED illumination, IP67
