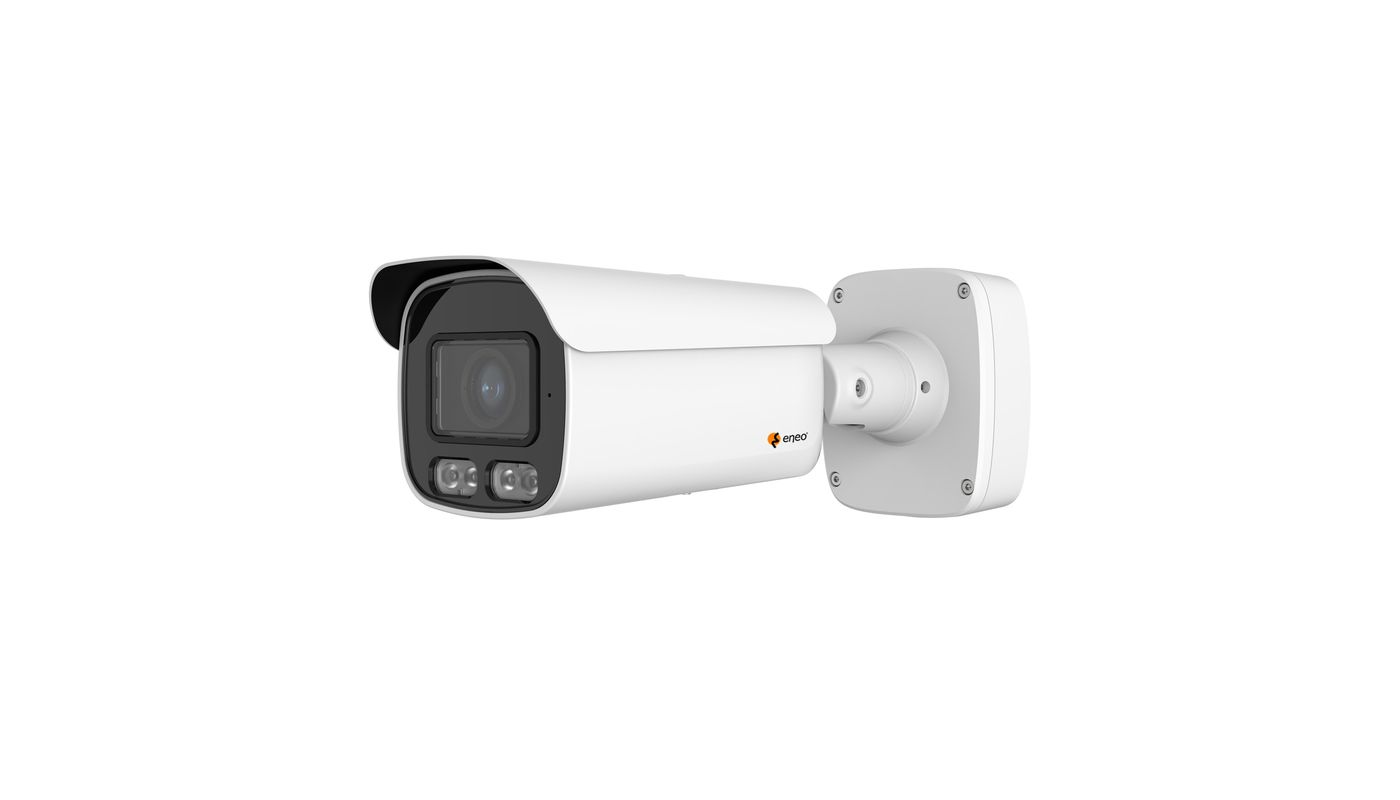

eneo INB-68M0550MJBA

SKU 243991
Network Camera Bullet incl. junction box, 3840x2160, Day/Night, WDR, AI, 5,0-50mm, IR, WL, 12V, PoE, IP67
Data sheet

Specifications

Brand
eneo
EAN/GTIN
4260229840757
Manufacturer order number
243991
Series
eneo IN-Serie

Camera

Backlight compensation
Yes
Camera shape
Bullet
Chip size
1/2,8"
Day/night mode
Yes
Day/night switching
Switchable IR Filter (ICR)
Flickerless function
Yes
Low Speed Shutter
Yes
Manual Electric Shutter (MES)
1-5~1-20,000sec.
Photosensitivity
0,009 Lux bei F1,6
Recording sensor
Chipset NT98529, CMOS, Sony IMX415
Resolution standard
8 MP
System
True Day&Night
White balance
Automatic,Manual

DORI

Detect (125px/m)
34 - 250 m
Identify (250px/m)
17 - 125,5 m
Perceiving (25px/m)
173 - 1256,5 m
Watch (62px/m)
69 - 506,1 m

Lens

Aperture Range (F)
F2.0
Focal length
5 - 50 mm
Horizontal angle of view
49° - 7°
Lens Type
Varifocal (motorized)
MOD (Minimum Object Distance)
1 m
Vertical angle of view
27° - 4°
Zoomfactor (optical)
10

Video

Data stream types
Triple-Stream(Main/Sub/Mobile)
Image transfer rate max.
30 fps
Picture size
16:9, 4:3
Resolution (extended)
3840x2160 (16:9),2592x1944 (4:3),2592x1520 (16:9),2304x1296 (16:9),1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3),320x240 (4:3)
Video Compression
H.264, H.264+, H.265, H.265+, M-JPEG

Display

Image resolution max.
3840x2160

Functions

Alarm processing
recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,alarm out,Cloud Upload,Siren
Analysis
Image rotation for cameras mounted at a 90° angle, Abandoned and Removed Objects (SOD), Attendance (FA), Crowds (CD), Enter Region, Face Attributes (AD), Face Capture (FD), Face Recognition (FR), Heat Map (HM), Intrusion, Intrusion (PID), Leave Region, License plate recognition (LPD), License plate recognition (LPR), Line crossing (LCD), Manipulation (TD), Object Classification Human / Vehicle (PD&VD), Passage count (CC), Queues (QD), Rare Sounds (RSD)
Audio
1/1 Line Input and Output, 2 Way Audio
Audio support
Yes
Browser
Edge, Firefox, Google Chrome, MS Internet Explorer 10/11, Safari
Digital Noise Reduction (DNR)
Yes
Internal memory
microSD card slot
Menu languages
English, French, German, Italian, Japanese, Portuguese, Spanish, Turkish
Motion detector
Yes
Multicast
Yes
Password
Administrator and User
Privacy Zone
Areas-ON/OFF switchable

Network

Network Protocols
DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP
Security
Complicated password, IEEE 802.1X-Authentication (available from firmware version 8.2.4.1), IP address filtering, Password

Interfaces / Inputs/ Outputs

Alarm inputs
1
Control Interfaces
Ethernet
Ethernet interface
100Base-TX, 10Base-T
External connections
RJ-45,Alarm in/output,Audio input/output,micro SD card slot 256 GB

General

Audio compression
G.711
Camera Type
Bullet Camera
Color (Housing)
RAL9003,Pantone P 179-1 / Other colors available upon request

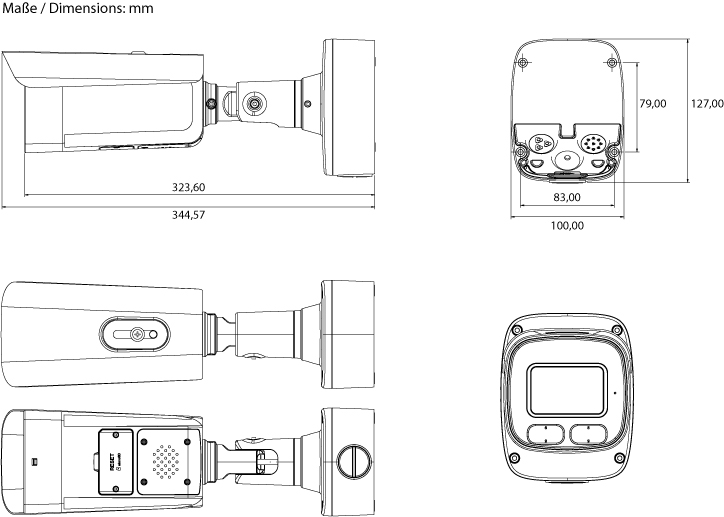

Dimensions (WxHxD) (extended)
127x344.57mm
ESC
1/5 ~ 1/20.000sec.
Housing material
Aluminium
Housing type
Outside
Illumination range
Approx 80m IR,approx 25m Warm Light
Integrated wall mount
Yes
Lighting
Infrared, Warm Light
Mounting type
Ceiling, Wall
ONVIF
ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
Power consumption
12 W
Power over Ethernet
IEEE 802.3af
Power supply
12VDC, Poe
Protection
IP67, NEMA 4X
SDK/API
upon request
Sunshade canopy
Yes
Temperature Range (Operating)
-35°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
Text overlay
Switchable on/off
Weight
1.8 kg
Wide Dynamic Range (WDR)
WDR 120dB

Parts supplied

Scope of delivery
Quick installation guide,drilling template,1x silica gel sachet 16.3g,4x wall plugs with screws,2x Allen keys,3x cable ties for strain relief,4x adhesive foam rubber leveling washers,1x snagless RJ45 boot

Notes

Remark
Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).

Additional Productinformation

Special feature

Easy installation thanks to integrated connection box with RJ-45 beech connection board, alternatively 8-pin connection strip for connecting a network cable, 8-pin connection strip for audio, alarm signals and power supply

Possible application examples

Car park surveillance / access roads: The variable focal length range (5–50 mm) allows distant objects to be magnified and close-up areas to be covered. The camera should be aligned so that vehicles or number plates are optimally captured.

Perimeter security / site boundaries: A combination of AI analysis functions, IR / white light and a robust housing enables monitoring even in darkness or poor lighting conditions. For very long distances, it may be necessary to combine several cameras.

Entrance areas/access gates: WDR (wide dynamic range) and lighting ensure consistent images in changing light conditions. Glare or direct sunlight should be taken into account.

Monitoring of access roads/passageways: The motorised lens allows adjustment of the field of view and zoom, e.g. for number plate recognition. Stable mounting reduces vibrations.

Commercial outdoor areas (warehouses, hall forecourts): Robust housing and analysis functions allow automatic detection of unauthorised access or movement in defined zones. Specifications for AI detection and range should be checked.

Security monitoring in industrial facilities: Particularly suitable for outdoor areas with harsh environmental conditions (dust, moisture, temperature fluctuations). Image quality may be impaired by highly reflective surfaces, fog or dust – additional lighting may be necessary.

Main Features

  • 1/2.8" Sony STARVIS CMOS sensor, 8 MP/30 fps
  • AI analysis functions including object classification
  • Integrated connection box for quick and clean installation
  • WDR 120 dB, 3D-DNR noise reduction
  • Motorised varifocal lens 5.0–50 mm
  • Smart Codec H.265/H.264, multi-streaming
  • Browser-independent (IE, Edge, Safari, Firefox, Chrome)
  • Supports ONVIF profiles S/T/M/G
  • Local storage via micro SD card
  • Supports audio and external alarm input and output
  • NDAA compliance
  • IR and white light LED illumination, IP67
