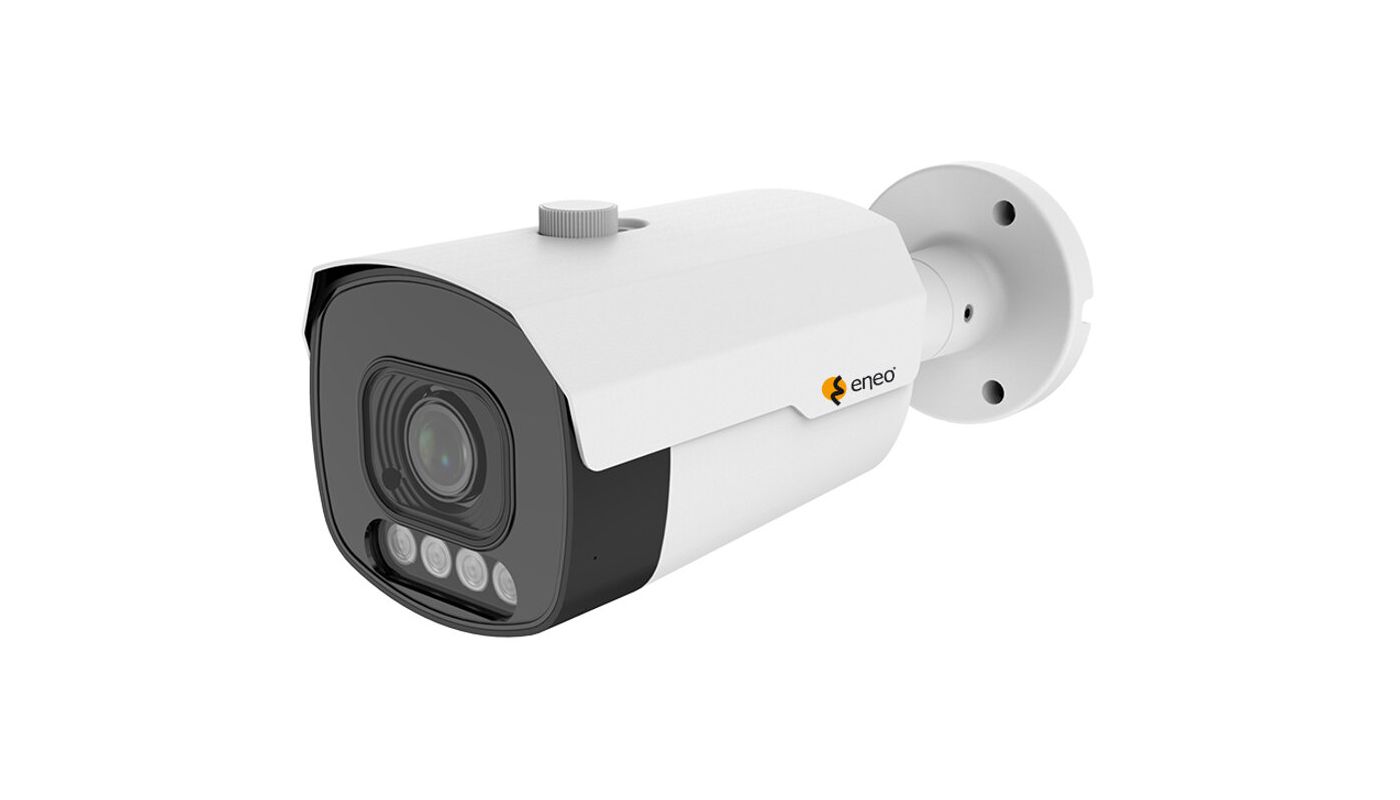

INB-65M2812MFA

Network Camera, Bullet, 2880x1620, Day/Night, WDR, AI 2,8-12mm, IR, 12VDC, PoE, IP67
SKU
233901
Main Features
  • 1/2.7" CMOS sensor,5 MP/30fps
  • AI analysis functions including object classification
  • Colour images in the dark due to integrated white light
  • WDR 120dB, 3D-DNR Noise Reduction
  • Motorized varifocal lens 2.8-12mm
  • Smart Codec H.265/H.264, multi-streaming
  • Browser independent (IE, Edge, Safari, Firefox, Chrome)
  • Supports ONVIF Profile S and Profile T
  • Local storage via Micro SD card
  • Supports audio and external alarm input and output
  • Power supply 12VDC or PoE IEEE 802.3af
  • IR LED illumination, IP67
More Information
Brand eneo
Camera type Bullet
Sensor size 1/2.7"
Resolution Standard 5 Megapixel
System 24h color
Imager CMOS
Day&Night switch ICR
Low Speed Shutter yes
Digital Noise Reduction yes
Backlight Compensation BLC, HLC
Image resolution max. 2880x1620 @ H.265
Wide Dynamic Range (WDR) WDR 120dB
Motion Detector yes
Lens Type Varifocal (motorized)
Image Transmission Rate 30 fps
Iris Control DC
Video compression H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens Type Varifocal (motorized)
llumination Infrared, White light
Zoom Factor 4x
Focal Length 2,8 - 12 mm
Digital Zoom yes
MOD (Mininum Object Distance) 1,5 m
Vertical Angle of View 58,5 - 20,0°
Horizontal Angle of View 112,6 - 35,4°
Detect (25px/m) 62,5 - 260,3 m
Observe (62 px/m) 24,3 - 104,5 m
Recognize (125 px/m) 11,5 - 52,2 m
Identify (250 px/m) 5,2 - 25,6 m
Analysis functions Attribute Detection (AD), Cross Counting (CC), Crowd Density Detection (CD), Face Attendance (FA), Face Detection (FD), Face Recogntion (FR), Heat Map (HM), Human&Vehicle Detection (PD&VD), License Plate Detection (LPD), License Plate Recognition (LPR), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Queue Lenght Detection (QD), Rare Sound Detection (RSD), Stationary Object Detection (SOD)
Audio support yes
Audio 1/1 Line input and output, 2 Way Audio
Internal storage 256GB, microSDHC card, microSDXC card
Remote configuration Browser
Video outputs no
Ethernet interface 100Base-TX, 10Base-T
Supply voltage 12VDC, PoE
Alarm inputs 1
Alarm outputs 1
Serial interfaces Ethernet
Series eneo IN-Series
Dimensions (HxWxD) 86,3x84.7x 240,9mm
Weight 690g
Illumination range approx. 35m IR, approx.30m White Light
Color (housing) Pantone P 179-1, RAL9003
Housing Outdoor
Hosuing material Aluminium, Plastic
Heater no
Camera Type Face recognition, License plate recognition, People Count, Retail Intelligence
Power consumption 10W
Blower no
Mounting Ceiling mount, Wall mount
ONVIF ONVIF Profile G, ONVIF Profile S, ONVIF Profile T
Power over Ethernet IEEE 802.3af
Protection rating IP67
Operating temperature -35°C ~ +60°C, @ Humidity 90% or less (non-condensing)
Vandal proof no
Manufacturer order number 233901
