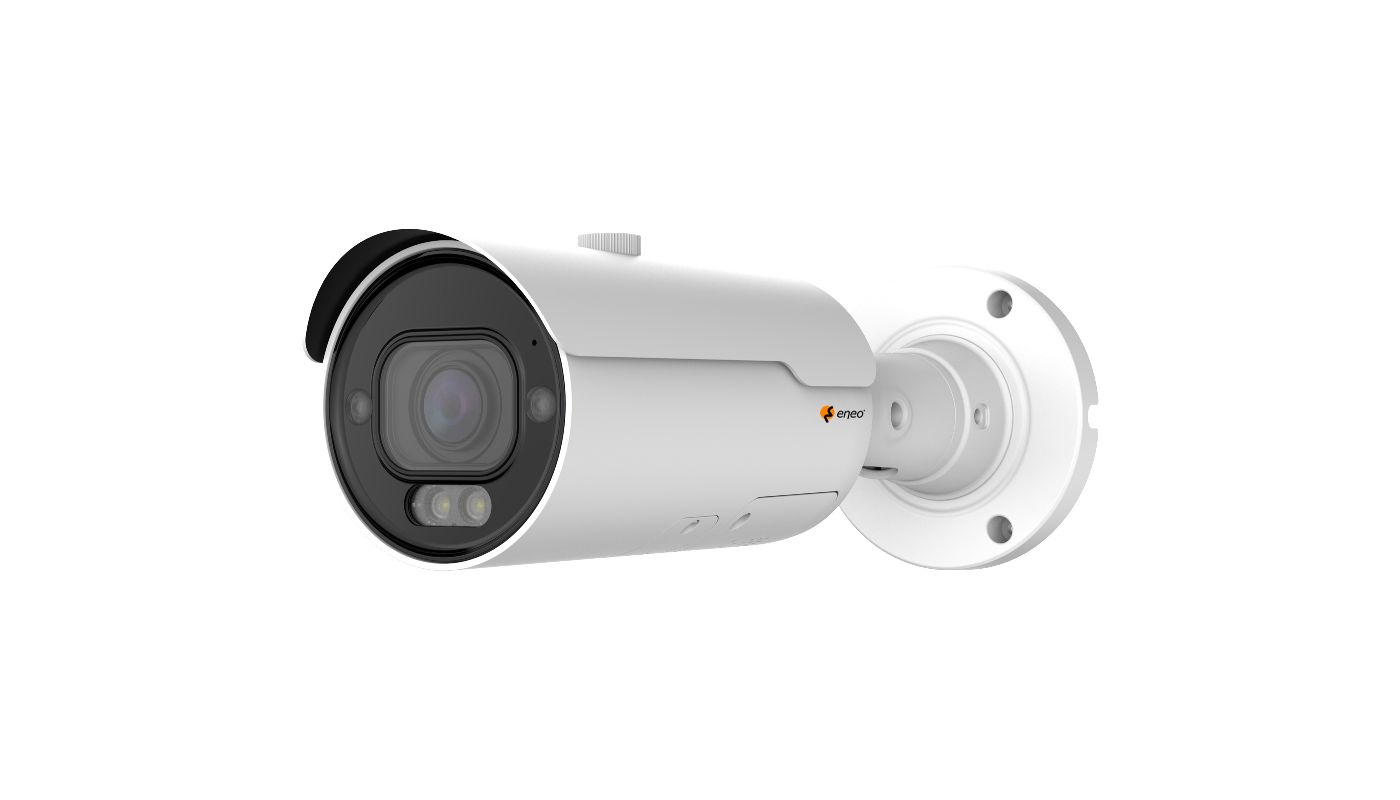

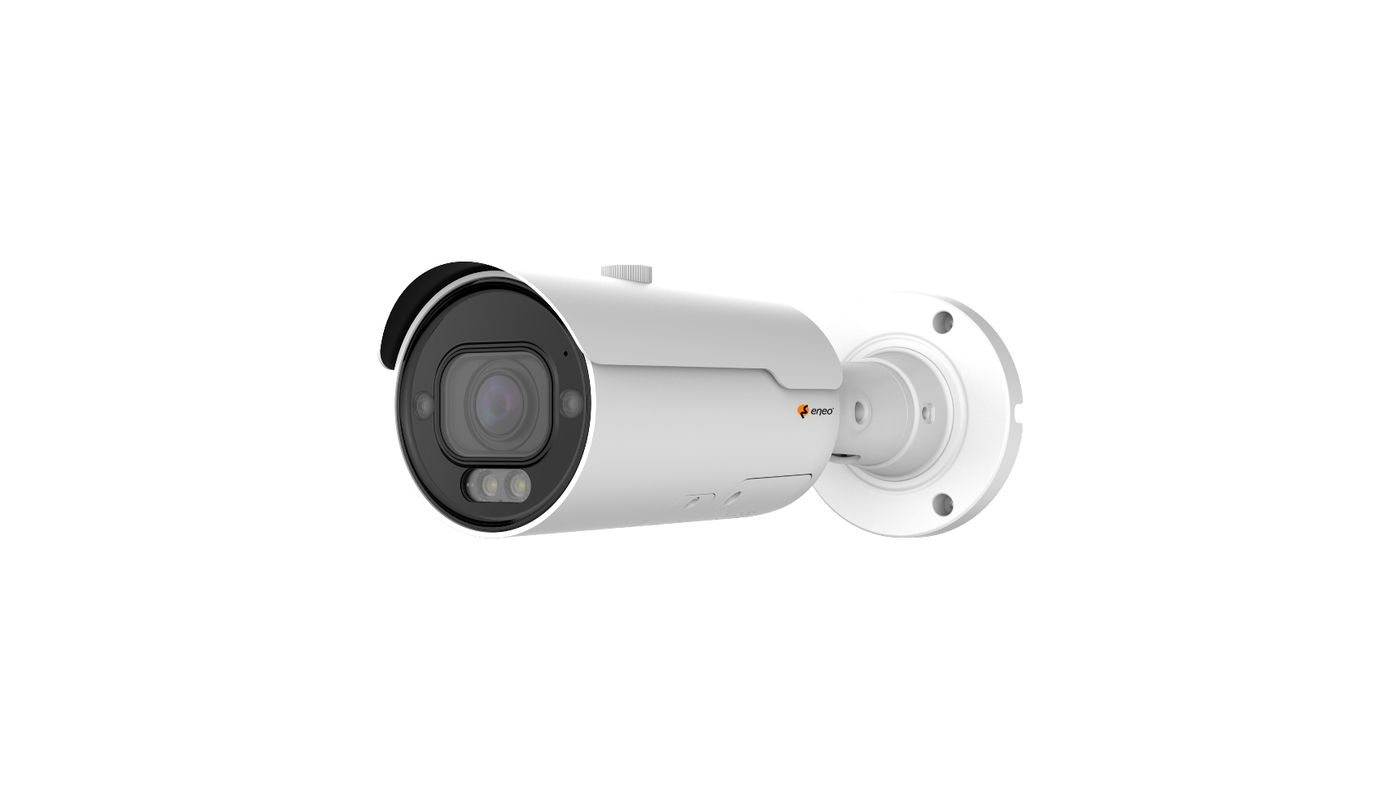

eneo INB-58F0308MLA

SKU 241615
Network Camera Bullet, Ultra Low Light, 3840x2160, Day/Night, WDR, AI, 3-8mm, PoE, 12V, IP67
Data sheet

Specifications

Brand
eneo
EAN/GTIN
4260229840689
Manufacturer order number
241615
Series
eneo IN-Serie

Camera

Backlight compensation
Yes
Camera shape
Bullet
Chip size
1/1,8"
Day/night mode
Yes
Day/night switching
No
Flickerless function
Yes
Low Speed Shutter
Yes
Manual Electric Shutter (MES)
1-5~1-20,000sec.
Photosensitivity
0,0005 Lux bei F1.0
Recording sensor
Chipset AX620A, CMOS, Sensor IMX678
Resolution standard
8 MP
System
24h Color
White balance
Automatic,Manual

DORI

Detect (125px/m)
13,3 - 29,9 m
Identify (250px/m)
6,1 - 14,8 m
Perceiving (25px/m)
71,6 - 150,2 m
Watch (62px/m)
28 - 60,2 m

Lens

Aperture Range (F)
F1,2
Focal length
3 - 8 mm
Horizontal angle of view
105° - 56°
Lens Type
Varifocal
MOD (Minimum Object Distance)
3 m
Vertical angle of view
54° - 32°
Zoomfactor (optical)
2

Video

Data stream types
Triple-Stream(Main/Sub/Mobile)
Image transfer rate max.
30 fps
Picture size
16:9, 4:3
Resolution (extended)
3840x2160 (16:9),2592x1944 (4:3),3072x1728 (16:9),2592x1520 (16:9),2304x1296 (16:9),1920x1080 (16:9),640x480 (VGA),320x240 (QVGA)
Video Compression
H.264, H.264+, H.265, H.265+, M-JPEG

Display

Image resolution max.
3840x2160

Functions

Alarm processing
recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,Red & bule flashing lights,Siren
Analysis
Image rotation for cameras mounted at a 90° angle, Abandoned and Removed Objects (SOD), Attendance (FA), Crowds (CD), Enter Region, Face Attributes (AD), Face Capture (FD), Face Recognition (FR), Heat Map (HM), Intrusion, Intrusion (PID), Leave Region, License plate recognition (LPD), License plate recognition (LPR), Line crossing (LCD), Manipulation (TD), Object Classification Human / Vehicle (PD&VD), Passage count (CC), Queues (QD), Rare Sounds (RSD)
Audio
Built-in microphone, Built-in speaker
Audio support
Yes
Browser
Edge, Firefox, Google Chrome, Safari
Digital Noise Reduction (DNR)
Yes
Internal memory
SDHC Card, SDXC Card
Menu languages
English, French, German, Italian, Portuguese, Russian, Spanish, Turkish
Motion detector
Yes
Multicast
Yes
Password
Administrator and User
Privacy Zone
Areas-ON/OFF switchable

Network

Network Protocols
DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP
Security
Complicated password, IEEE 802.1X-Authentication (available from firmware version 8.2.4.1), IP address filtering, Password

Interfaces / Inputs/ Outputs

Alarm inputs
1
Control Interfaces
Ethernet
Ethernet interface
100Base-T, 10Base-T
External connections
RJ-45,12VDC input (DC socket),connection cable approx. 30cm,micro SD card slot 256 GB

General

Audio compression
G.711
Camera Type
Bullet Camera
Color (Housing)
RAL9003,Pantone P 179-1 / Other colors available upon request
Dimensions (WxHxD) (extended)
199.82 x 128.98 x 90.7mm
ESC
1/5 ~ 1/20.000sec.
Heating
No
Housing material
Aluminium
Housing type
Outside
Illumination range
Approx 30m
Integrated wall mount
Yes
Lighting
White
Mounting type
Ceiling, Wall
ONVIF
ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
Power consumption
6.5 W
Power over Ethernet
IEEE 802.3af
Power supply
12VDC, Poe
Protection
IP67, NEMA 4X
SDK/API
upon request
Sunshade canopy
Yes
Temperature Range (Operating)
-35°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
Text overlay
Switchable on/off
Weight
1.28 kg
Wide Dynamic Range (WDR)
WDR

Parts supplied

Scope of delivery
manual,bag of screws

Notes

Remark
Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).

Additional Productinformation

Intelligent 8MP Bullet Camera for Professional Security Solutions

Maximum security. Intelligent analysis. Impressive image quality – around the clock.

The eneo INB-58F0308MLA is the perfect choice for professional outdoor video surveillance. With 8-megapixel resolution, AI-powered video analytics, and color images in near-total darkness, this IP camera offers the highest level of surveillance security – day and night.

Main Applications – Versatile. Reliable. Future-proof.

Perimeter Protection for Industry & Commerce

Thanks to its high light sensitivity (0.0005 lux), 4K resolution, and WDR technology, the camera monitors even large industrial areas with high precision. Features such as line crossing detection, intrusion detection, and vehicle classification make it the ideal choice for perimeter and access control.

License Plate Recognition for Access Control & Parking

With integrated LPR (License Plate Recognition), the INB-58F0308MLA enables automatic license plate recognition – ideal for company parking lots, residential complexes, or parking garages.

Retail Intelligence for Retailers

Experience modern customer behavior tracking with features such as passage counting, heat maps, queue detection, and object classification (person/vehicle). This allows you to optimize traffic flow, waiting areas, and sales floor efficiently and with data support.

Smart City & Public Safety

The bullet camera also excels in urban surveillance projects: with features such as facial recognition, people counting, and integrated deterrent (light & siren). Perfect for train stations, bus stops, or public squares.

School and Building Security with Deterrent Function

Thanks to its red/blue warning light and siren, the INB-58F0308MLA is ideal for preventing burglary and vandalism – especially at schools, administrative buildings, and company headquarters.

24/7 Logistics & Warehouse Monitoring

With a motorized varifocal lens (3–8 mm), white light LEDs, and AI analysis, the camera delivers crystal-clear images in warehouses, loading docks, or outdoor storage areas – even in complete darkness.

Main Features

  • 1/1.8" Sony CMOS sensor, maximum resolution 8 MP/30fps
  • Very high light sensitivity
  • Colour images in the dark thanks to integrated white light
  • AI analysis functions including object classification
  • WDR and 3D DNR noise reduction
  • Motorised varifocal lens F1.0/3.0-8.0mm
  • Smart Codec H.265 /H.264, multi-streaming
  • Browser-independent (Edge, Safari, Firefox, Chrome)
  • Supports ONVIF profiles S/T/G/M
  • Local storage via micro SD card
  • Supports audio, built-in speaker and microphone
  • Integrated red/blue light deterrent, NDAA compliance
