INB-58F0002M0PA

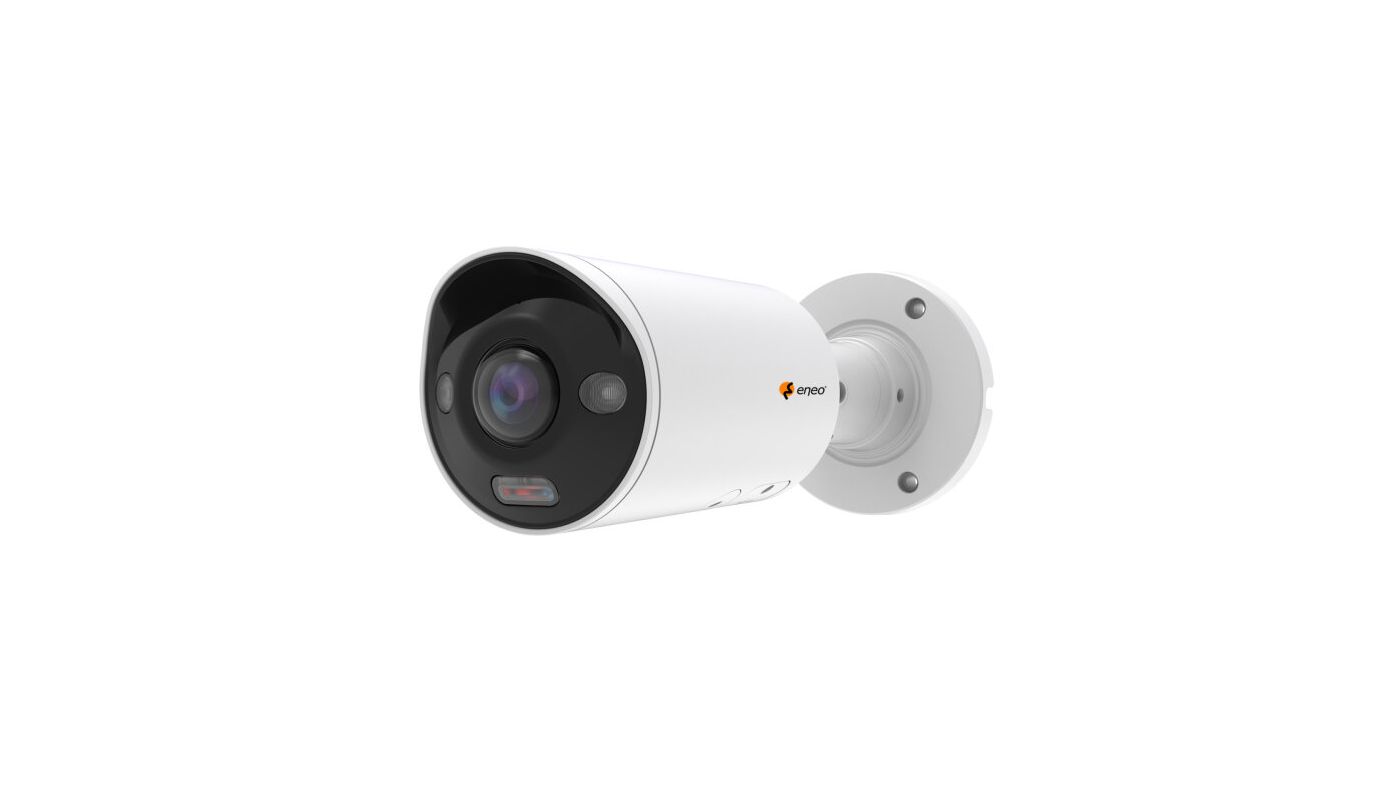

Network Bullet Camera, 180° Panorama, 3840x2160, 2.0mm AI, WDR, PoE, 12V, IP67
SKU
238642
Main Features
- 1/2.8" Sony STARVIS CMOS sensor,
- Maximum resolution 3840x2160 pixels, 20fps
- Panorama ultra wide-angle camera 180° HFoV
- AI analysis functions including object classification
- WDR and 3D-DNR noise reduction
- Lens 2.0mm fixed focal length
- Smart codec H.265/H.264, multi-streaming
- Browser-independent (Edge, Safari, Firefox, Chrome)
- Supports ONVIF profiles S/T/G and audio
- Local storage via micro SD card
- Power supply 12VDC or PoE IEEE 802.3af
- Integrated IR and white light LED illumination, IP67
For Prices and Availability please login.
| Brand | eneo |
|---|---|
| Camera type | Bullet |
| Sensor size | 1/2.8" |
| Resolution Standard | 8 Megapixel |
| Sensitivity | 0,007 Lux bei F1,0 |
| System | True Day&Night |
| Imager | CMOS |
| Day&Night switch | ICR |
| Low Speed Shutter | yes |
| Backlight Compensation | BLC, HLC |
| Image resolution max. | 3640x2160 |
| Wide Dynamic Range (WDR) | WDR |
| Motion Detector | yes |
| Image Transmission Rate | 25 fps |
| Video compression | H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG |
| Lens Type | fixed focal length |
| llumination | Infrared, White light |
| Focal Length | 2 mm |
| Digital Zoom | yes |
| MOD (Mininum Object Distance) | 0,6 m |
| Iris Control | DC |
| Vertical Angle of View | 91° |
| Horizontal Angle of View | 180° |
| Analysis functions | Cross Counting (CC), Heat Map (HM), Human&Vehicle Detection (PD&VD), Line Crossing Detection (LCD), Perimeter Intrusion Detection (PID), Rare Sound Detection (RSD) |
| Audio support | yes |
| Audio | built-in loudspeaker, built-in microphone |
| Internal storage | 256GB, microSDHC card, microSDXC card |
| Remote configuration | Browser |
| Digital Noise Reduction | yes |
| Video outputs | no |
| Ethernet interface | 100Base-TX, 10Base-T |
| Alarm inputs | no |
| Alarm outputs | no |
| Serial interfaces | Ethernet |
| Series | eneo IN-Series |
| Dimensions (HxWxD) | 95x241,3mm |
| Weight | 350g |
| Illumination range | approx. 15m, approx. 25m, Infrared, White Light |
| Color (housing) | Pantone P 179-1, RAL9003 |
| Housing | Outdoor |
| Hosuing material | Aluminium |
| Heater | no |
| Camera Type | Multidirektional Kamera, People Count, Retail Intelligence |
| Power consumption | 12W |
| Blower | no |
| Mounting | Ceiling mount, Wall mount |
| ONVIF | ONVIF Profile G, ONVIF Profile S, ONVIF Profile T |
| Power over Ethernet | IEEE 802.3af |
| Protection rating | IP67 |
| Supply voltage | 12VDC |
| Operating temperature | -35°C ~ +60°C, @ Humidity 90% or less (non-condensing) |
| Vandal proof | no |
| Manufacturer order number | 238642 |
