ISM-52F0021WMB
SKU 245151

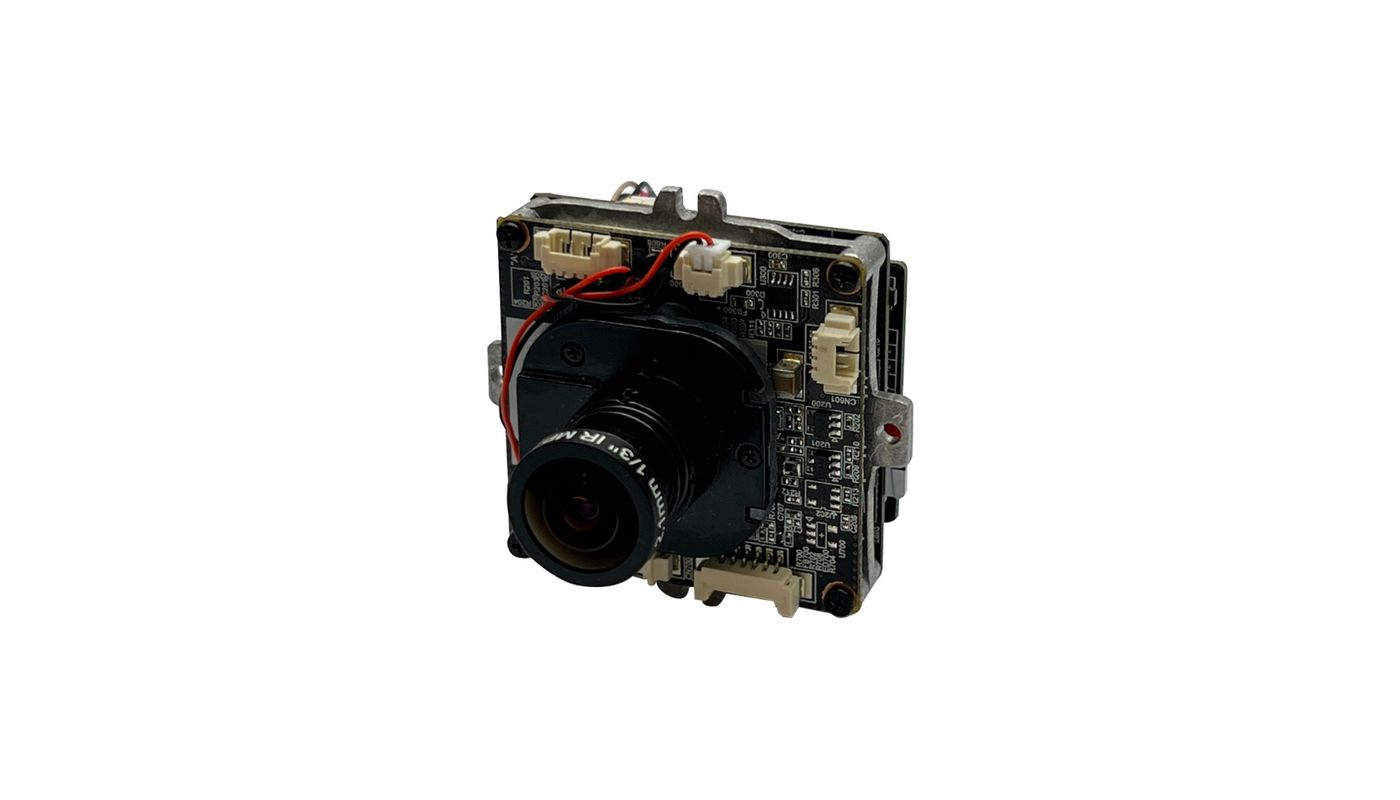

1/2,8" Network Module Camera, 1920x1080, Day&Night,, WDR, 2,1mm, H.265, PoE, 12VDC
For Prices and Availability please login.
new
Specifications
- Manufacturer order number
- 245151
- Brand
- eneo
Camera
- Camera shape
- Printed circuit board
- Chip size
- 1/2,8"
- Resolution standard
- 2 MP
- Recording sensor
- CMOS, Sensor SC500AI
- Photosensitivity
- 0.03 Lux bei F1.8
- System
- True Day&Night
- Low Speed Shutter
- Yes
- Manual Electric Shutter (MES)
- 1~1-20,000sec.
- Flickerless function
- Yes
- Backlight compensation
- Yes
- Day/night switching
- Switchable IR Filter (ICR)
- Day/night mode
- Automatic,Day,Night
- White balance
- Auto,manual
- Signal-to-noise ratio
- 50 dB
Video
- Resolution (extended)
- 1920x1080,1280x720,720x480,640x480,352x288
- Picture size
- 16:9
- Video Compression
- H.264, H.265, MJPEG
- Data stream types
- Quad Stream
- Image transfer rate max.
- 25 fps
Lens
- Lens Type
- Prime lens
- Focal length
- 2,1
- MOD (Minimum Object Distance)
- 0.3 m
- Aperture Range (F)
- F1.8
- Horizontal angle of view
- 138
Display
- Image resolution max.
- 1920x1080
DORI
- Perceiving (25px/m)
- 20,9 m
- Watch (62px/m)
- 7,1 m
- Detect (125px/m)
- 2,8 m
- Identify (250px/m)
- 1,3 m
Functions
- Multicast
- Yes
- Motion detector
- Yes
- Alarm processing
- Recording internal storage (SD card),E-Mail,FTP,HTTP,HTTPS,alarm out
- Audio support
- Yes
- Audio
- 2 Way Audio
- Password
- Administrator and User
- Internal memory
- microSD card slot
- Menu languages
- Chinese, English, French, German, Japanese, Korean, Russian
- Browser
- Firefox, Google Chrome, MS Internet Explorer 10/11, Safari
- Digital Noise Reduction (DNR)
- Yes
- Privacy Zone
- 4 Programmable Zone
Network
- Network Protocols
- DHCP, DNA, DVRNS, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, RTCP, RTP, RTSP, SMTP, SSL, TCP, UDP, Zeroconf
Interfaces / Inputs/ Outputs
- External connections
- Alarm output,Alarm input,Audio input/output,RJ-45,12VDC input (DC plug)
- Alarm inputs
- 1
- Control Interfaces
- Ethernet
General
- Wide Dynamic Range (WDR)
- TWDR 120dB
- Lighting
- no
- Dimensions (WxHxD) (extended)
- 50x50x50mm
- Housing type
- without housing
- Camera Type
- Board Camera
- Mounting type
- Built-in module
- ONVIF
- ONVIF Profile S, ONVIF Profile T
- Power over Ethernet
- IEEE 802.3af
- ESC
- 1~1/20.000Sek.
- SDK
- upon request
- Power supply
- 12VDC, Poe
- Temperature Range (Operating)
- 0°C ~ +40°C
- Text overlay
- Switchable on/off
- Vandalism-resistant
- No
Parts supplied
- Scope of delivery
- manual,Connection cable set
Notes
- Remark
- NDAA compliance under Section 889
Main Features
- 1/2,8" 2.0 MP CMOS-Sensor
- Resolution max. 1920x1080 (Full HD)
- Board Camera 50x50x50mm
- Quad Streaming (H.265, H.264, MJPEG)
- True Day & Night (TDN)
- Noise Reduction (2D-/3D-DNR)
- WDR 120dB, Smart BLC
- Slot for Micro SD memory card
- ONVIF conformance, PoE IEEE802.af, Cross Web-Browsing
- Audio-, Alarm- In- and Outputs
- Privacy zones, password protection, Cross Web-Browsing
- NDAA compliant
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manual for this product (german)
-

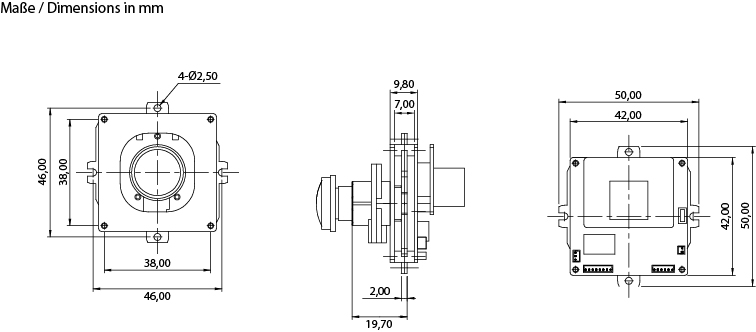

Technical Drawing
-
