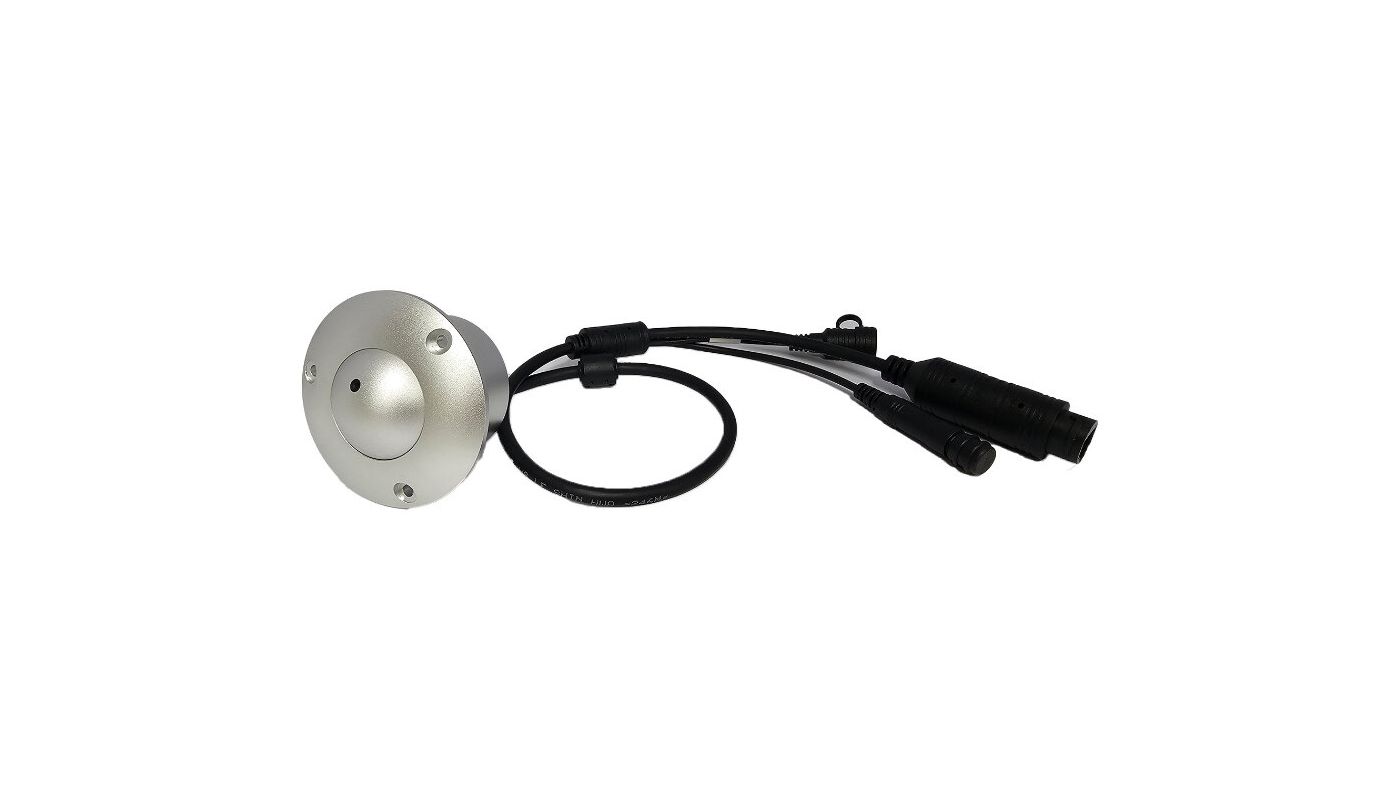

ISM-42F0037MEB
SKU 239237
Specifications
- Manufacturer order number
- 239237
- Brand
- eneo
- Series
- eneo ISM-Serie
Camera
- Camera shape
- Minsters, Module, Printed circuit board
- Chip size
- 1/2,8"
- Resolution standard
- 2 MP
- Recording sensor
- CMOS
- System
- Electronic Day&Night
- Day/night switching
- Electronic
- Day/night mode
- Automatic,Day,Night
- White balance
- Automatic,Manual
Video
- Resolution (extended)
- 1920x1080 (16:9),1280x720 (16:9),960x540 (16:9),800x600 (4:3),640x480 (4:3),320x240 (4:3)
- Video Compression
- H.264, MJPEG
- Data stream types
- 2x H.264,1x H.264 oder MJPEG simultan
- Image transfer rate max.
- 30 fps
Lens
- Lens Type
- Prime lens
- Focal length
- 3,7 mm
- MOD (Minimum Object Distance)
- 0.6 m
- Horizontal angle of view
- 69,38°
Display
- Image resolution max.
- 1920x1080
DORI
- Perceiving (25px/m)
- 57,8 m
- Watch (62px/m)
- 23,1 m
- Detect (125px/m)
- 11,1 m
- Identify (250px/m)
- 5,4 m
Functions
- Password
- Administrator and User
- Internal memory
- no
- Menu languages
- English, German, Japanese, Korean
- Browser
- Edge, Firefox, Google Chrome, Opera
- Digital Noise Reduction (DNR)
- Yes
Interfaces / Inputs/ Outputs
- External connections
- RJ-45,12VDC power input,connection cable approx.15cm
- Alarm inputs
- 0
General
- Wide Dynamic Range (WDR)
- D-WDR
- Dimensions (WxHxD) (extended)
- 46,5x64,5x43,0
- Housing type
- Inside
- Housing material
- Metal
- Heating
- No
- Camera Type
- Board Camera
- Mounting type
- Ceiling installation
- ONVIF
- ONVIF Profile S
- Power over Ethernet
- IEEE 802.3af
- Power supply
- 12VDC, Poe
- Temperature Range (Operating)
- -20°C ~ +50°C
- Text overlay
- available
Parts supplied
- Scope of delivery
- manual,bag of screws
Notes
- Remark
- This model is also available with a resolution of 4/5MP on request.
Additional Productinformation
Kleine und kompakte IP-Video-Sicherheitskameras sind vielseitig einsetzbar und können in verschiedenen Umgebungen zur Überwachung und Sicherheit genutzt werden.
Aufgrund Ihrer kompakten Baugröße können diese Kameras überall dort eingesetzt werden, wo nur geringer Platz zur Verfügung steht oder eine möglichst diskrete Überwachung stattfinden soll.
Hier sind einige mögliche Anwendungsbereiche:
Industrielle Überwachung von Maschinen und Produktionsprozessen
Abwasser Kanalüberwachung
Platzsparende Überwachung von Geschäftsräumen und oder Privathaushalten
Einsatz in Mobilen Anwendungen wie z. B. Fahrzeugen, LKW´s, Busse & Bahnen
Kundenspezifische Anpassungen für spezielle Anwendungen möglich
Main Features
- 1/2.8" Sony STARVIS CMOS image sensor
- Resolution max. 1920x1080 (Full HD)
- Video Compression Format: H.264/MJPEG
- Motion Detection, Low Speed Shutter
- Backlight compensation 3DNR and D-WDR
- Supports privacy zones
- Lens 3.7mm (further lenses upon request)
- Power Supply 12VDC (1.8W) or PoE (IEEE802.3af)
- Connection cable (RJ45) for PoE and power supply
- Operation Temperature -20°C - +50°C
- Supports ONVIF Profile S
