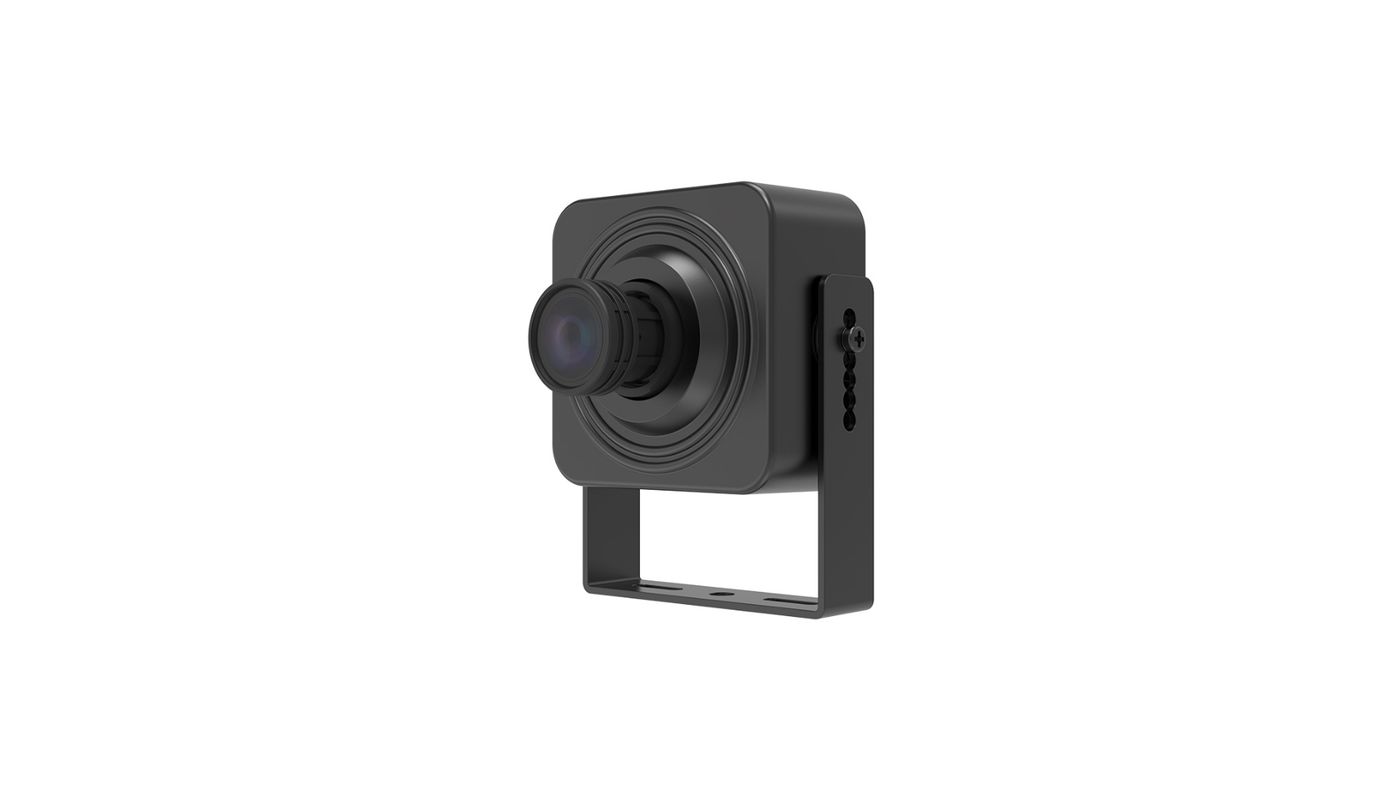

INM-45F0036MMA

SKU 241589
Mini Network Camera, 2880x1620, TDay/Night, WDR, AI, 3,6mm, 3D DNR, 12VDC, PoE
Data sheet

Specifications

Manufacturer order number
241589
Brand
eneo
EAN/GTIN
4260229840696
Series
eneo IN-Serie

Camera

Camera shape
Module
Chip size
1/2,7"
Resolution standard
5 MP
Recording sensor
CMOS, Sensor SC500AI
Photosensitivity
0,004 Lux bei F1,6
System
Electronic Day&Night
Manual Electric Shutter (MES)
1-5~1-20,000sec.
Flickerless function
Yes
Backlight compensation
Yes
Day/night switching
Electronic
Day/night mode
Automatic,Day,Night,Image,Time
White balance
Automatic,Manual
Signal-to-noise ratio
39 dB

Video

Resolution (extended)
2880x1620 (16:9),2560x1440 (16:9),2304x1296 (16:9),1920x1080 (16:9),1280x720 (16:9),640x480 (4:3),320x240 (4:3)
Picture size
16:9, 4:3, VerticalView
Video Compression
H.264, H.264+, H.265, H.265+, M-JPEG
Data stream types
Triple-Stream(Main/Sub/Mobile)
Image transfer rate max.
30 fps

Lens

Lens Type
Prime lens
Focal length
3,6 mm
MOD (Minimum Object Distance)
2 m
Aperture Range (F)
F1.6
Vertical angle of view
46°
Horizontal angle of view
91°

Display

Image resolution max.
2880x1620

DORI

Perceiving (25px/m)
64 m
Watch (62px/m)
25,3 m
Detect (125px/m)
12 m
Identify (250px/m)
5,6 m

Functions

Multicast
Yes
Motion detector
Yes
Alarm processing
FTP,E-Mail,Cloud Upload
Audio support
Yes
Audio
2 Way Audio
Password
Administrator and User
Internal memory
no
Menu languages
English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
Browser
Edge, Firefox, Google Chrome, Safari
Digital Noise Reduction (DNR)
Yes
Privacy Zone
Areas-ON/OFF switchable

Network

Network Protocols
DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP

Interfaces / Inputs/ Outputs

Ethernet interface
100Base-TX, 10Base-T
Control Interfaces
Ethernet

General

Wide Dynamic Range (WDR)
WDR 120dB
Lighting
no
Audio compression
G.711

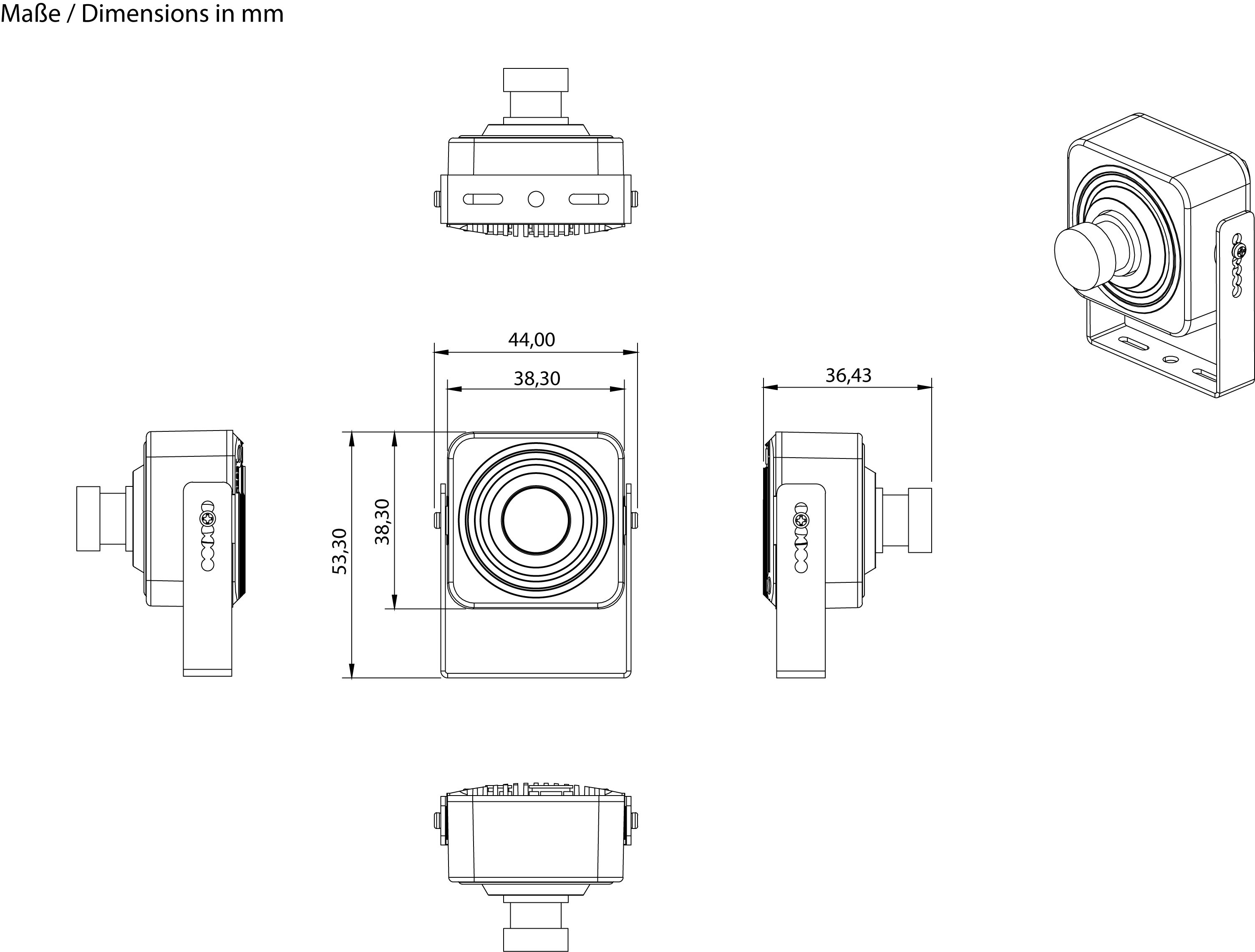

Dimensions (WxHxD) (extended)
44,0x36,4x53,3mm
Color (Housing)
black
Housing type
Inside
Housing material
Metal
Integrated wall mount
Yes
Camera Type
Board Camera
Power consumption
3.62 W
Mounting type
Built-in module
ONVIF
ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
ESC
1/5 ~ 1/20.000sec.
SDK
on request
Power supply
12VDC, Poe
Temperature Range (Operating)
-35°C ~ +60°C
Text overlay
Switchable on/off

Parts supplied

Scope of delivery
bag of screws,manual

Additional Productinformation

Compact Intelligence for Professional Video Surveillance

The INM-45F0036MMA is a powerful mini network camera for professional indoor applications. Featuring state-of-the-art AI technology, 5-megapixel resolution, and a wide range of functions, it offers maximum performance in a compact form factor. Ideal for any location requiring discreet yet powerful surveillance.

Applications for the INM-45F0036MMA

Discreet Indoor Surveillance: Whether in retail stores, banks, museums, or public buildings, its compact design allows for seamless integration into existing environments. The 3.6mm fixed focal length lens delivers clear Full HD images with a 91° horizontal viewing angle – even in challenging lighting conditions thanks to WDR (120dB) and 3D noise reduction.

Access and area monitoring with AI: The integrated AI analysis functions such as facial recognition, line crossing, object classification (human/vehicle) or intruder detection enable precise evaluation of security-relevant events – ideal for entrance areas, security zones or sensitive spaces.

Efficient Visitor and People Management: With features like people counting, queue detection, and crowd detection, the camera supports the management of visitor flows – for example, in shopping centers, transportation hubs, or event venues.

Early Detection of Unusual Events: The camera detects abandoned or removed objects as well as unusual sounds. This makes it particularly suitable for security-critical indoor areas such as airports, public facilities, or educational institutions.

Easy Integration and Flexible Connectivity: The INM-45F0036MMA is ONVIF-compliant (Profiles S/G/T/M), supports PoE power supply, and can be configured independently of the browser used (Edge, Firefox, Chrome, Safari). Triple streaming and modern compression methods (H.265/H.264/MJPEG) ensure efficient data transmission.

Reliability even in extreme temperatures: Thanks to its extended operating temperature range of -35°C to 60°C, the camera operates reliably even under challenging environmental conditions – such as in server rooms or unheated indoor areas.

Facial- and license plate recognition: The facial recognition and license plate recognition functions are only available with an inserted SD card or in conjunction with an eneo IN series recorder. To ensure an optimal user experience, we recommend using only components from the same brand in a system. eneo cannot guarantee functionality if multiple brands are used together. If combined use is necessary, we offer a paid compatibility check (for more information, see item number 229235 at VIDEOR).

Main Features

  • 1/2.7" CMOS sensor, maximum resolution 5 MP/30fps
  • AI analysis functions including object classification
  • WDR 120dB, 3D DNR noise reduction
  • Lens with fixed focal length 3.6mm (HFoV 91°)
  • Smart codec H.265/H.264, multi-streaming
  • Browser-independent (IE, Edge, Safari, Firefox, Chrome)
  • Supports ONVIF profiles S/G/T/M
  • Multilingual menu navigation (OSD)
  • Supports audio
  • 12VDC or PoE power supply
  • NDAA compliance
  • Very compact design
