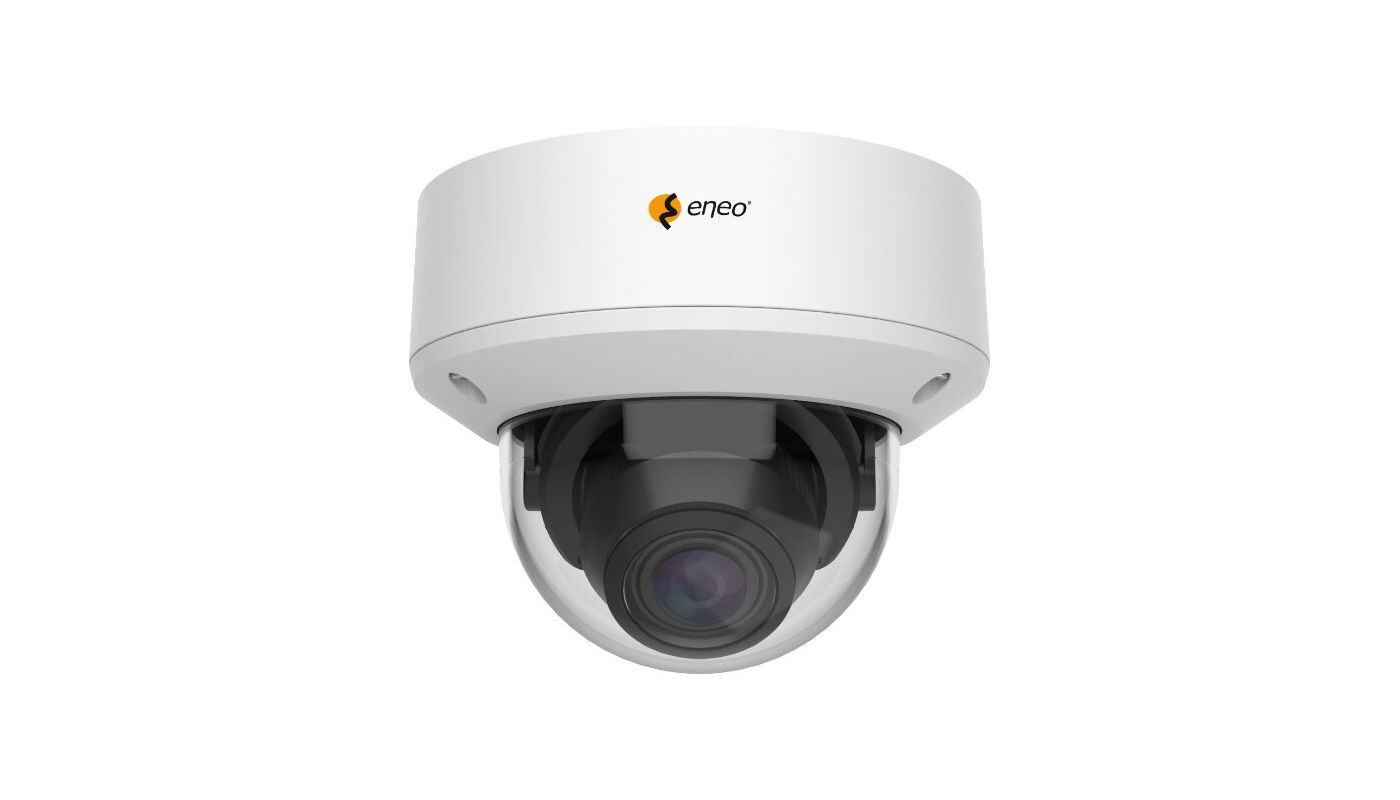

eneo IND-62M2812M0A

Manufacturer order number

233819

Brand

eneo

EAN/GTIN

4260229840177

Series

eneo IN-Serie

Camera

Camera shape

Minsters

Chip size

1/2,8"

Resolution standard

2 MP

Recording sensor

CMOS, Sony IMX307

Photosensitivity

0,002 Lux bei F1,6

System

True Day&Night

Low Speed Shutter

Yes

Manual Electric Shutter (MES)

1-5~1-20,000sec.

Flickerless function

Yes

Backlight compensation

Yes

Day/night switching

Switchable IR Filter (ICR)

Day/night mode

Automatic,Day,Night,Image,Time

White balance

Automatic,Manual

Signal-to-noise ratio

36 dB

Video

Resolution (extended)

1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3),320x240 (4:3)

Picture size

16:9, 4:3

Video Compression

H.264, H.264+, H.265, H.265+, M-JPEG

Data stream types

Triple-Stream(Main/Sub/Mobile)

Image transfer rate max.

60 fps

Lens

Lens Type

Varifocal (motorized)

Focal length

2,8 - 12 mm

MOD (Minimum Object Distance)

1.2 m

Aperture Range (F)

F1.6

Vertical angle of view

52 - 18°

Horizontal angle of view

101 - 33°

Zoomfactor (optical)

4

Display

Image resolution max.

1920x1080

DORI

Perceiving (25px/m)

34,1 - 130,8 m

Watch (62px/m)

13,4 - 52,7 m

Detect (125px/m)

6,3 - 26 m

Identify (250px/m)

3,1 - 13 m

Functions

Multicast

Yes

Motion detector

Yes

Analysis

Abandoned and Removed Objects (SOD), Attendance (FA), Crowds (CD), Enter Region, Face Attributes (AD), Face Capture (FD), Face Recognition (FR), Heat Map (HM), Intrusion, Intrusion (PID), Leave Region, License plate recognition (LPD), License plate recognition (LPR), Line crossing (LCD), Manipulation (TD), Object Classification Human / Vehicle (PD&VD), Passage count (CC), Queues (QD), Rare Sounds (RSD)

Alarm processing

recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,alarm out,Cloud Upload

Turning range

350 °

Vertical tilt range

0~ +75°

Audio support

Yes

Audio

2 Way Audio

Password

Administrator and User

Internal memory

microSD card slot

Menu languages

English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish

Browser

Edge, Firefox, Google Chrome, Safari

Digital Noise Reduction (DNR)

Yes

Privacy Zone

Areas-ON/OFF switchable

Network

Network Protocols

DDNS, DHCP, DNA, FTP, HTTP, HTTPS, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP

Interfaces / Inputs/ Outputs

External connections

RJ-45,Alarm in/output,Audio input/output,12VDC input (DC plug),connection cable approx.45cm,micro SD card slot 256 GB

Ethernet interface

100Base-TX, 10Base-T

Alarm inputs

1

Control Interfaces

Ethernet

General

Wide Dynamic Range (WDR)

D-WDR

Lighting

Infrared

Audio compression

G.711

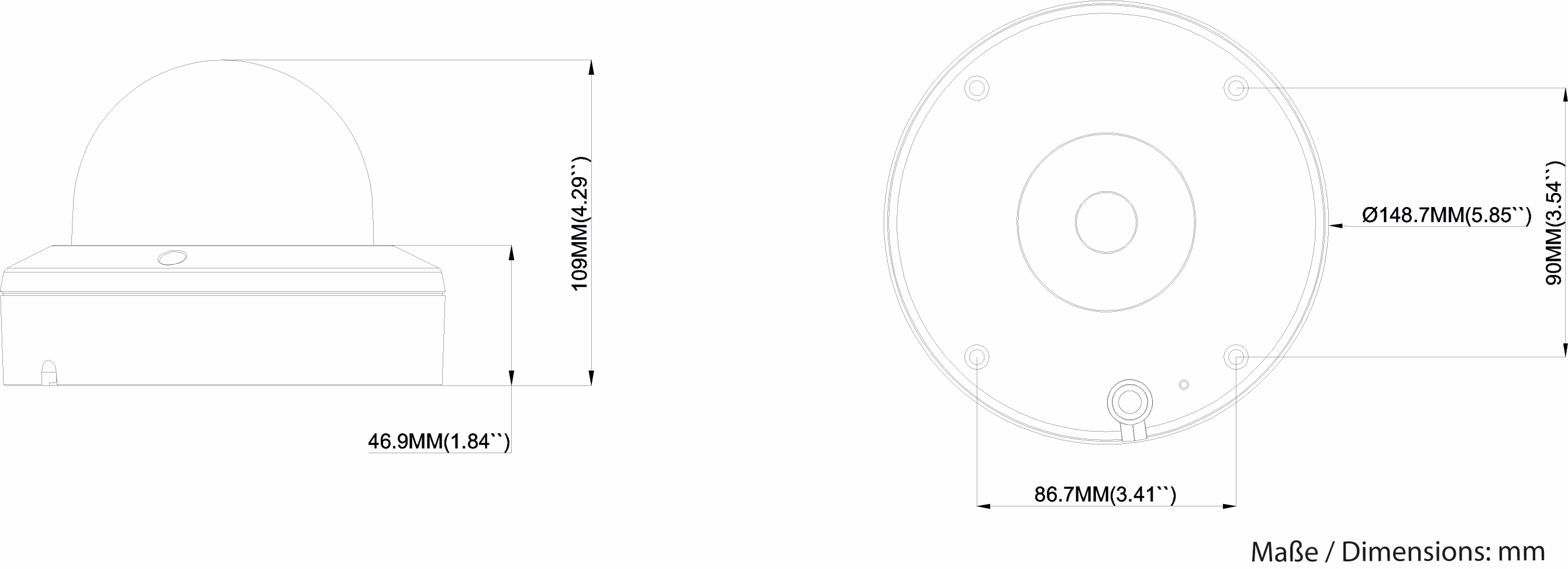

Dimensions (WxHxD) (extended)

109x148,7mm

Weight

0.95 kg

Illumination range

Approx. 30 m

Color (Housing)

RAL9003,Pantone P 179-1 / Other colors available upon request

Color (dome)

clear

Housing type

Outside

Housing material

Aluminium

Heating

No

Camera Type

Domecamera

Power consumption

7 W

Mounting type

Ceiling, Wall

ONVIF

ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T

Power over Ethernet

IEEE 802.3af

ESC

1/5 ~ 1/20.000sec.

Protection

IP67, NEMA 4X

SDK

upon request

Power supply

12VDC, Poe

Temperature Range (Operating)

-35°C ~ +55°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)

Text overlay

Switchable on/off

Vandalism-resistant

Yes

Certifications

IK10

Parts supplied

Scope of delivery

Anschluss Quick installation guide,drilling template,4 wall plugs with screws,1 Torx wrench,waterproof cover for RJ45 connector

Notes

Remark

Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).
