IND-58F0002MTDA

SKU 238644

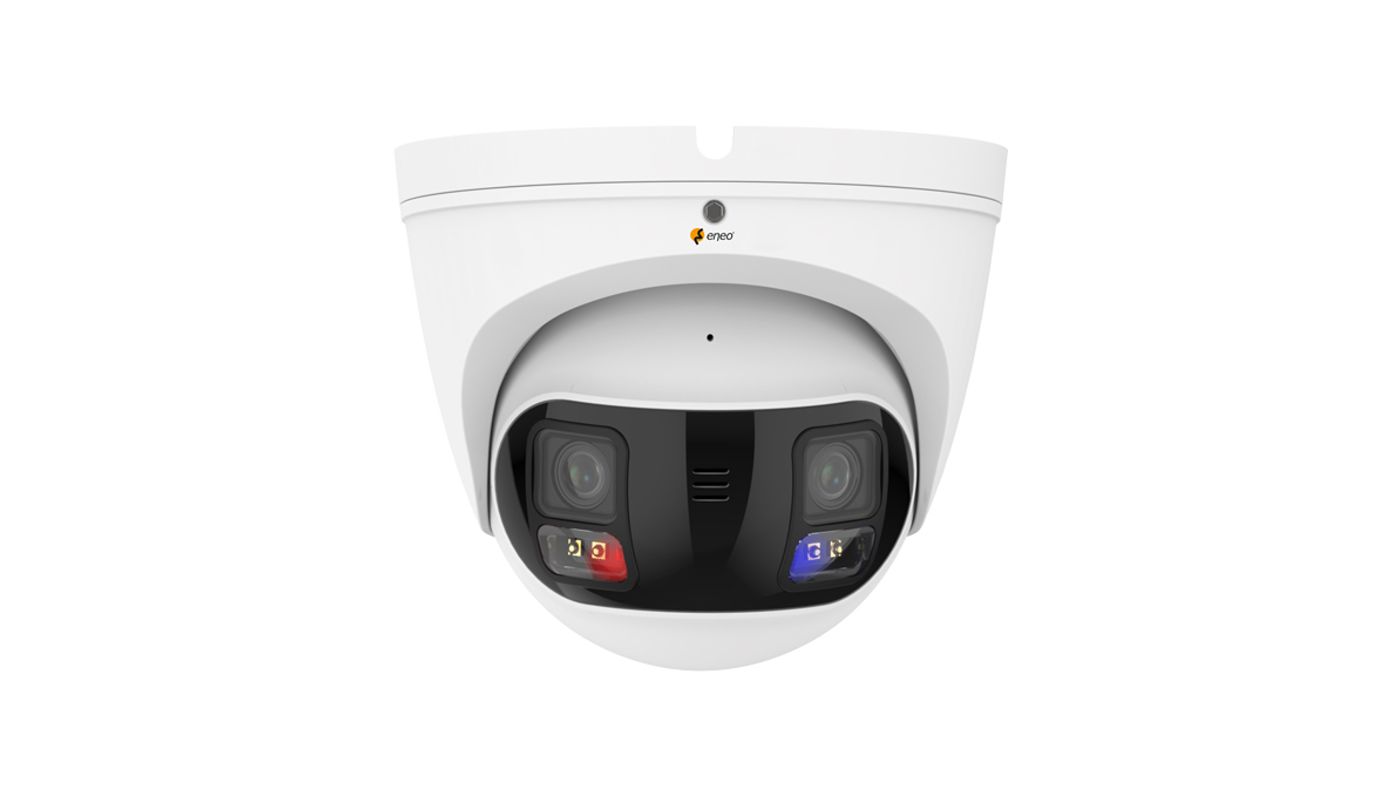

Network Camera Turret, Panorama 180°, 2x Sensor, Lens 2.8mm, max. 3840x2160, AI, DWDR, IR, WL, PoE, 12VDC, IP67
Data sheet

Specifications

Manufacturer order number
238644
Brand
eneo
EAN/GTIN
4260229840726
Series
eneo IN-Serie

Camera

Camera shape
Minsters
Chip size
1/2,7"
Resolution standard
8 MP
Recording sensor
CMOS
Photosensitivity
0,001 Lux bei F1,6
System
24h Color, True Day&Night
Manual Electric Shutter (MES)
1-5~1-20,000sec.
Flickerless function
Yes
Backlight compensation
Yes
Day/night switching
Electronic
Day/night mode
Day,Night,Automatic,Time
White balance
Automatic,Manual

Video

Resolution (extended)
5120x1440,4608x1296,4096x1152,3840x1080,3072x864,1536x432,1024x288
Picture size
32:9
Video Compression
H.264, H.264+, H.265, H.265+, M-JPEG
Data stream types
Dual Streaming
Image transfer rate max.
15 fps

Lens

Lens Type
Prime lens
Focal length
2,8 mm
Zoom Factor (Digital)
0
MOD (Minimum Object Distance)
2 m
Horizontal angle of view
180°

Display

Image resolution max.
5120x1440

DORI

Perceiving (25px/m)
60,1 m
Watch (62px/m)
23,8 m
Detect (125px/m)
11,7 m
Identify (250px/m)
5,5 m

Functions

Multicast
Yes
Motion detector
Yes
Alarm processing
recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,Red & bule flashing lights,Siren,Cloud Upload
Audio support
Yes
Audio
2 Way Audio, Built-in microphone, Built-in speaker
Password
Administrator and User
Internal memory
microSD card slot
Menu languages
English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
Browser
Edge, Firefox, Google Chrome, Safari
Digital Noise Reduction (DNR)
Yes
Privacy Zone
Areas-ON/OFF switchable

Network

Network Protocols
DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, IPv4, IPv6, NTP, PPPoE, RTP, RTSP, SMTP, TCP-IP, UDP, UPnP

Interfaces / Inputs/ Outputs

External connections
RJ-45,12VDC input (DC plug),connection cable approx.30cm,micro SD card slot 256 GB
Alarm inputs
0
Control Interfaces
Ethernet

General

Wide Dynamic Range (WDR)
D-WDR
Lighting
Infrared, White
Dimensions (WxHxD) (extended)
112,4x135mm
Illumination range
Approx. 30 m , Approx. 15 m Warm light
Color (Housing)
RAL9003,Pantone P 179-1
Housing type
Outside
Housing material
Aluminium
Heating
No
Camera Type
Multi-sensor camera
Mounting type
Ceiling, Wall
ONVIF
ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
ESC
1/5 ~ 1/20.000sec.
Protection
IP67
SDK
upon request
Power supply
12VDC, Poe
Temperature Range (Operating)
-30°C ~ +60°C,@ Luftfeuchtigkeit 90% oder weniger (nicht kondensierend)
Text overlay
Switchable on/off

Parts supplied

Scope of delivery
manual,bag of screws

Notes

Remark
Face and license plate recognition require an SD card or an eneo IN recorder. For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).

Main Features

  • Multisensor 2x 1/2.7’ CMOS sensor, panorama
  • Maximum resolution 5120x1440 pixels each, 15fps
  • Panorama ultra wide-angle camera 180° HFoV, 32:9
  • AI analysis functions including object classification
  • WDR, BLC, HLC and 3D-DNR noise reduction
  • Lenses with 2.8mm fixed focal length
  • Smart Codec H.265/H.264, dual streaming
  • Browser-independent (Edge, Safari, Firefox, Chrome)
  • Supports ONVIF profiles S/T/G/M and audio
  • Local storage via micro SD card
  • NDAA compliance
  • Integrated IR and white light LED illumination, IP67
