eneo ISM-42F0037MMB

SKU 243236

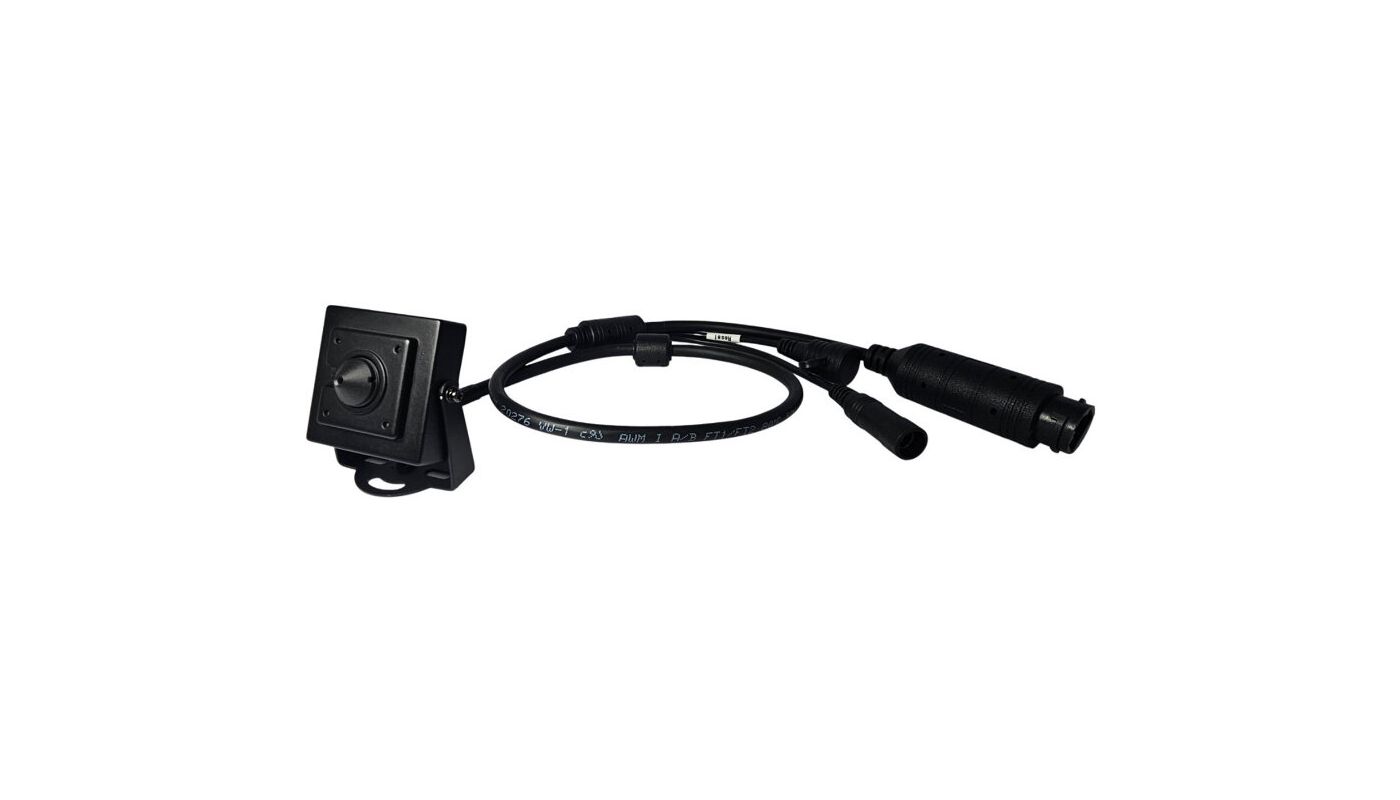

1/2,8" Mini Network Modul Camera, 1920x1080, Day&Night, 3DNR, 3,7mm, Pinhole, 12VDC, PoE, Indoor
Data sheet

Specifications

Brand
eneo
EAN/GTIN
4260229841495
Manufacturer order number
243236
Series
eneo ISM-Serie

Camera

Backlight compensation
Yes
Camera shape
Module, Printed circuit board
Chip size
1/2,8"
Day/night mode
Automatic,Day,Night,Time
Day/night switching
Electronic
Low Speed Shutter
Yes
Recording sensor
CMOS
Resolution standard
2 MP
System
Electronic Day&Night
White balance
Automatic,Manual

DORI

Detect (125px/m)
11,1 m
Identify (250px/m)
5,4 m
Perceiving (25px/m)
57,5 m
Watch (62px/m)
23 m

Lens

Focal length
3,7 mm
Horizontal angle of view
69,38°
Iris Control
No
Lens Type
Prime lens
MOD (Minimum Object Distance)
0.3 m
Vertical angle of view
36,87°

Video

Data stream types
2x H.264,1x H.264 oder MJPEG simultan
Image transfer rate max.
30 fps
Resolution (extended)
1920x1080 (16:9),1280x720 (16:9),960x540 (16:9),640x480 (4:3),320x240 (4:3)
Video Compression
H.264, M-JPEG

Display

Image resolution max.
1920x1080

Functions

Analysis
Motion Detection
Audio support
No
Browser
Edge, Firefox, Google Chrome, Opera
Digital Noise Reduction (DNR)
Yes
Internal memory
microSD card slot
Menu languages
English, German, Japanese, Korean
Motion detector
Yes
Password
Administrator and User

Interfaces / Inputs/ Outputs

Alarm inputs
0
External connections
RJ-45,12VDC power input,connection cable approx.15cm,Micro SD card slot 512 GB

General

Color (Housing)
black

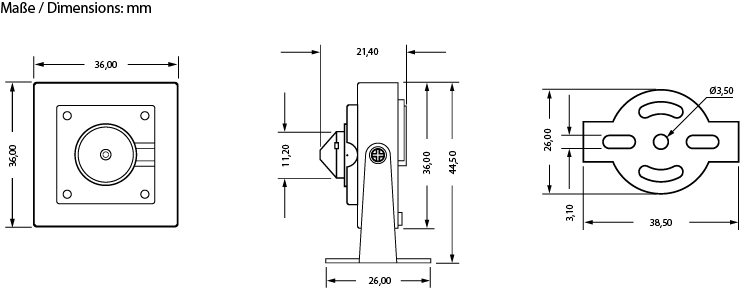

Dimensions (WxHxD) (extended)
36x36x14mm
Heating
No
Housing material
Metal
Housing type
Inside
Mounting type
Ceiling, Wall
ONVIF
ONVIF Profile S
Power consumption
2.5 W
Power over Ethernet
IEEE 802.3af
Power supply
12VDC, Poe
Temperature Range (Operating)
-20°C ~ +50°C
Text overlay
available
Weight
0.045 kg
Wide Dynamic Range (WDR)
D-WDR

Parts supplied

Scope of delivery
Quick installation guide,mounting bracket,2x mounting screws for the bracket,2x mounting screws for the camera module,1x waterproof cover for the RJ45 connector

Notes

Remark
To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necessary,we offer a compatibility check

Main Features

  • 1/2.8" Sony STARVIS CMOS image sensor
  • Resolution max. 1920x1080 (Full HD)
  • Video Compression Format: H.264/MJPEG
  • Motion Detection, Low Speed Shutter
  • Built in SD micro card slot
  • Backlight compensation 3DNR and D-WDR
  • Supports privacy zones and corridor mode
  • Lens 3.6mm (further lenses upon request)
  • Power Supply 12VDC (1.8W) or PoE (IEEE802.3af)
  • Connection cable (RJ45) for PoE and power supply
  • Operation Temperature -20°C - +50°C
  • Supports ONVIF Profile S
