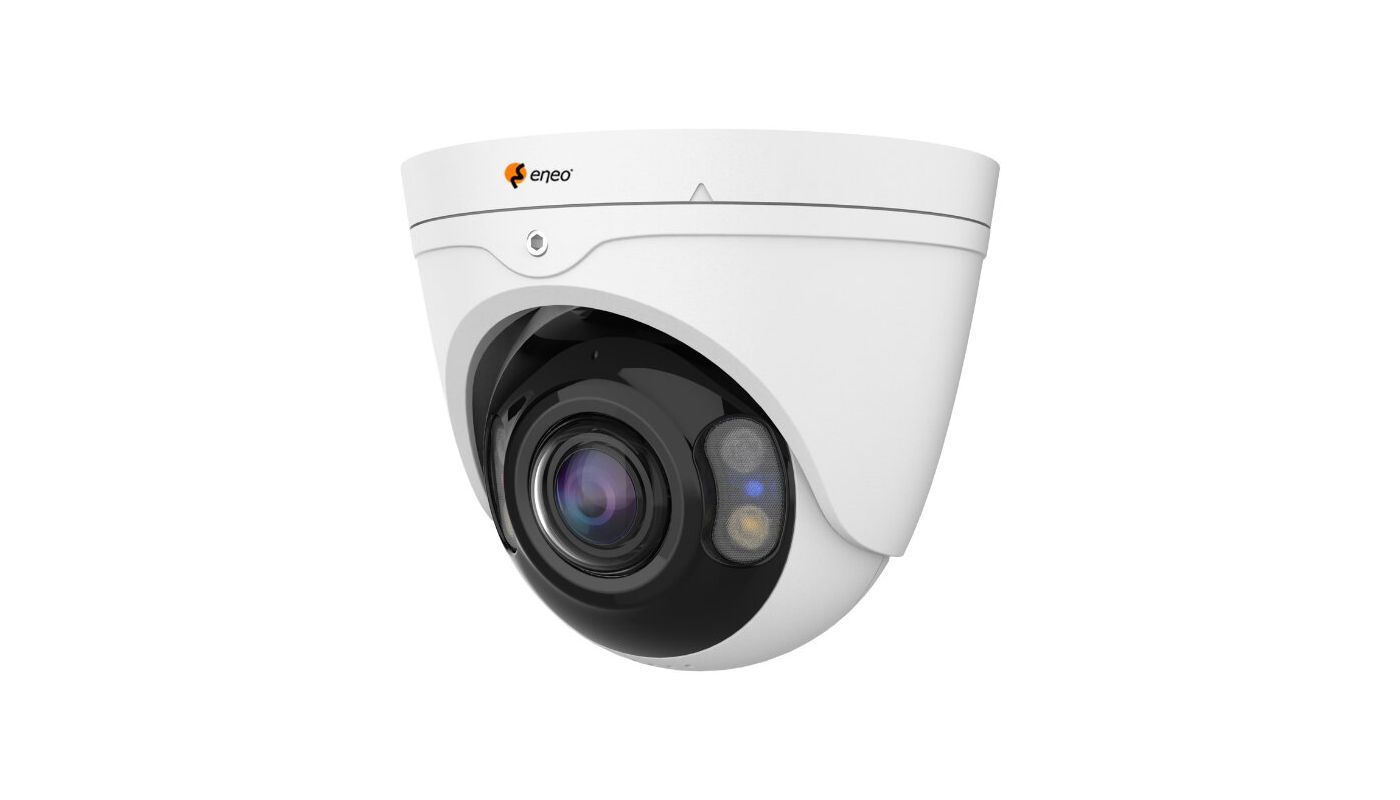

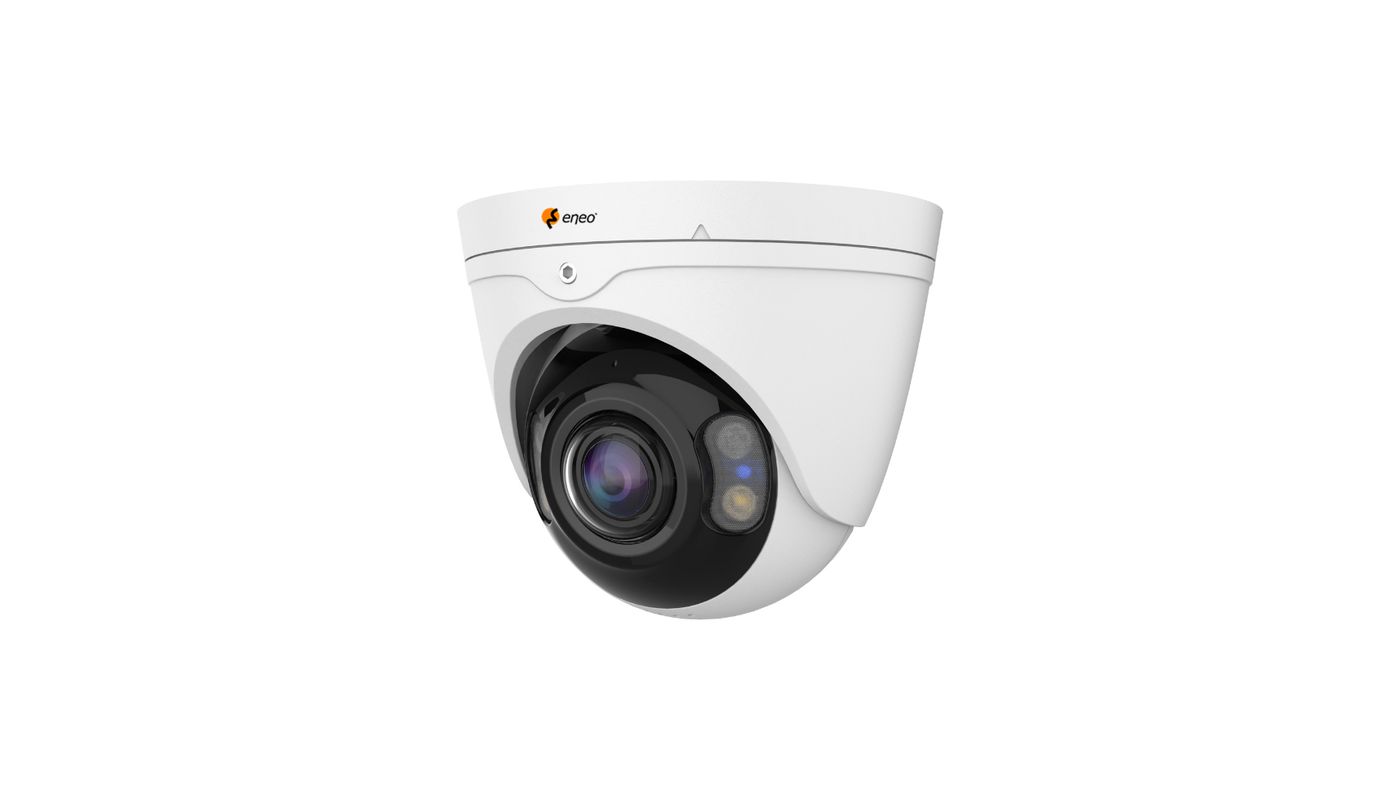

eneo IND-48F0002MTPA

SKU 238645
Network Dome Camera Fix, Turret, Panorama 180°, 3840x2160, Day/Night, WDR, AI, 2,0mm, IR, White Light, 12VDC, PoE, IP67
Data sheet

Specifications

Manufacturer order number
238645
Brand
eneo
EAN/GTIN
4260229840733
Series
eneo IN-Serie

Camera

Camera shape
Minsters
Chip size
1/2,8"
Resolution standard
8 MP
Recording sensor
CMOS, Sony IMX415
Photosensitivity
0,007 Lux bei F1,0
System
24h Color, True Day&Night
Manual Electric Shutter (MES)
1-5~1-20,000sec.
Backlight compensation
Yes
Day/night switching
Switchable IR Filter (ICR)
Day/night mode
Day,Night,night-color mode,Time
White balance
Automatic,Manual

Video

Resolution (extended)
3840x2160 (16:9) @20fps,2592x1944 (4:3),2592x1520 (16:9),2304x1296 (16:9),1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3)
Picture size
16:9, 4:3
Video Compression
H.264, H.264+, H.265, H.265+, M-JPEG
Data stream types
Triple-Stream(Main/Sub/Mobile)
Image transfer rate max.
20 fps

Lens

Lens Type
Prime lens
Focal length
2 mm
MOD (Minimum Object Distance)
0.6 m
Aperture Range (F)
F2,4
Vertical angle of view
91°
Horizontal angle of view
180°

Display

Image resolution max.
3840x2160

DORI

Perceiving (25px/m)
27,3 m
Watch (62px/m)
11,1 m
Detect (125px/m)
5,4 m
Identify (250px/m)
2,6 m

Functions

Multicast
Yes
Motion detector
Yes
Analysis
Abandoned and Removed Objects (SOD), Crowds (CD), Enter Region, Heat Map (HM), Intrusion, Intrusion (PID), Leave Region, Line crossing (LCD), Manipulation (TD), Object Classification Human / Vehicle (PD&VD), Passage count (CC), Queues (QD), Rare Sounds (RSD)
Alarm processing
Red & bule flashing lights,Siren
Audio support
Yes
Audio
2 Way Audio, Built-in microphone, Built-in speaker
Password
Administrator and User
Internal memory
microSD card slot
Menu languages
English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
Browser
Edge, Firefox, Google Chrome, Safari
Digital Noise Reduction (DNR)
Yes
Privacy Zone
Areas-ON/OFF switchable

Network

Network Protocols
DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, NTP, RTP, RTSP, SMTP, TCP-IP, UPnP

Interfaces / Inputs/ Outputs

External connections
RJ-45,12VDC input (DC plug),connection cable approx.30cm,micro SD card slot 256 GB
Ports
RJ-45
Control Interfaces
Ethernet

General

Wide Dynamic Range (WDR)
WDR
Lighting
Infrared, White

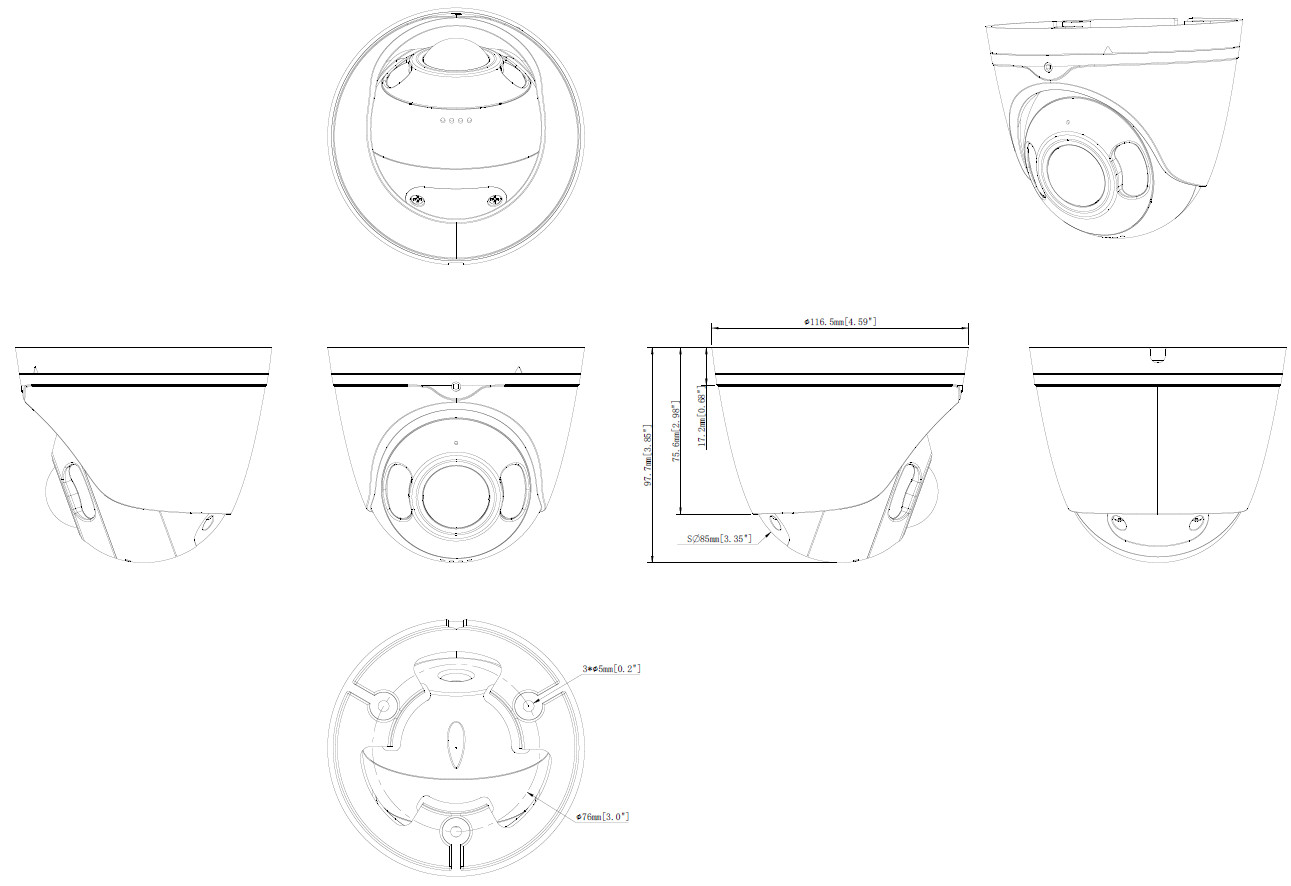

Dimensions (WxHxD) (extended)
97,7x116,5mm
Weight
0.59 kg
Illumination range
Approx. 25 m Infrared , Approx. 15 m White light
Color (Housing)
RAL9003,Pantone P 179-1 / Other colors available upon request
Housing type
Outside
Housing material
Aluminium
Heating
No
Camera Type
Domecamera
Power consumption
13 W
Mounting type
Ceiling, Wall
ONVIF
ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
ESC
1/5 ~ 1/20.000sec.
Protection
IP67, NEMA 4X
SDK
upon request
Power supply
12VDC, Poe
Temperature Range (Operating)
-35°C ~ +60°C,@ Luftfeuchtigkeit 95% oder weniger (nicht kondensierend)
Text overlay
Switchable on/off

Parts supplied

Scope of delivery
Quick installation guide,drilling template,3x wall plugs with screws,1x Allen wrench,1x waterproof cover for RJ45 connector

Additional Productinformation

Video Clip:

Use Cases:

Entrances & reception areas

Perfect for covering doorways and lobby zones: the 180° panoramic view minimizes blind spots and can reduce the number of cameras required.

Retail – coverage & business insights

Designed for shop floors, checkout areas and promotions: Heat Mapping and People Counting help analyze customer flow and optimize merchandising and staffing.

Parking lots & driveways

Ideal for car parks, gates and access roads: AI human/vehicle classification helps deliver more relevant alarms and reduces false notifications – day and night.

Building perimeter protection

For façades, back doors, yards and loading areas: Line crossing and intrusion detection enable event-driven alerts, while WDR handles challenging backlight scenes.

Warehouses, logistics & loading bays

Great for dock doors and dispatch areas: the combination of ultra-wide coverage and 8MP resolution provides both overview and detail in dynamic lighting.

Outdoor & industrial sites

Built for harsh conditions: IP67 protection and an operating range down to -35°C support reliable year-round outdoor deployment.

Night surveillance with IR and white light

For low-light or unlit areas: integrated IR and white-light LEDs support clear imaging and deterrence depending on the chosen mode.

Unattended sites / edge recording

For branches, remote locations or temporary setups: microSD edge storage enables recording even without a permanent NVR connection.

Audio-enabled security

For entrances and security zones: built-in microphone and speaker enable audio monitoring and live/remote announcements (subject to configuration and local compliance).

Main Features

  • 1/2.8" Sony STARVIS CMOS sensor,
  • Maximum resolution 3840x2160 pixels, 20fps
  • Panorama ultra wide-angle camera 180° HFoV
  • AI analysis functions including object classification
  • WDR 120dB and 3D-DNR noise reduction
  • Lens 2.0mm fixed focal length
  • Smart codec H.265/H.264, multi-streaming
  • Browser-independent (Edge, Safari, Firefox, Chrome)
  • Supports ONVIF profiles S/T/G/M and audio
  • Local storage via micro SD card
  • NDAA compliance
  • Integrated IR and white light LED illumination, IP67

Downloads

Services

Manufacturer and service level agreements

Information to garantee, service, partner programs, repairs, pre and aftersales.

Safety Instructions

Manufactured by

VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark [email protected]
