NSFP-20000SSC
SKU 242375
SFP Modul Pair, 1,25Gbps, 20KM, Simplex SC, Tx/Rx at 1310/1550nm, SFP MSA-compliant, Digital Monitoring
For Prices and Availability please login.
new
Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 242375 |
|---|
| Brand | eneo |
|---|---|

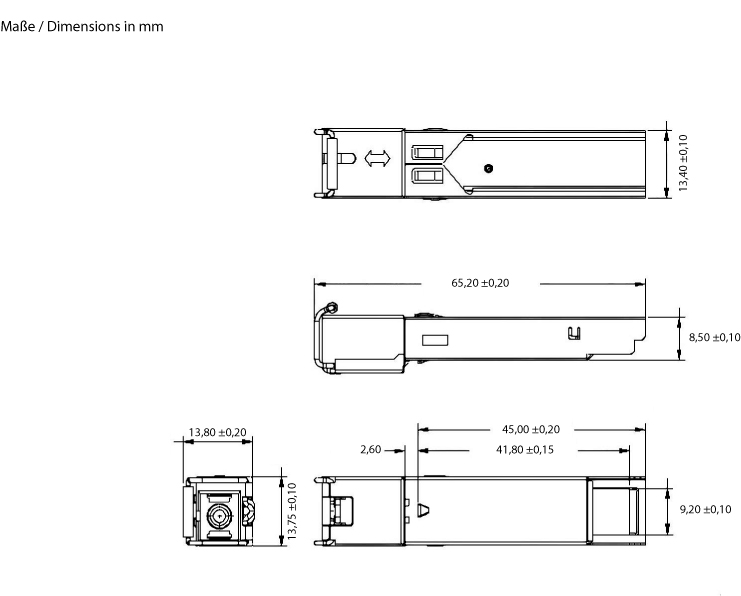

| Dimensions (HxWxD) | 13,8x13,75x65,2mm |
| Fiber optic connector | Simplex SC |
| Model | module |
| Number of fibers | 2 |
| Operating temperature | 0°C ~ +70°C |
| Range | 20 km |
| Transmission medium | optical fiber |
| Type | SFP-Modul |
| Wavelength | 1310nm |
| Weight | 43g |
Main Features
- 1250 Mbps data rate via single-mode fiber
- BIDI design for single-fiber use (1310/1550 nm)
- Up to 20 km range on 9/125 μm SMF
- SC optical connector
- Compliant with SFP MSA & SFF-8472
- Digital Diagnostics (DDM/DOM) integrated
- Single +3.3V power supply required
- Metal housing reduces EMI interference
- Temp. range -40°C to +85°C (industrial)
- TX fault and LOS detection supported
- Low power consumption (max. 300 mA)
- RoHS compliant and lead-free assembly
