NSFP-3000SLC
SKU 242374
SFP Modul Pair, 1,25Gbps, 3KM, Simplex LC, Tx/Rx at 1310/1550nm, SFP MSA-compliant, Digital Monitoring
For Prices and Availability please login.
Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 242374 |
|---|
| Application environment | inside |
|---|---|
| Brand | eneo |
| Design | Module |

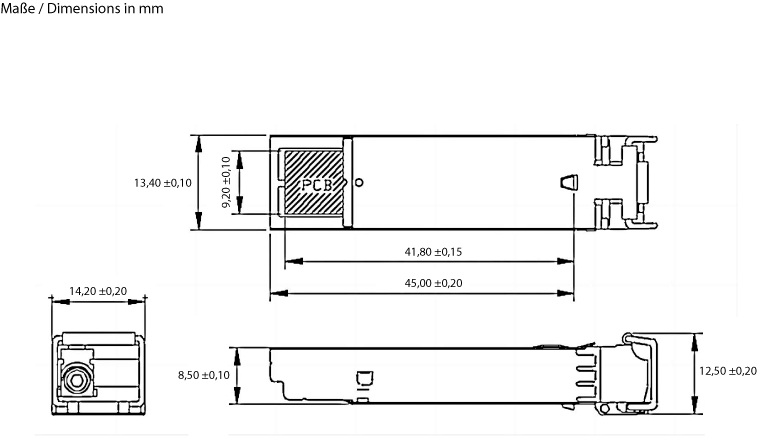

| Dimensions (WxHxD) (extended) | 14,5x12,5x56,3mm |
| Fiber Optic Connectors | Duplex LC |
| Mode | Single Mode |
| Number of fibers | 1 |
| Reach | 3 km |
| Temperature Range (Operating) | -40°C ~ +85°C |
| Transmission medium | Glass fibre |
| Type | SFP Module |
| Weight | 37.47 kg |
Main Features
- 1250 Mbps data rate via single-mode fiber
- BIDI design for single-fiber use(1310/1550 nm)
- Up to 3 km range on 9/125 μm SMF
- LC optical connector
- Compliant with SFP MSA & SFF-8472
- Digital Diagnostics (DDM/DOM) integrated
- Single +3.3V power supply required
- Metal housing reduces EMI interference
- Wide temp. range: -40°C to +85°C (industrial)
- TX fault and LOS detection supported
- Low power consumption (max. 300 mA)
- RoHS compliant and lead-free assembly
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Quick reference guide for this product (multilingual)
-
Quick reference guide for this product (multilingual)
-
Product image in a high resolution
-
Declaration of conformity (german and english)
