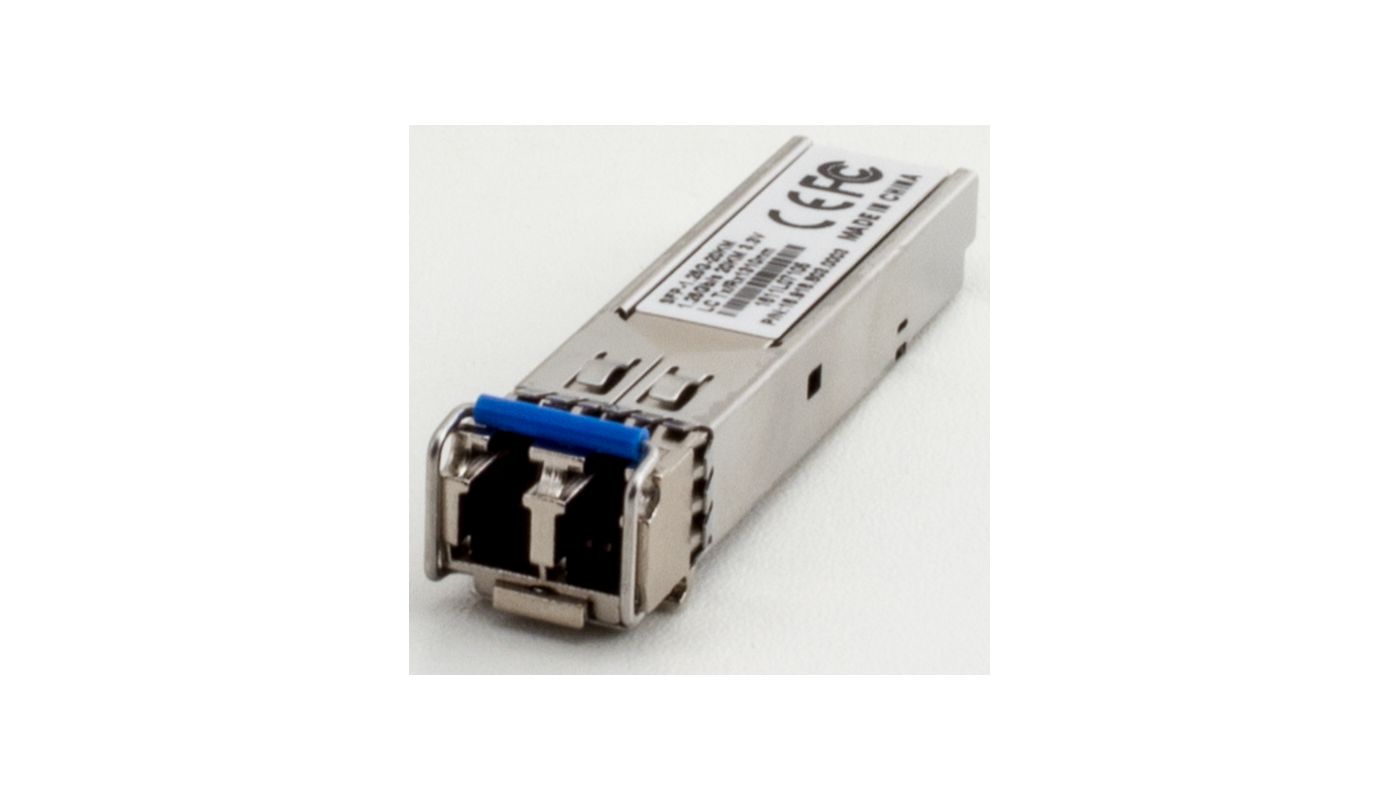

SFP-1310M40

SFP Modul, 1.25Gbps, 550m, Multimode, 1310nm, Duplex LC Connector, -40°~+75°C
SKU
216478
Main Features
  • Compatible to IEEE802.3z Gigabit Ethernet Standard
  • Bandwith 1,25Gbps
  • Industry standard small form pluggable (SFP) package
  • Duplex LC connector, 1310nm
  • Differential LVPECL inputs and outputs
  • Single power supply 3.3V
  • Hot Pluggable
  • Class 1 laser product complies with EN 60825-1
  • Distance 50/125 µm MMF 550m
  • Temperature range -40° ~ +70° C
More Information
Brand eneo
Operation mode multi mode
Operation mode multi mode
Fiber optic connector Duplex LC
Weight 17g
Range 550 m
Type SFP-Modul
Operating temperature -40°C ~ +75°C
Wavelength 1310nm
Number of fibers 2
Transmission medium optical fiber
Manufacturer order number 216478
