NSFP-20000DLC
SKU 242377
SFP Module, 1.25 Gbps, 20KM, Duplex LC, Tx/Rx at 1310 nm, hot-plug, SFP MSA-compliant, Digital Monitoring
For Prices and Availability please login.

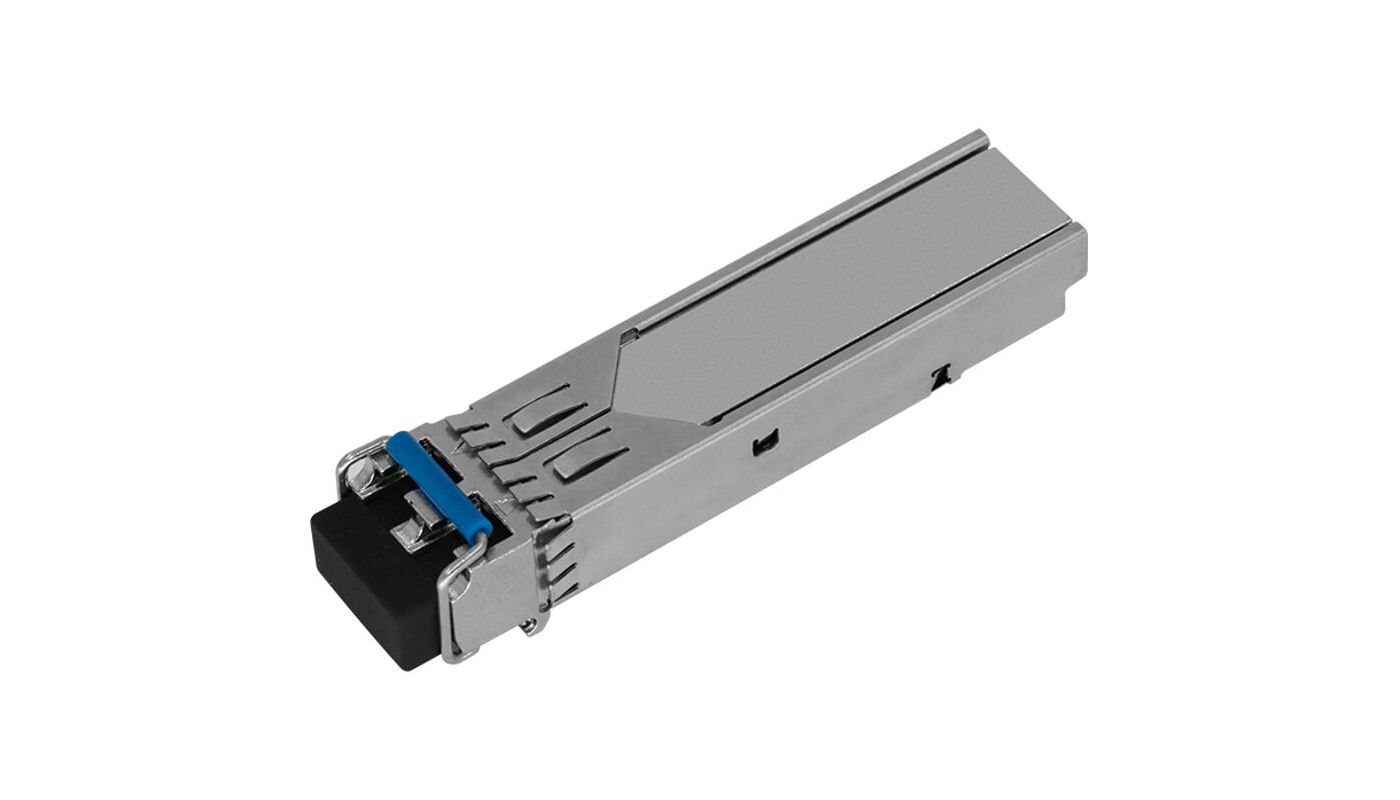

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 242377 |
|---|
| Application environment | inside |
|---|---|
| Brand | eneo |
| Design | Module |

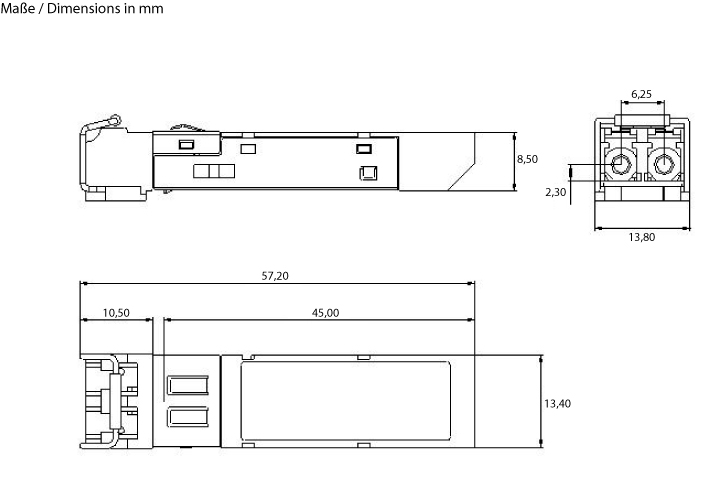

| Dimensions (WxHxD) (extended) | 14,2x12,5x56,3mm |
| Fiber Optic Connectors | Duplex LC |
| Mode | Single Mode |
| Number of fibers | 2 |
| Reach | 20 km |
| Temperature Range (Operating) | -40°C ~ +85°C |
| Transmission medium | Glass fibre |
| Type | SFP Module |
| Weight | 17.05 g |
Main Features
- 1250 Mbps data rate on 9/125 µm SMF
- Dual-fiber design (separate TX and RX fibers)
- Up to 20 km range (single-mode fiber)
- LC optical connector
- Compliant with SFP MSA & SFF-8472
- Integrated Digital Diagnostics Monitoring (DDM)
- Wide temp. range: -40°C to +85°C (industrial)
- Single 3.3V power supply
- Metal housing for low EMI interference
- TX fault and Loss of Signal (LOS) alerts
- Low power consumption (< 300 mA)
- RoHS compliant and lead-free
