NSFP-20000SLC
SKU 242376

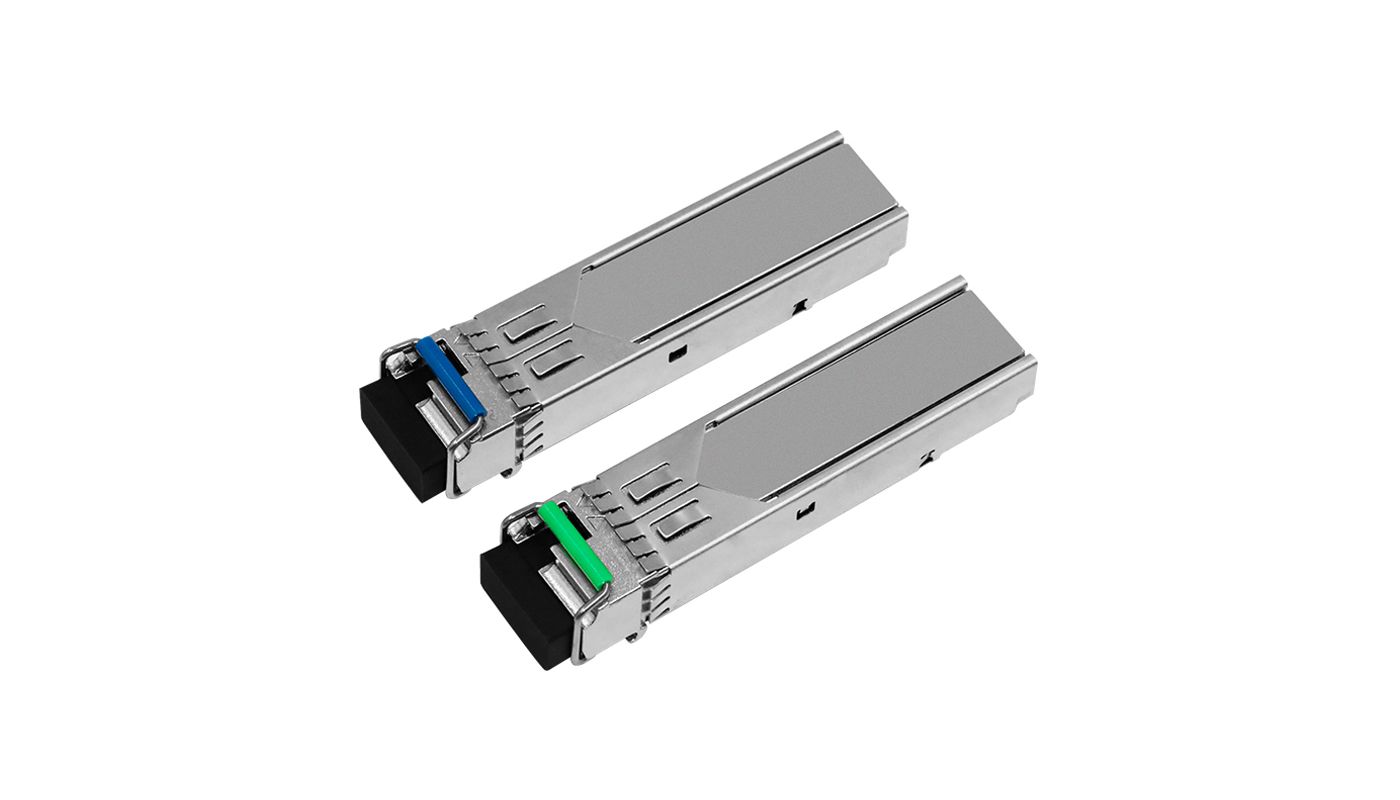

SFP Modul Pair, 1.25 Gbps, 20 km, Simplex LC, Tx/Rx at 1310/1550nm, SFP MSA-compliant, Digital Monitoring
For Prices and Availability please login.
Specifications
- Manufacturer order number
- 242376
- Brand
- eneo
Recording
- Mode
- Single Mode
Interfaces / Inputs/ Outputs
- Fiber Optic Connectors
- Duplex LC
General
- Design
- Module

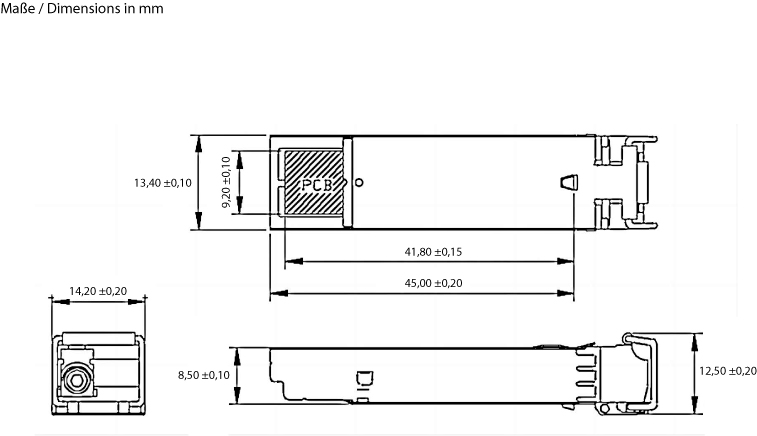

- Dimensions (WxHxD) (extended)
- 14,5x12,5x56,3mm
- Weight
- 37.47 kg
- Reach
- 20 km
- Type
- SFP Module
- Temperature Range (Operating)
- -40°C ~ +85°C
- Application environment
- inside
- Number of fibers
- 1
- Transmission medium
- Glass fibre
Main Features
- 1250 Mbps data rate via single-mode fiber
- BIDI design for single-fiber use (1310/1550nm)
- Up to 20 km range on 9/125 μm SMF
- LC optical connector
- Compliant with SFP MSA & SFF-8472
- Digital Diagnostics (DDM/DOM) integrated
- Single +3.3V power supply required
- Metal housing reduces EMI interference
- Wide temp. range: -40°C to +85°C (industrial)
- TX fault and LOS detection supported
- Low power consumption (max. 300 mA)
- RoHS compliant and lead-free assembly
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Quick reference guide for this product (multilingual)
-
Quick reference guide for this product (multilingual)
-
Product image in a high resolution
-
Declaration of conformity (german and english)
