eneo INM-78M2812M0A

SKU 236668

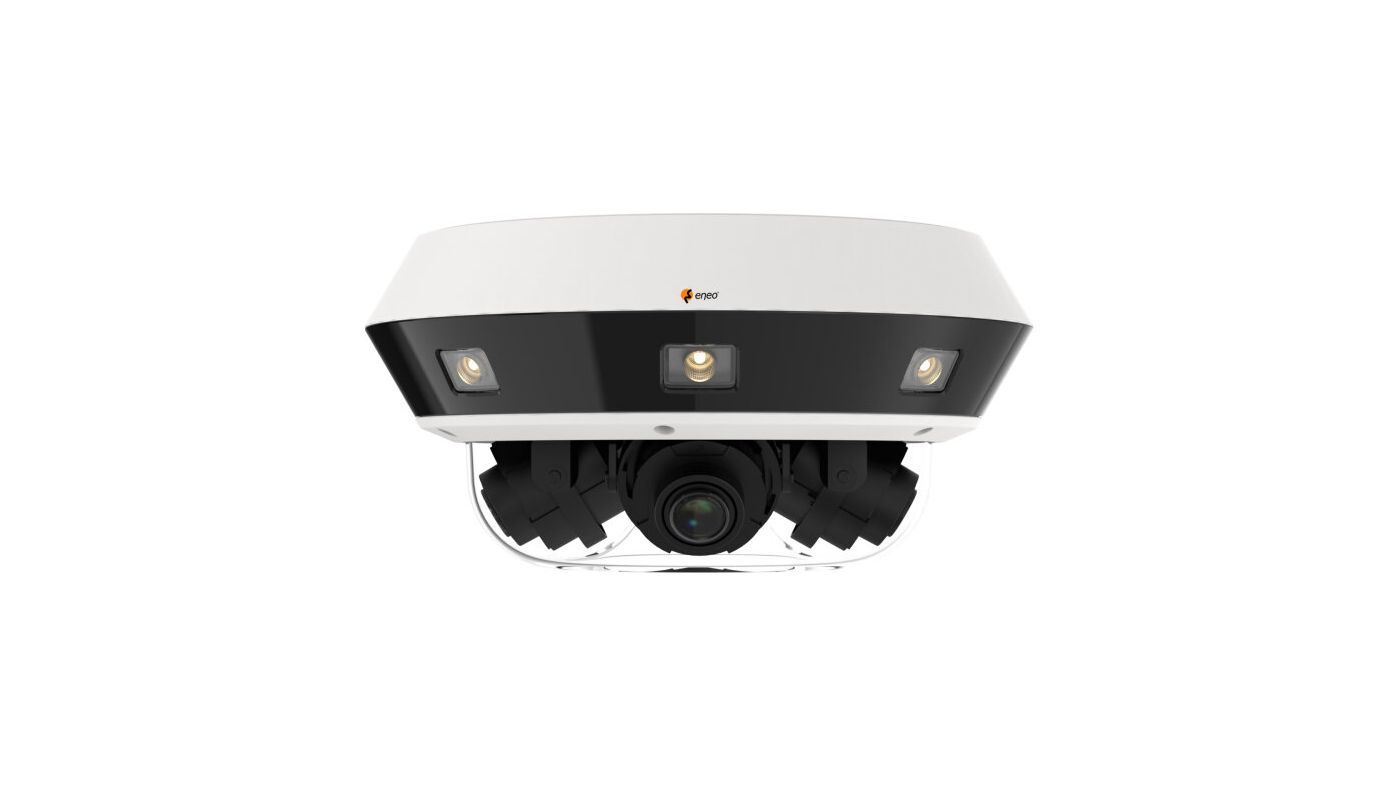

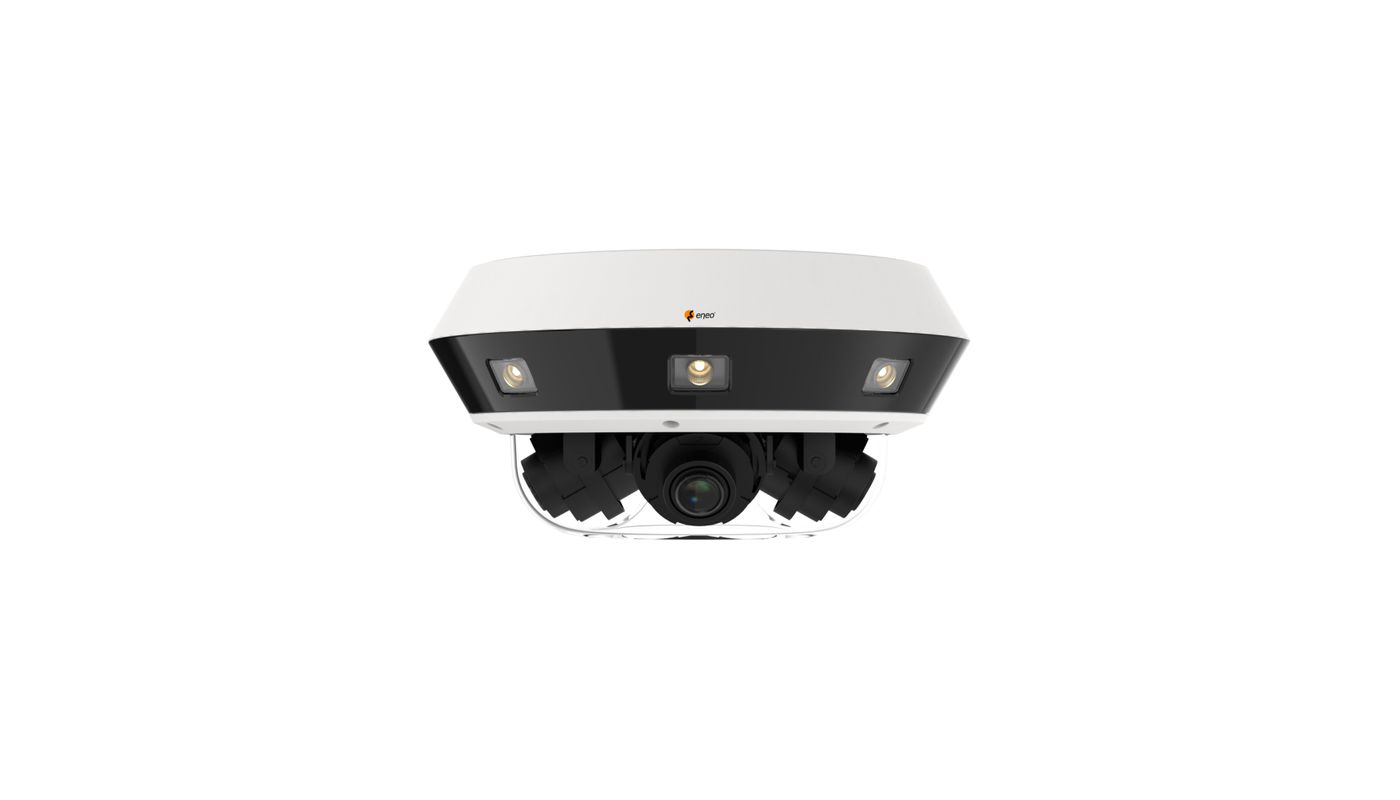

Network Multisensor Camera, 360°, 4x 3840x2160, Day&Night, WDR, AI, 4x 2,8-12mm, IR, White light, IK10, IP67
Data sheet

Specifications

Manufacturer order number
236668
Brand
eneo
EAN/GTIN
4260229840627
Series
eneo IN-Serie

Camera

Camera shape
Minsters
Chip size
1/1,8"
Resolution standard
32 MP
Recording sensor
CMOS
Photosensitivity
0,006 Lux bei F1,2
System
Electronic Day&Night
Low Speed Shutter
Yes
Manual Electric Shutter (MES)
1-5~1-20,000sec.
Backlight compensation
Yes
Day/night switching
Switchable IR Filter (ICR)
Day/night mode
Day,Night,Automatic,Time
White balance
Automatic
Signal-to-noise ratio
51 dB

Video

Resolution (extended)
3840x2140 (16:9),2592x1944 (4:3),2592x1520 (16:9),2304x1296 (16:9),1920x1080 (16:9),1280x960 (4:3),1280x720 (16:9),640x480 (4:3),320x240 (4:3)
Video Compression
H.264, H.264+, H.265, H.265+, M-JPEG
Data stream types
Triple-Stream(Main/Sub/Mobile)
Image transfer rate max.
25 fps

Lens

Lens Type
Varifocal (motorized)
Focal length
2,8 - 12 mm
MOD (Minimum Object Distance)
0 m
Aperture Range (F)
F1.3
Vertical angle of view
27 - 58°
Horizontal angle of view
360°

Display

Image resolution max.
4x 3840x2160

DORI

Perceiving (25px/m)
58,6 - 177 m
Watch (62px/m)
23,4 - 71 m
Detect (125px/m)
11,4 - 35,1 m
Identify (250px/m)
5,4 - 17,6 m

Functions

Multicast
Yes
Motion detector
Yes
Alarm processing
recording internal storage (SD card),E-Mail,HTTP,FTP,TCP,UDP,alarm out,Cloud Upload
Audio support
Yes
Audio
2 Way Audio
Password
Administrator and User
Internal memory
256GB, microSD card, microSDHC card, microSDXC card
Menu languages
English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish
Browser
Firefox, Google Chrome, MS Internet Explorer 10/11, Safari
Digital Noise Reduction (DNR)
Yes
Privacy Zone
Areas-ON/OFF switchable

Network

Network Protocols
DDNS, DHCP, DNA, FTP, HTTP, HTTPS, IEE 802.1, NTP, PPPoE, RTP, RTSP, SMTP, TCP-IP, UPnP

Interfaces / Inputs/ Outputs

External connections
RJ-45,12VDC input,24VAC input,Alarm in/output,Audio input/output,micro SD card slot 256 GB
Alarm inputs
0
Control Interfaces
Ethernet

General

Wide Dynamic Range (WDR)
WDR 120dB
Lighting
Infrared, White

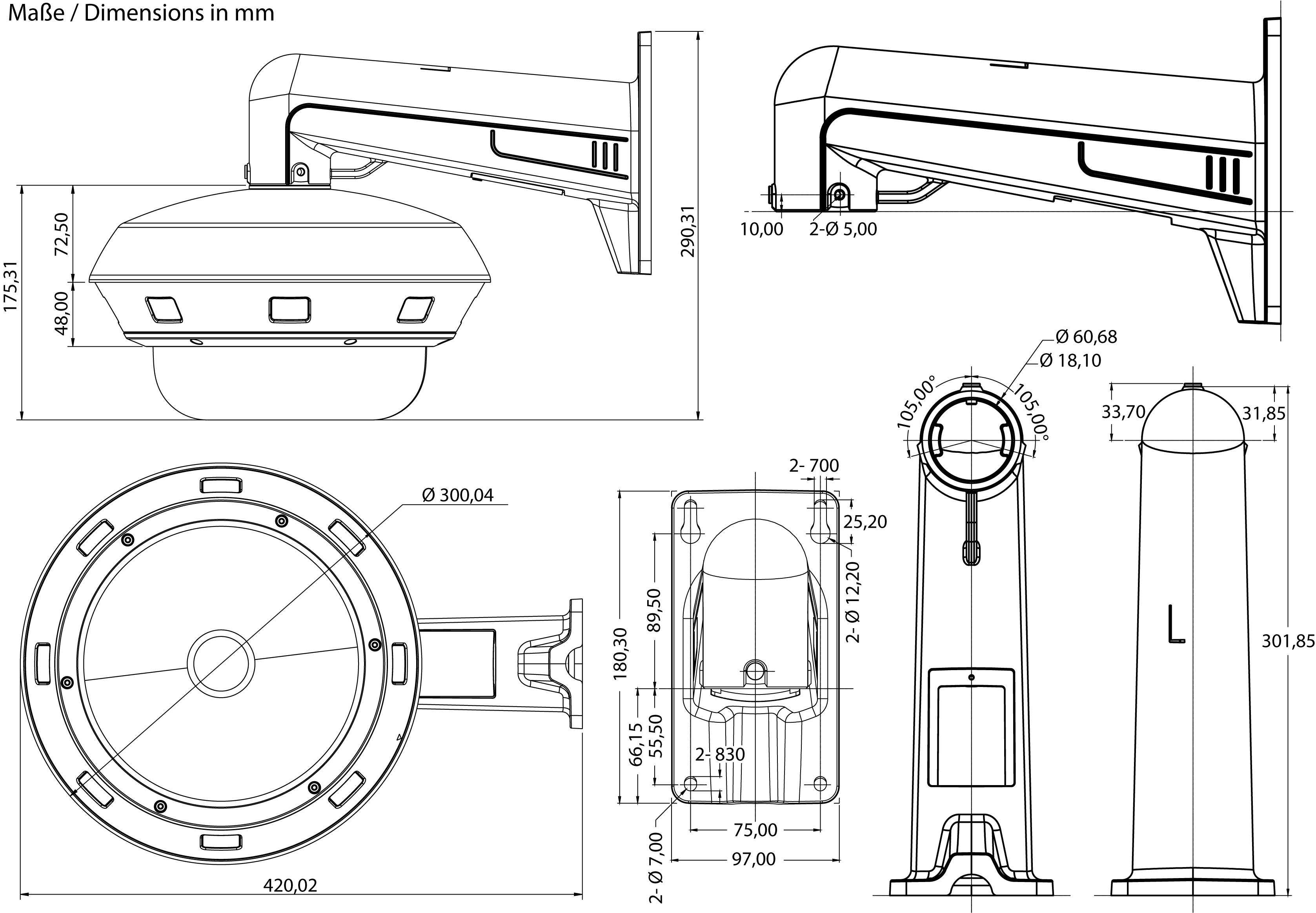

Dimensions (WxHxD) (extended)
300x195mm
Illumination range
Approx. 35 m IR , Approx. 25 m White light
Color (Housing)
RAL9003,Pantone P 179-1
Color (dome)
clear
Housing type
Outside
Housing material
Aluminium
Camera Type
Multi-sensor camera
Power consumption
43 W
Mounting type
Wall
ONVIF
ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3bt
ESC
1/5 ~ 1/20.000sec.
Protection
IP67
SDK
upon request
Power supply
12VDC, 24VAC, PoE++
Temperature Range (Operating)
-30°C ~ +55°C,@ Luftfeuchtigkeit 95% oder weniger (nicht kondensierend)
Text overlay
Switchable on/off
Vandalism-resistant
Yes
Certifications
IK10

Parts supplied

Scope of delivery
manual,bag of screws,wall bracket,PoE-Injector 100-240VAC~ 56VDC,60W

Notes

Remark
For optimal results,use only eneo components. For mixed brands,we offer a compatibility check for a fee (info: item #229235 at VIDEOR).

Additional Productinformation

Application Scenarios for the eneo INM-78M2812M0A Multisensor 360° Camera

The eneo INM-78M2812M0A combines four 4K sensors, advanced video analytics and a rugged outdoor housing to deliver powerful 360° surveillance. It replaces multiple single-sensor cameras, eliminates blind spots and lowers installation and operating costs – the ideal choice for professional video security where image quality, reliable detection and compliance really matter.

Typical use cases:

City and municipal surveillance Monitoring squares, intersections, pedestrian zones or parks with just one camera. The total 32 MP resolution and WDR provide highly detailed images – even in backlight situations and challenging lighting conditions.

Parking lots, garages and outdoor areas Complete overview of large parking areas, entrances/exits and loading zones. Integrated IR and white light illumination ensure clear images at night, while AI analytics support accurate detection of people and vehicles.

Logistics, warehousing and industrial sites Surveillance of loading bays, production areas and warehouses. The rugged, vandal-resistant IK10/IP67 design is made for harsh environments, and object classification helps to minimize false alarms.

Shopping centers, retail areas and branch networks Wide-area coverage of entrances, mall areas and checkout zones. Multiple viewing directions can be combined flexibly – for visitor flow analysis, safety and loss prevention within a single system.

Education and healthcare campuses Monitoring of campus grounds, courtyards, access roads and parking areas. 360° coverage supports security concepts at schools, universities and hospitals with just a few strategically placed cameras.

Critical infrastructure and perimeter protection Securing energy facilities, water plants, data centers or government sites. AI-driven analytics help reliably detect and classify security-relevant events around sensitive areas.

Transport hubs and public transit Use at train and bus stations or airport access roads. The wide dynamic range (120 dB WDR) delivers clear images in scenes with strong contrasts, such as entrances from bright outdoor zones into darker halls.

With PoE&43;&43;, an included wall mount and browser-independent access, the eneo INM-78M2812M0A integrates quickly and easily – into existing VMS platforms via ONVIF as well as into new, modern security architectures.

You can find an installation video at the following link:

https://youtu.be/nXzJc5kh7C4?si&61;TR3gRwAcHbXxwLL5

Main Features

  • Multidirectional camera 4x 1/1.8" CMOS sensor
  • Max. Resolution 32MP, 4x 3840 x 2160, frame rate 30fps
  • 4 Lenses with motorised focal length 2.8-12mm
  • AI analysis functions including object classification
  • Smart codec H.265/H.264, multi-streaming
  • Browser-independent (Edge, Safari, Firefox, Chrome)
  • Supports T-WDR, BLC, HLC and 3D DNR
  • Supports ONVIF profiles S/T/G/M
  • Integrated IR and white light illumination
  • For outdoor use IP67, vandalism protected IK10
  • NDAA compliance
  • Wall bracket and PoE injector included
