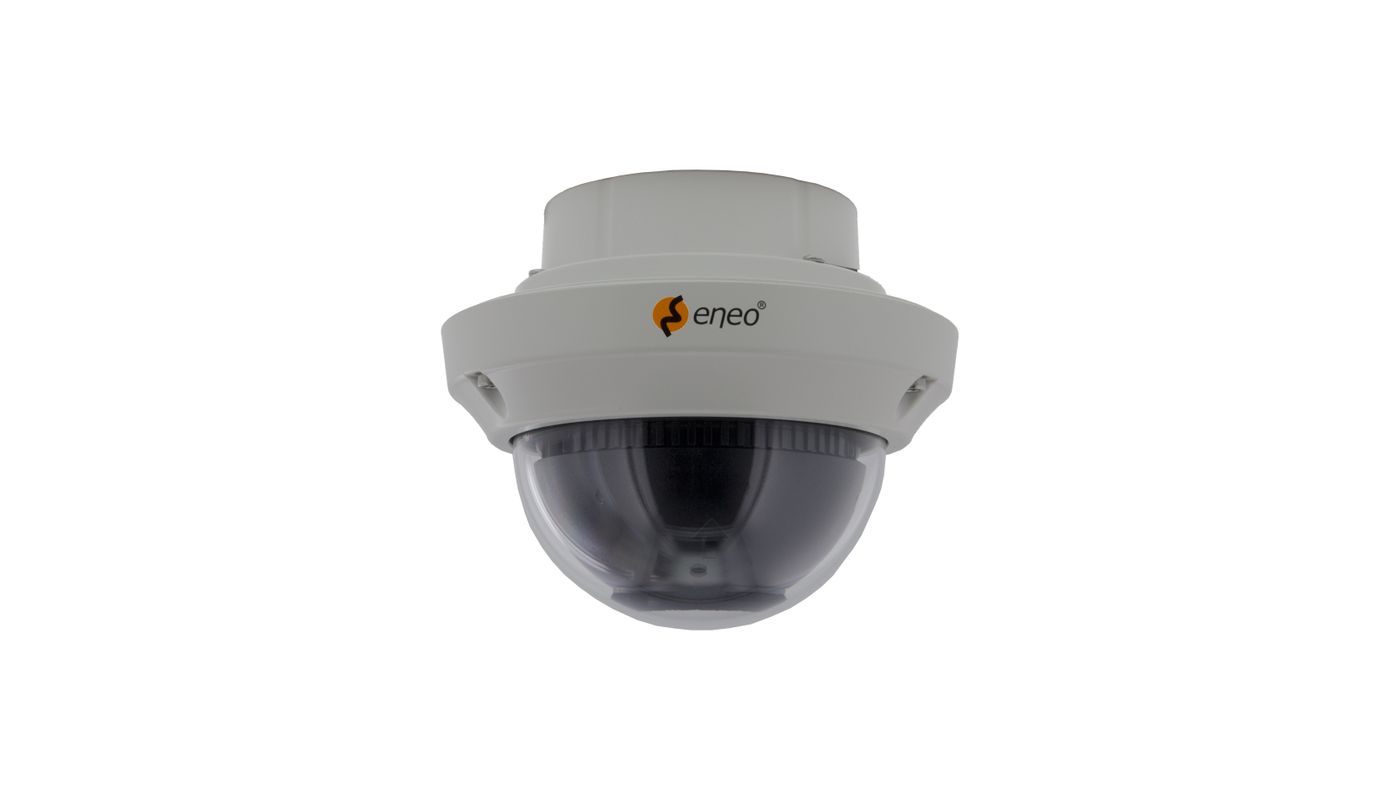

MPD-72M2713M0B
SKU 243651
Specifications
| Manufacturer order number | 243651 |
|---|---|
| Series | eneo KX-Serie,eneo Callisto |
| Alarm inputs | 0 |
|---|---|
| Aperture Range (F) | F1.6 |
| Audio support | No |
| Backlight compensation | No |
| Brand | eneo |
| Camera shape | Minsters |
| Certifications | IK10 |
| Chip size | 1/2,8" |
| Control Interfaces | Coaxitron (HD Protocol) |
| Day/night mode | Automatic,Day,Night,extern (Sensor) |
| Day/night switching | Switchable IR Filter (ICR) |
| Digital Noise Reduction (DNR) | Yes |

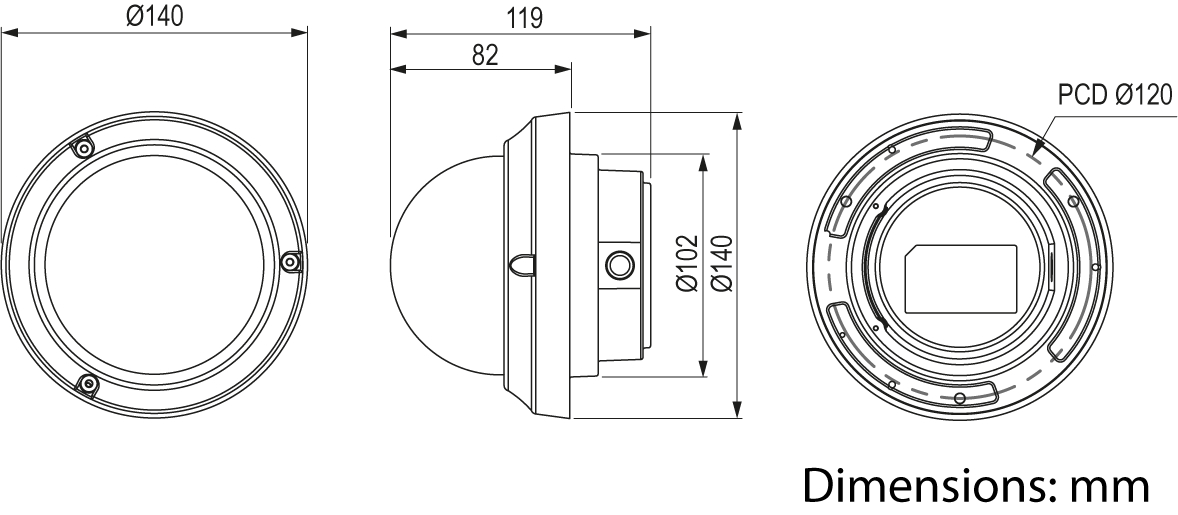

| Dimensions (WxHxD) (extended) | 119x140mm |
| External connections | voltage input,1x SDI Signal (BNC),1x HD/SD Analog Signal (BNC),connection cable approx.15cm |
| Fan | No |
| Flickerless function | Yes |
| Focal length | 2,7 - 13,5 mm |
| Heating | Yes |
| Horizontal angle of view | 101 - 32° |
| Housing material | Aluminium |
| Housing type | Outside |
| Identify (250px/m) | 4 m |
| Illumination range | ca. 50m |
| Integrated wall mount | No |
| Interface Protocols | UTC (HD Signal Format), UTC (HD Signal Format) |
| Lens Type | Varifocal (motorized) |
| Lighting | Infrared |
| Low Speed Shutter | No |
| Menu languages | Chinese, English, French, German, Japanese, Korean |
| Motion detector | No |
| Mounting type | Ceiling, Wall |
| Multicast | No |
| Number of alarm outputs | 0 |
| Perceiving (25px/m) | 47 m |
| Photosensitivity | 0.005Lux(Day mode),0.0005Lux(Night mode) |
| Power supply | 12VDC |
| Protection | IP67 |
| Recording sensor | CMOS |
| Remark | NDAA compliance under Section 889 |
| Scope of delivery | manual,drilling template,bag of screws |
| Signal Format | AHD @ 2MP, AHD @ 2MP, Composite (FBAS), HD-TVI @ 2MP, HD-TVI @ 2MP, HD-TVI @ 2MP, HD-TVI @ 2MP |
| Signal-to-noise ratio | 50 dB |
| Sunshade canopy | No |
| System | True Day&Night |
| Temperature Range (Operating) | -30°C ~ +50°C |
| Text overlay | available |
| Vandalism-resistant | Yes |
| Watch (62px/m) | 18 m |
| White balance | Automatic,Preset,Manual,AUTOext |
| Wide Dynamic Range (WDR) | D-WDR, D-WDR, D-WDR, D-WDR, D-WDR, D-WDR, D-WDR |
| Zoom Factor (Digital) | 0 |
| Zoomfactor (optical) | 4 |
Additional Productinformation
Sony STARVIS 2
Improved low-light performance (especially with HDR)
STARVIS 2 offers significantly improved performance in low light, especially with high dynamic range (HDR). It has been specially optimised for backlit situations and night scenes with high contrast.
Higher dynamic range (High Dynamic Range)
STARVIS 2 achieves up to 88 dB real dynamic range (Single Exposure) according to Sony - that&039;s more than the original STARVIS. This helps to better display details in dark AND bright areas at the same time - without ‘burning out’ or ‘drowning out’ the image areas.
Uniform brightness across the image field
STARVIS 2 reduces the so-called vignetting effect (edge darkening) that can occur with BSI sensors. This means a more even image brightness, even in poorly lit conditions.
Better colour reproduction in low light
STARVIS 2 offers a more natural colour reproduction at night - colours appear less washed out or monochromatic. Particularly relevant for forensic applications (e.g. clothing, vehicles, skin tones).
Main Features
- 1/2.8" 2 Megapixel SONY STARVIS 2 CMOS sensor
- Resolution max. 1920x1080 pixels (Full HD)
- Super low light performance by Sony STARVIS 2 technology
- Multisignal: HD-TVI, AHD, CVI and Composite selectable
- Digital signal: EX-SDI, HD-SDI selectable
- Motorized vari-focal lens 2.7-13.5mm
- Removable infrared cut filter
- ROI (Region of Interest) WDR mode
- Integrated motion detector, defog, privacy zones
- IP67, built-in heater, 3-Axis gimbal
- For wall or ceiling flush mount
- Hard coated bubble, Anti-scratch protection
