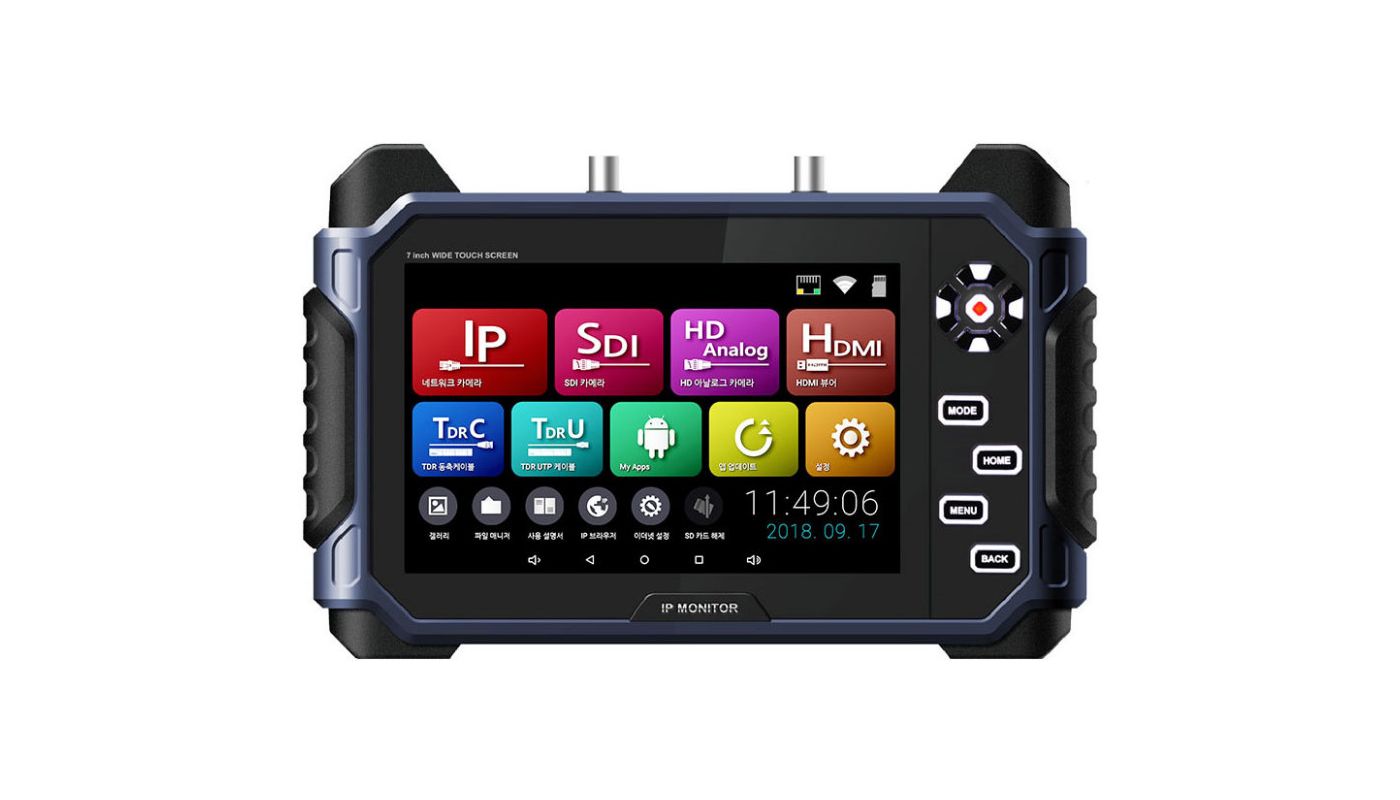

SC-IPM07PRO

7" (17,8cm) Test Monitor, Touch, IP, HD/3G/EX-SDI, TVI, CVI, AHD, Composite, HDMI
SKU
221811
Main Features
  • 7" touch monitor for setup and service
  • Imputs: IP, HD/3G/EX-SDI, TVI/CVI/AHD, CVBS
  • AHD/TVI/CVI up to 8 megapixels
  • HDMI input/output
  • Resolution: 1920x1200 pixels
  • SFP-Port single-mode, multi-mode
  • IP address scan and search, ping test, link test
  • Cable tester for coax and UTP
  • 12VDC power supply for camera
  • Li-Polymer battery
  • Carry-on case inclused
More Information
Brand SeeEyes
Resolution Pixels 1920x1200
Video compression H.264, H.265, M-JPEG
Housing Indoor
Color (housing) blau, dark grey
Hosuing material ABS plastic
Video inputs (type) 3G-SDI, AHD, composite (CVBS), CVI, EX-SDI, HD-SDI, HD-TVI, HDMI
Ethernet interface 10/100/1000Mbps
Dimension (lxwxd) 246x160x49,9mm
Supply voltage 12VDC
Operating temperature 0°C ~ +50°C
Manufacturer order number SC-IPM07PRO

to top
to top
  • Manufacturer data sheet PDF 221811_en_sup.pdf Original product information from the manufacturer 2.3 MB
  • Data sheet PDF 221811_sc-ipm07pro.pdf Data sheet with specifications generated live from the product database <350KB
  • Specifications text DOC 221811_sc-ipm07pro.doc Technical data as Word document, generated live from the product database <50KB
to top

Description
