MAM-5DC1004M0A
SKU 225085

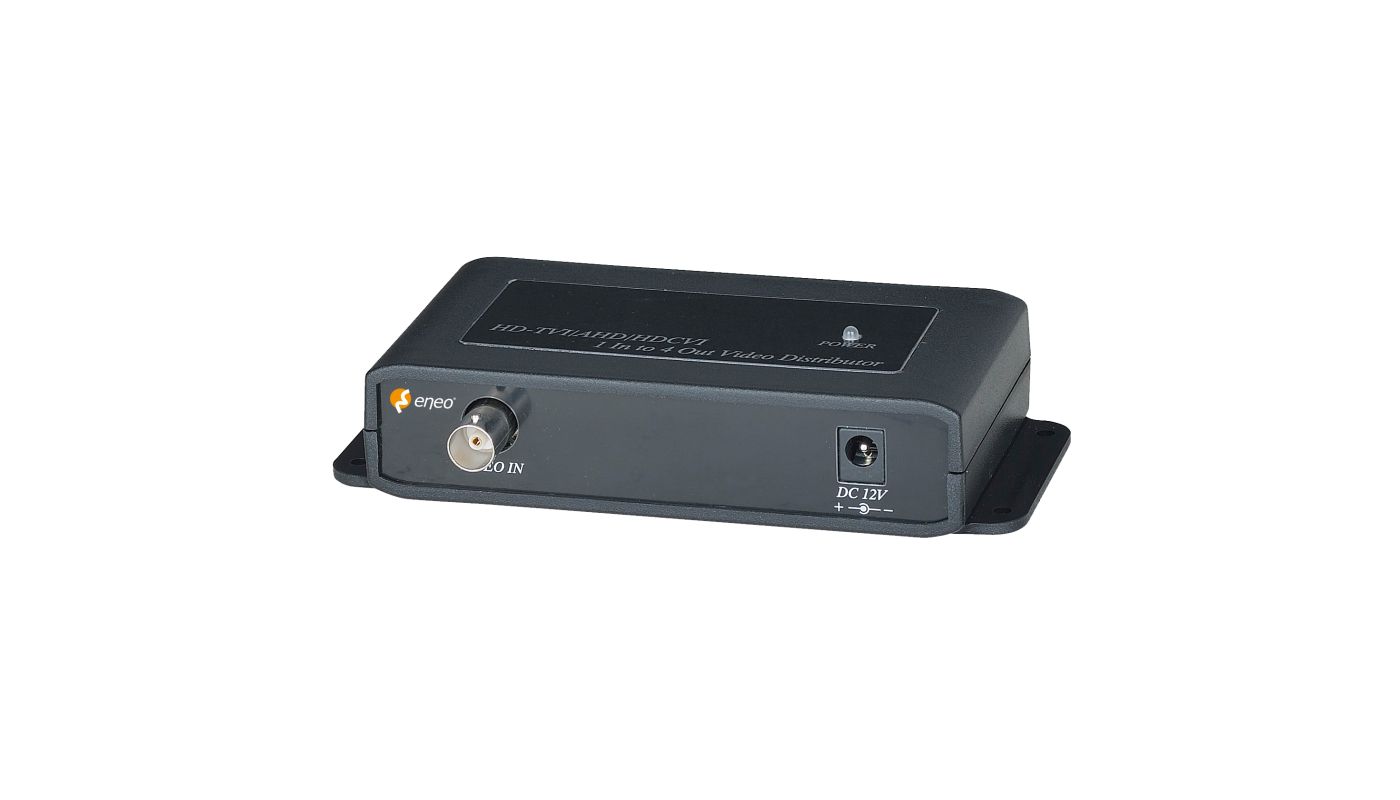

Distributor, 1x BNC Input HD-TVI, CVI, AHD, CVBS, 4x BNC Output
For Prices and Availability please login.
Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 225085 |
|---|---|
| Series | eneo COAXIZE |
| Brand | eneo |
|---|---|
| Color | anthracite |
| Dimensions (HxWxD) | 29,5x138x85,6mm |
| Housing | plastic |
| Image resolution max. | 3840x2160 |
| Power consumption | 1.4W |
| Signal format | AHD @ 8MP, Composite (FBAS), CVI @ 8MP, HD-TVI @ 8MP |
| Supply voltage | 12VDC |
| Video inputs (type) | AHD, composite (CVBS), CVI, HD-TVI |
| Video outputs | 4, BNC |
| Weight | 140g |
Main Features
- Video Distributor for HD analogue signals
- 1 signal input to 4 signal outputs
- Supported formats HD-TVI, AHD, HDCVI, CVBS
- High resolutions of up to 4K are supported
Downloads
-
Data sheet with specifications generated live from the product database
-
Detailed manual for this product
-
Declaration of Conformity in German and English
-
Product Image in a high resolution for print
-
Technical data as Word document, generated live from the product database
-
Original product information from the manufacturer
Services
Manufacturer and service level agreementsInformation to garantee, service, partner programs, repairs, pre and aftersales.
