VM-SD7M

SKU 229214
7" (17,7cm) LCD Monitor 800x480, LED, HDMI, VGA, Composite
Data sheet

Abb. ähnlich

Specifications

Manufacturer order number 229214
Series eneo Monitor
Applications 24/7, Industrie
Aspect ratio 16:9
Audio inputs 1
Audio output 1x 3,5mm jack
Backlighting LED
Brand eneo
Brightness typical 250 cd/m²
Contrast ratio typical 500:1

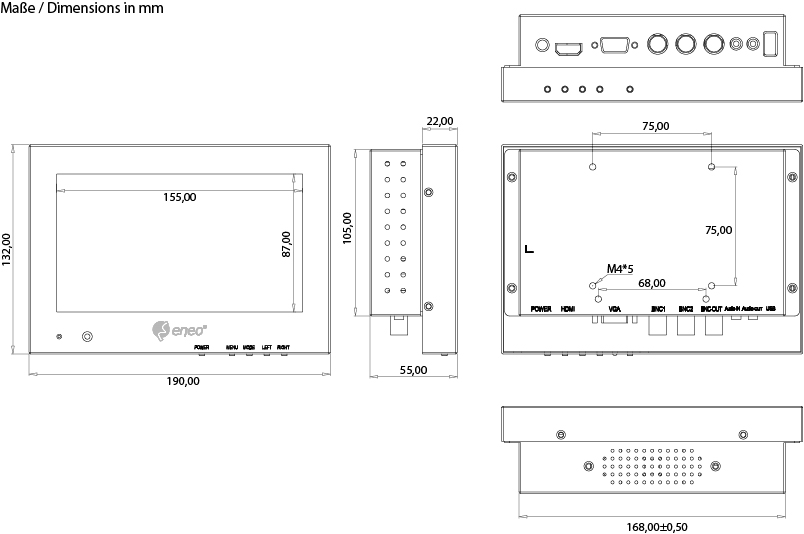

Dimensions (HxWxD) 132x192x40mm
Hosuing material Metal
Housing color black
Loudspeaker 2
Operating temperature 0°C ~ +40°C, @ Humidity 10%-90% (non-condensing)
Power consumption 7.5W
Refresh rate 60 Hz
Reponse time typical 5 ms
Resolution Pixels 800x480
Resolution Pixels 800x480
Screen size (cm) 17.7 cm
Screen size (inch) 7"
Serial interfaces no
Supply voltage 12VDC
Video inputs (type) 2x composite (CVBS), HDMI, VGA
Video outputs Composite (CVBS)
Viewing angle horzontal 178°
Viewing angle vertical 178°
Weight 2.0kg

Main Features

  • Professional 7" (17,7 cm) LCD monitor
  • Industrial design built to run 24x7x365 continuously
  • Maximum resolution 800x480 pixels
  • LED Back Light
  • Fast response time 5ms
  • Perfect presentation through digital 3D filtering and noise reduction
  • Different video inputs HDMI, VGA, Composite
  • Supply voltage: 12VDC
  • VESA Standard 75x75mm
  • Metal cabinet including stand
  • Metallgehäuse inklusive Standfuß
