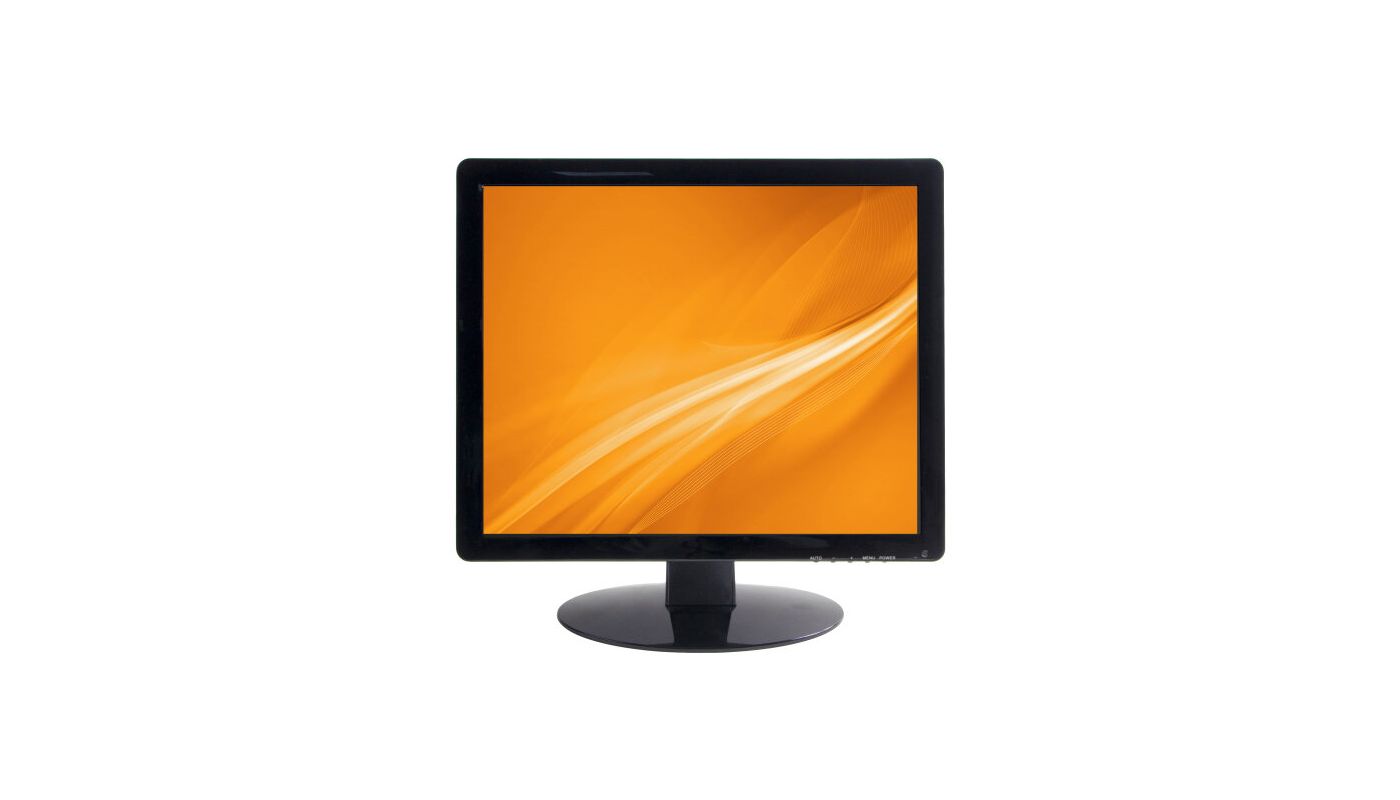

19" (48cm) LCD Monitor HD 1280x1024, LED, HDMI, VGA, Composite
SKU
224195
Main Features
- Professional 19" (48 cm) LCD monitor
- Industrial design built to run 24x7x365 continuously
- Maximum resolution 1280x1024 pixels
- LED Back Light
- Fast response time 5ms
- Perfect presentation through digital 3D filtering and noise reduction
- Different video inputs HDMI, VGA, Composite
- Built-in speakers
- Supply Voltage: 12VDC
- Plastic cabinet including stand
For Prices and Availability please login.
Brand | eneo |
---|---|
Refresh rate | 60 Hz |
Applications | 24/7 |
Aspect ratio | 5:4 |
Resolution Pixels | 1280x1024 |
Contrast ratio typical | 1000:1 |
Reponse time typical | 5 ms |
Brightness typical | 300 cd/m² |
Backlighting | LED |
Viewing angle vertical | 178° |
Viewing angle horzontal | 178° |
Screen size (inch) | 19" |
Screen size (cm) | 48 cm |
Video inputs (type) | 2x composite (CVBS), HDMI, VGA |
Video outputs | Composite (CVBS) |
Video outputs | Composite (CVBS) |
Audio inputs | 1 |
Audio output | 1x 3,5mm jack |
Serial interfaces | no |
Series | eneo Monitor |

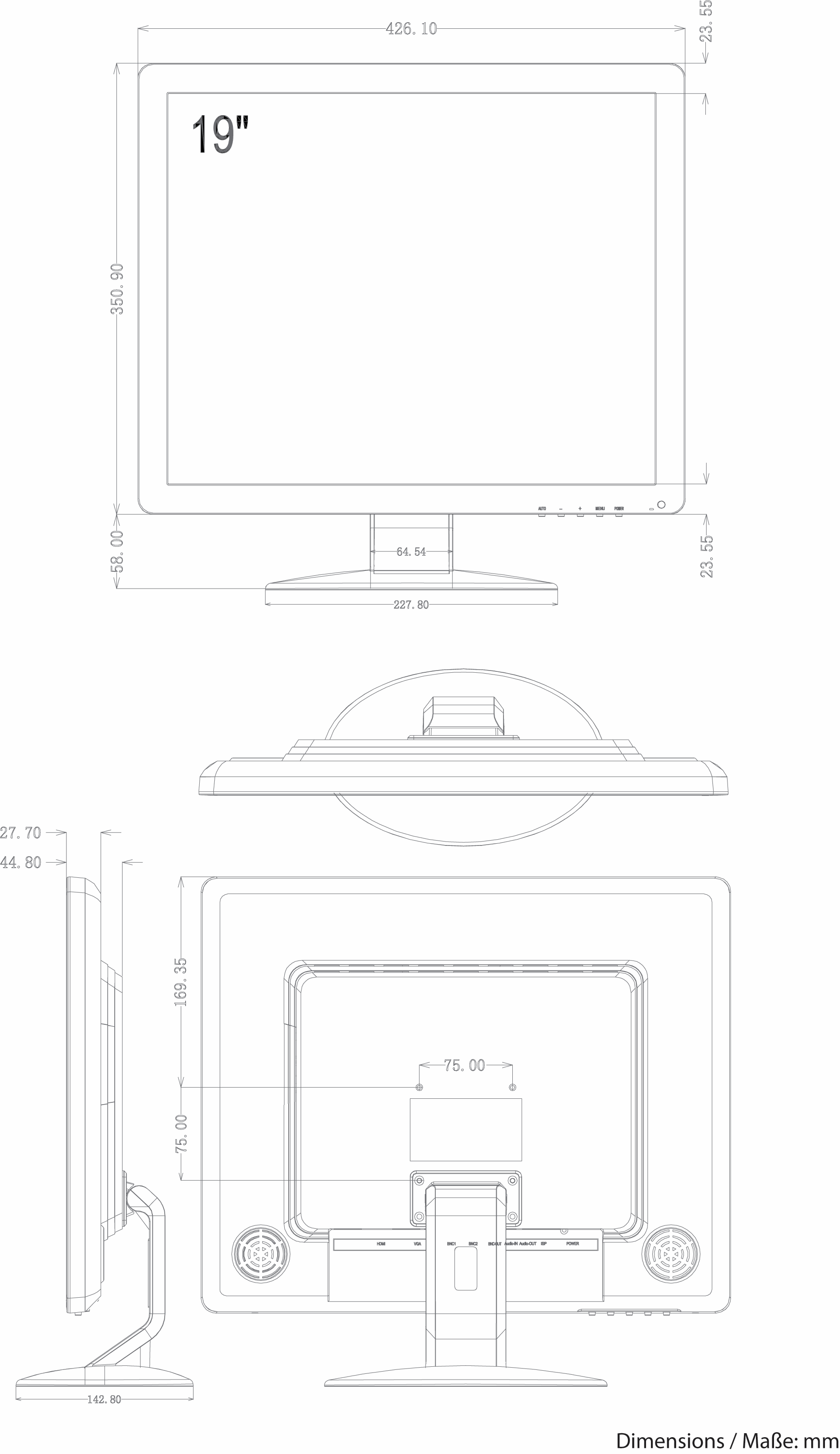

Dimensions (HxWxD) | 350.90x425,1x44,80mm |
Weight | 3,9kg |
Hosuing material | Plastic |
Housing color | black |
Loudspeaker | 2 |
Power consumption | 26.5W |
Supply voltage | 12VDC |
Operating temperature | -30°C ~ +85°C, @ Humidity 10%-90% (non-condensing) |
Manufacturer order number | 224195 |
- Marketing Infos PDF NDAA konforme Produkte.pdf NDAA konforme Produkte 202.9 kB
- Manufacturer data sheet PDF 224195_en_sup.pdf Original product information from the manufacturer 175.6 kB
- Manufacturer datasheet PDF Original product information from the manufacturer
- Data sheet PDF 224195_vm-hd19p.pdf Data sheet with specifications generated live from the product database <350KB
- Specifications text DOC 224195_vm-hd19p.doc Technical data as Word document, generated live from the product database <50KB
