VM-HD19MPA
SKU 233036
19" (48cm) LCD, Industrial Monitor, 1280x1024, HDMI, VGA, Composite, Protection Glass
For Prices and Availability please login.

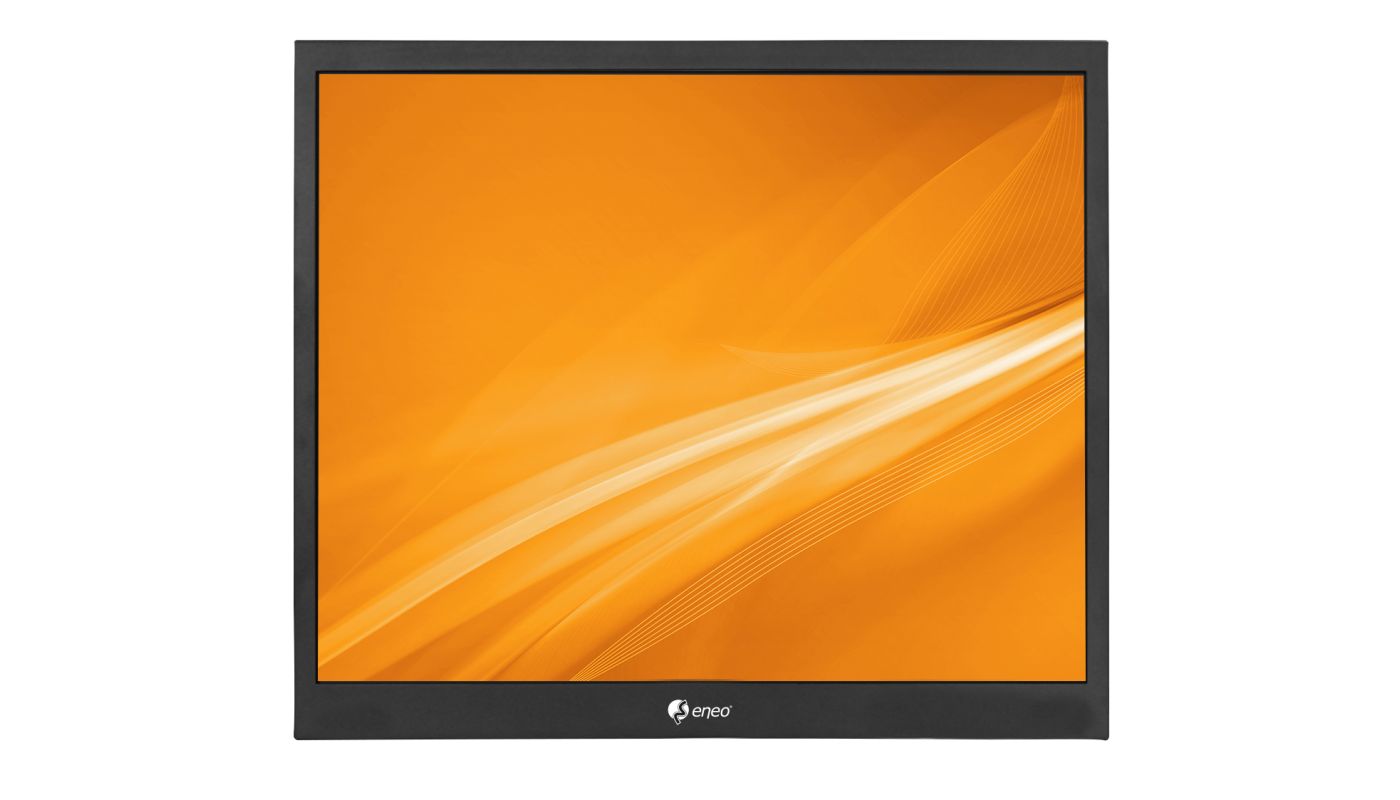

Main image
Click to view image in fullscreen
![]()
Camera not included
Specifications
| Manufacturer order number | 233036 |
|---|---|
| Series | eneo Monitor |
| Aspect ratio | 5:4 |
|---|---|
| Audio Inputs | 1 |
| Backlight | LED |
| Brand | eneo |
| Brightness (typical) | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Control Interfaces | no |
| Display | Anti-glare display, Glass, Hard coating (6.5H), Haze: 89%, Not anit-glare type |
| Housing material | Metal |
| Menu languages | Chinese, English, French, German, Italian |
| Refresh rate | 60 Hz |
| Response time (typical) | 14 ms |
| Scope of delivery | manual,power cord,wall bracket,HDMI cable |
| Screen diagonal (cm) | 48 cm |
| Screen diagonal (inches) | 19 " |
| Transmission Technology | HDCP 1.4, HDMI 1.4a |
| Video Inputs | Composite (FBAS), HDMI, VGA |
| Viewing Angle Horizontal | 178 ° |
| Viewing Angle Vertical | 178 ° |
Main Features
- Professional 19" (48 cm) LCD monitor
- Built to run 24x7x365 continuously (Industrial Level)
- Including protection glass, Anti-Glare-Display 3H
- Maximum resolution 1280x1024 pixels
- LED Back Light
- Fast response time 5ms
- Different video inputs HDMI, VGA, BNC (CVBS)
- Audio In- and Output
- Built-in speakers
- Metal cabinet including wall mount
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manufacturer data sheet (german)
-
Manufacturer data sheet (english)
-
Manual for this product (german)
-
Manual for this product (english)
-
NDAA compliant products
-
Product image in a high resolution
-
Declaration of conformity (german and english)
