eneo VM-HD15P

SKU 217912
15" (38cm) LCD Monitor HD, 1024x768, LED, HDMI, VGA, BNC, external Power Supply
Data sheet

Camera not included

Specifications

Brand
eneo
EAN/GTIN
4260229841273
Manufacturer order number
217912
Series
eneo Monitor

Video

Maximum Image Resolution (H x V)
1024x768
Resolution (extended)
800x600,1024x768

Display

Aspect ratio
4:3
Backlight
LED
Brightness (typical)
350 cd/m²
Contrast ratio (typical)
700:1
Display
Anti-glare display, Color TFT-LCD, Hard coating (3H)
Pixel error class
ISO 13406-2, Class 2
Refresh rate
60 Hz
Response time (typical)
5 ms
Screen diagonal (cm)
38 cm
Screen diagonal (inches)
15 "
Viewing Angle Horizontal
178 °
Viewing Angle Vertical
178 °

Functions

Comb filter
Yes
Menu languages
English, German

Interfaces / Inputs/ Outputs

Audio Inputs
1
Transmission Technology
HDCP 1.4, HDCP 2.2, HDMI 1.4a
Video Inputs
2x Composite (FBAS), HDMI, VGA
Video Outputs
Composite (FBAS)

General

Applications
24/7
Color (Housing)
Black

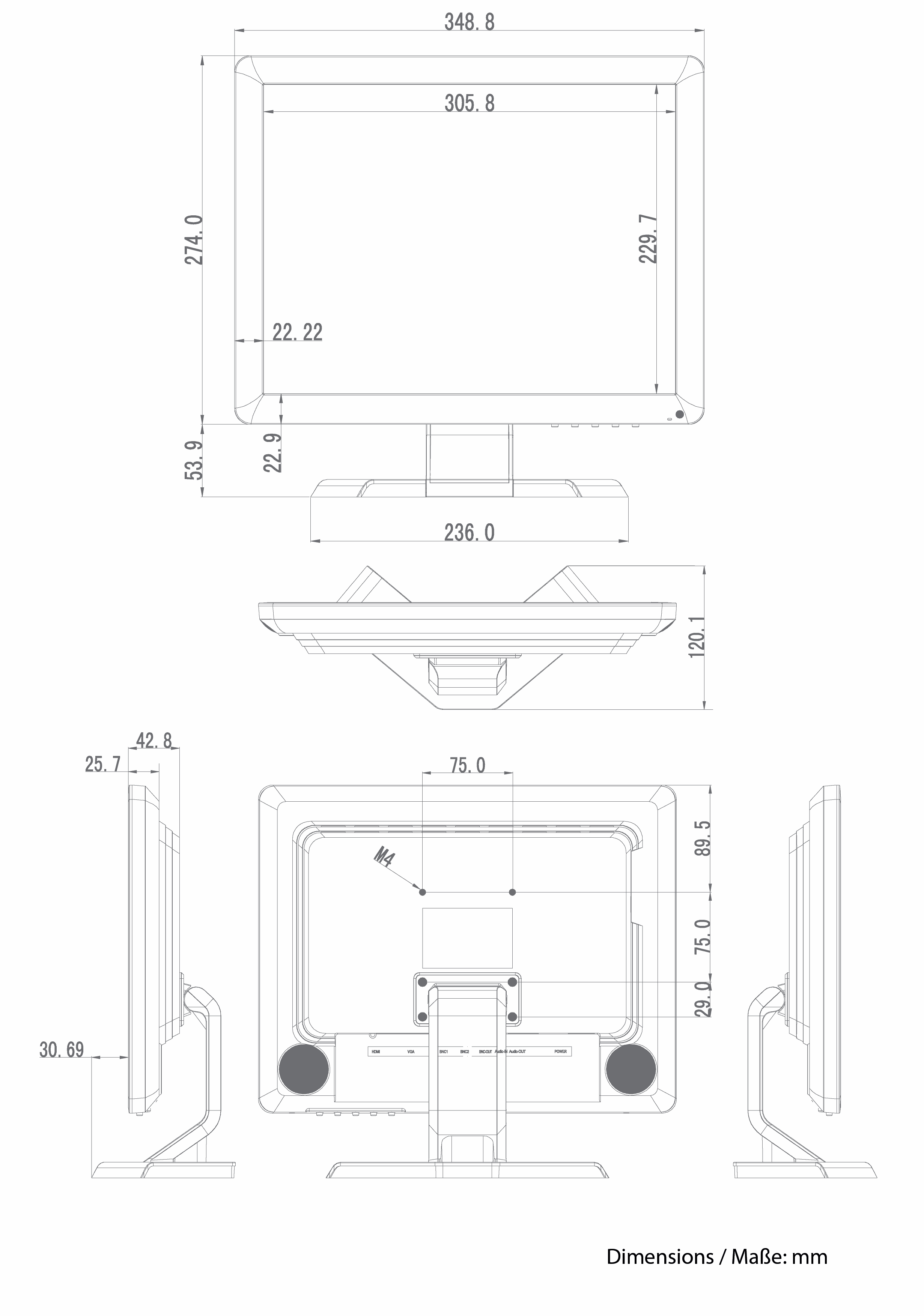

Dimensions (WxHxD) (extended)
349x274x43mm
Energy efficiency class
E
Fortification
VESA Standard 75x75mm
Housing material
Plastic
Power consumption
10 W
Power supply
12VDC
Weight
2.9 kg

Parts supplied

Scope of delivery
manual,power cord,PSU 100~240VAC,IR remote controller,VGA cable,feet

Notes

Remark
NDAA compliance under Section 889

Main Features

  • Professional 15" (38 cm) LCD monitor
  • Industrial design built to run 24x7x365 continuously
  • Maximum resolution 1024x768 pixels
  • LED Back Light
  • Fast response time 5ms
  • Perfect presentation through digital 3D filtering and noise reduction
  • Different video inputs HDMI, VGA, Composite
  • Supply voltage: 12VDC
  • Plastic cabinet including stand
