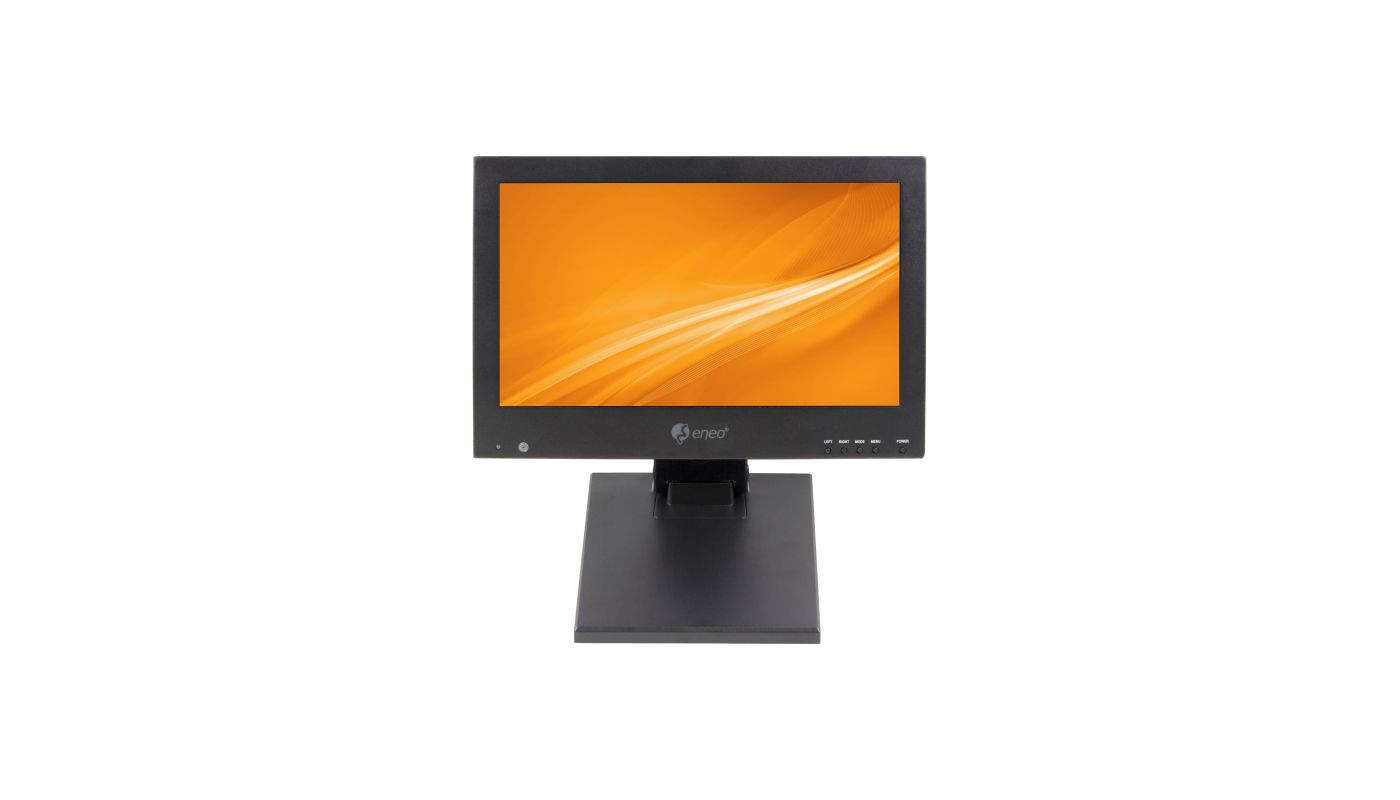

eneo VM-FHD12M
SKU 227599
12" (30cm) LCD Monitor FHD, 1920x1080, LED, HDMI, VGA, Composite, TVI, CVI, AHD
For Prices and Availability please login.
Specifications
- Manufacturer order number
- 227599
- Brand
- eneo
- EAN/GTIN
- 4260229841211
- Series
- eneo Monitor
Video
- Resolution (extended)
- 800x600,1024x768,1280x1024,1600x900,1920x1080
- Maximum Image Resolution (HV)
- 1920x1080
Display
- Display
- Anti-glare display, Color TFT-LCD, Hard coating (3H)
- Refresh rate
- 60 Hz
- Aspect ratio
- 16:9
- Contrast ratio (typical)
- 1000:1
- Response time (typical)
- 5 ms
- Brightness (typical)
- 250 cd/m²
- Backlight
- LED
- Viewing Angle Vertical
- 170 °
- Viewing Angle Horizontal
- 170 °
- Screen diagonal (inches)
- 12 "
- Screen diagonal (cm)
- 30 cm
- Pixel error class
- ISO 13406-2, Class 2
Functions
- Comb filter
- Yes
- Menu languages
- English, German
Interfaces / Inputs/ Outputs
- Video Inputs
- 2x HDMI, AHD, Composite (FBAS), CVI, HD-TVI, VGA
- Transmission Technology
- HDCP 1.4, HDCP 2.2, HDMI 1.4a
- Video Outputs
- 1x BNC signal loop
- Audio Inputs
- 1
General
- Dimensions (WxHxD) (extended)
- 326x315x43mm
- Weight
- 2.3 kg
- Fortification
- VESA Standard 75x75mm
- Color (Housing)
- Black
- Housing material
- Metal
- Power consumption
- 10 W
- Power supply
- 12VDC
- Energy efficiency class
- E
Parts supplied
- Scope of delivery
- manual,power cord,PSU 100~240VAC,IR remote controller,VGA cable,feet
Notes
- Remark
- NDAA compliance under Section 889
Main Features
- Professional 12" (30 cm) LCD monitor
- Industrial design built to run 24x7x365 continuously
- Maximum resolution 1920x1080 pixels
- LED Back Light
- Fast response time 5ms
- Perfect presentation through digital 3D filtering and noise reduction
- Different video inputs HDMI, VGA, Composite (loop-through input)
- HD analog multi signal input (TVI, AHD, CVI)
- Supply voltage: 12VDC
- Metal cabinet including stand
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manufacturer data sheet (german)
-
Manufacturer data sheet (english)
-

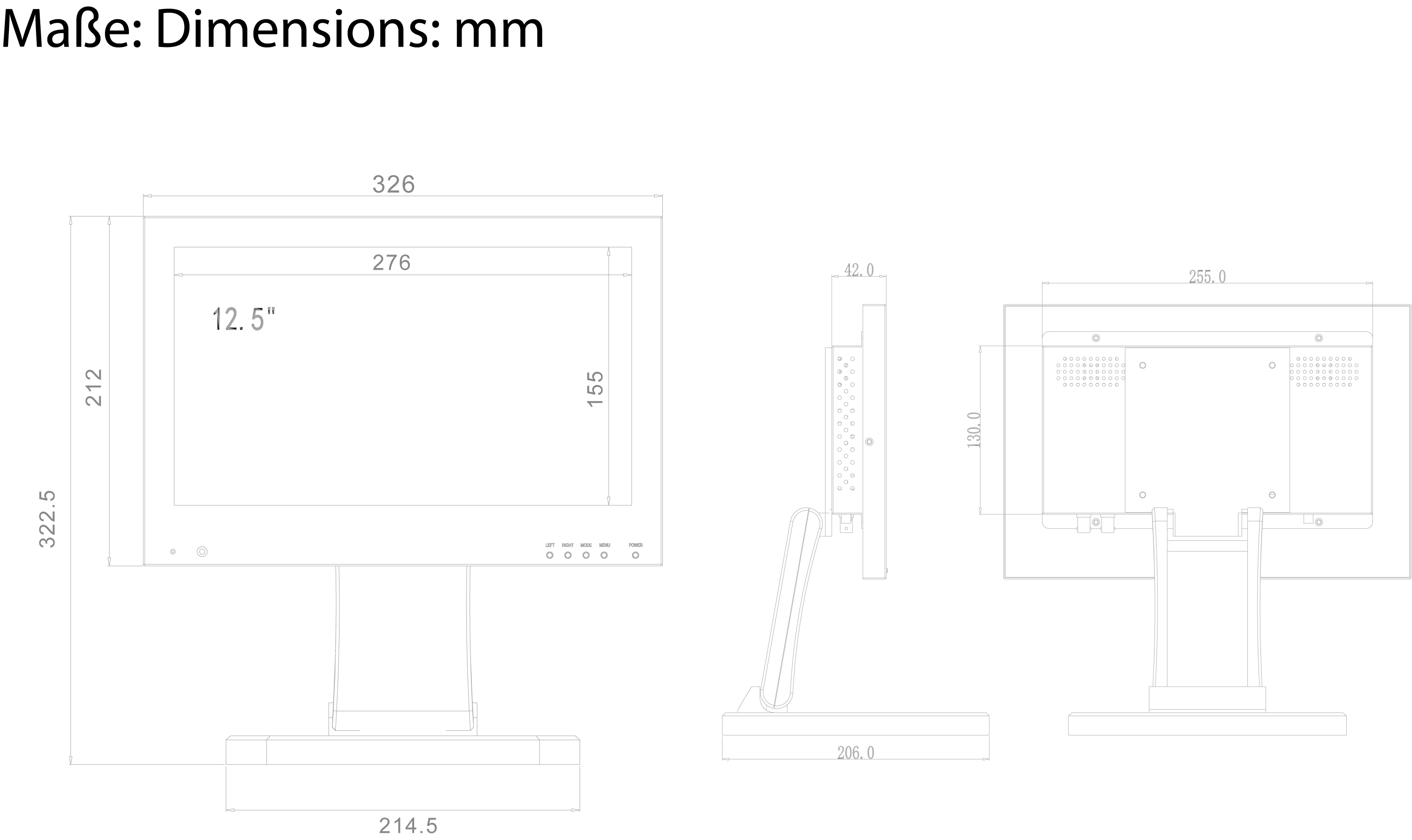

Technical Drawing
-
