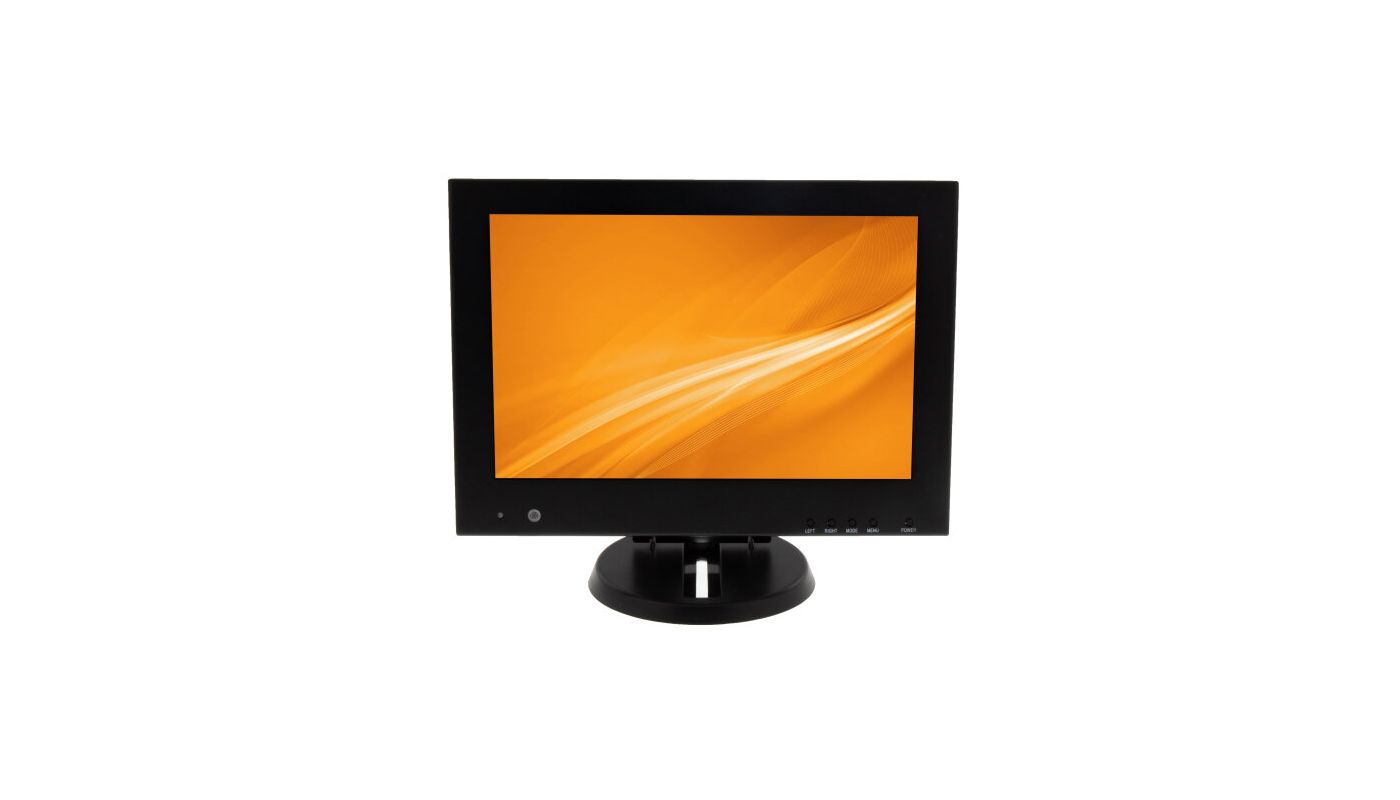

eneo VM-FHD10M

SKU 225695
10" (25cm) LCD Monitor FHD, 1920x1080, LED, HDMI, VGA, Composite
Data sheet

Specifications

Manufacturer order number
225695
Brand
eneo
Series
eneo Monitor

Video

Resolution (extended)
800x600,1024x768,1280x1024,1600x900,1920x1080
Maximum Image Resolution (HV)
1920x1080

Display

Display
Clear Display, Color TFT-LCD, Hard coating (3H)
Refresh rate
60 Hz
Aspect ratio
16:9
Contrast ratio (typical)
1000:1
Response time (typical)
5 ms
Brightness (typical)
350 cd/m²
Backlight
LED
Viewing Angle Vertical
178 °
Viewing Angle Horizontal
178 °
Screen diagonal (inches)
10 "
Screen diagonal (cm)
25 cm
Pixel error class
ISO 13406-2, Class 2

Functions

Comb filter
Yes
Menu languages
English, German

Interfaces / Inputs/ Outputs

Video Inputs
2x HDMI, AHD, Composite (FBAS), CVI, HD-TVI, VGA
Transmission Technology
HDCP 1.4, HDCP 2.2, HDMI 1.4a
Audio Inputs
1

General

Applications
24/7
Dimensions (WxHxD) (extended)
260x185x43mm
Weight
1.8 kg
Fortification
VESA Standard 75x75mm
Color (Housing)
Black
Housing material
Metal
Power consumption
10 W
Power supply
12VDC
Energy efficiency class
E

Parts supplied

Scope of delivery
manual,power cord,PSU 100~240VAC,IR remote controller,VGA cable,feet

Notes

Remark
NDAA compliance under Section 889

Main Features

  • Professional 10" (25 cm) LCD monitor
  • Industrial design built to run 24x7x365 continuously
  • Maximum resolution 1920x1080 pixels
  • LED Back Light
  • Fast response time 5ms
  • Perfect presentation through digital 3D filtering and noise reduction
  • Different video inputs HDMI, VGA, Composite
  • HD analog multi signal input (TVI, AHD, CVI)
  • Supply voltage: 12VDC
  • Metal cabinet including stand
