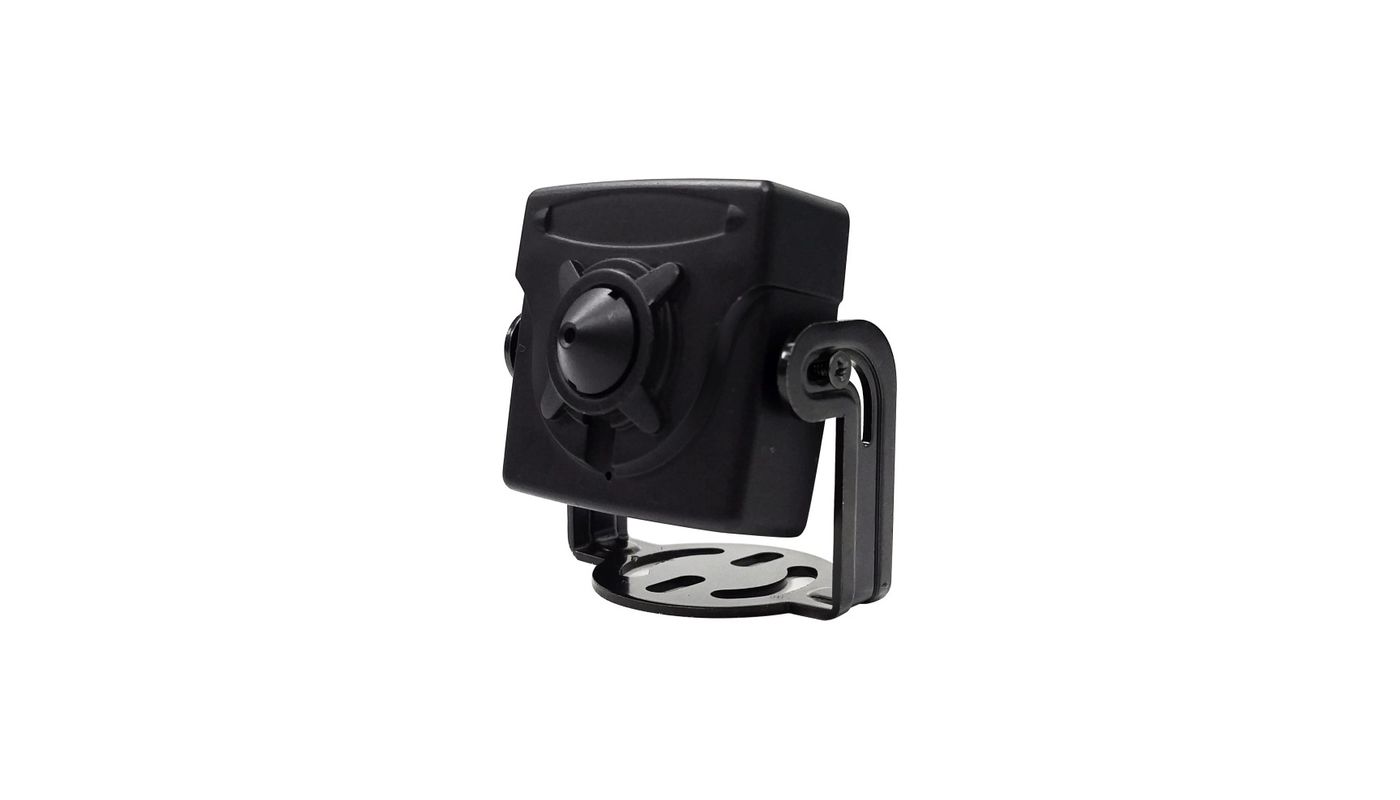

eneo MSM-42F0037MPB

SKU 243654
1/2.8" HD Board Camera, Colour, 1920x1080, 3.7mm, Pinhole, WDR, Housing, 12VDC
Data sheet

Specifications

Brand
eneo
EAN/GTIN
4260229841341
Manufacturer order number
243654
Series
eneo COAXIZE

Camera

Backlight compensation
Yes
Camera shape
Module
Chip size
1/2,8"
Day/night mode
Automatic,Day,Night,extern (Sensor)
Day/night switching
Switchable IR Filter (ICR)
Low Speed Shutter
Yes
Photosensitivity
0,2 Lux bei F2,3
Recording sensor
CMOS
Signal-to-noise ratio
50 dB
System
True Day&Night
White balance
Automatic,Preset,Manual,AUTOext

DORI

Detect (125px/m)
11 m
Identify (250px/m)
5 m
Perceiving (25px/m)
59 m
Watch (62px/m)
21 m

Lens

Focal length
3,7 mm
Horizontal angle of view
72°
Iris Control
No
Lens Type
Prime lens
Vertical angle of view
37°
Zoom Factor (Digital)
0

Video

Resolution (extended)
1920x1080,1280x720,704x576,720x480
Signal Format
AHD @ 2MP, Composite (FBAS), EX-SDI @ 2MP, HD-SDI @ 2MP, HD-TVI @ 2MP

Display

Image resolution max.
1920x1080

Functions

Digital Noise Reduction (DNR)
Yes
Menu languages
Chinese, English, French, German, Japanese, Korean
Motion detector
Yes

Interfaces / Inputs/ Outputs

Alarm inputs
0
Control Interfaces
Coaxitron (HD Protocol)
External connections
voltage input,1x SDI Signal (BNC),1x HD/SD Analog Signal (BNC)
Interface Protocols
UTC (HD Signal Format)
Number of alarm outputs
0
Video Outputs
AHD, Composite (FBAS)

General

Camera Type
Board Camera
Color (Housing)
black
Dimensions (WxHxD) (extended)
37x37,8x21,5mm
Housing material
Aluminium
Housing type
Inside
Mounting type
Ceiling, Wall
Power consumption
1.5 W
Power supply
12VDC
Temperature Range (Operating)
-10°C ~ +50°C,@ Luftfeuchtigkeit 20%-80% (nicht kondensierend)
Text overlay
available
Weight
0.11 kg
Wide Dynamic Range (WDR)
D-WDR

Parts supplied

Scope of delivery
Quick Installation Guide,2x mounting screws,OSD menu control board,video sub-output cable

Notes

Remark
NDAA compliance under Section 889

Additional Productinformation

Sony STARVIS 2

Improved low-light performance (especially with HDR)

STARVIS 2 offers significantly improved performance in low light, especially with high dynamic range (HDR). It has been specially optimised for backlit situations and night scenes with high contrast.



Higher dynamic range (High Dynamic Range)

STARVIS 2 achieves up to 88 dB real dynamic range (Single Exposure) according to Sony - that&039;s more than the original STARVIS. This helps to better display details in dark AND bright areas at the same time - without ‘burning out’ or ‘drowning out’ the image areas.



Uniform brightness across the image field

STARVIS 2 reduces the so-called vignetting effect (edge darkening) that can occur with BSI sensors. This means a more even image brightness, even in poorly lit conditions.



Better colour reproduction in low light

STARVIS 2 offers a more natural colour reproduction at night - colours appear less washed out or monochromatic. Particularly relevant for forensic applications (e.g. clothing, vehicles, skin tones).

Main Features

  • 1/2,8" 2 Megapixel SONY STARVIS 2 CMOS-Sensor
  • Super low light performance by Sony STARVIS 2 technology
  • Board Camera with rugged metal cabinet
  • Resolution max. 1920x1080 (Full HD)
  • Separate outputs for digital and multi-signal
  • Multisignal: HD-TVI, AHD, CVI and Composite selectable
  • Digital signal: EX-SDI, HD-SDI selectable
  • Pinhole lens 3.7mm
  • Electronic Day/Night function
  • ROI (Region of Interest) WDR mode
  • Integrated motion detector, defog, privacy zones
